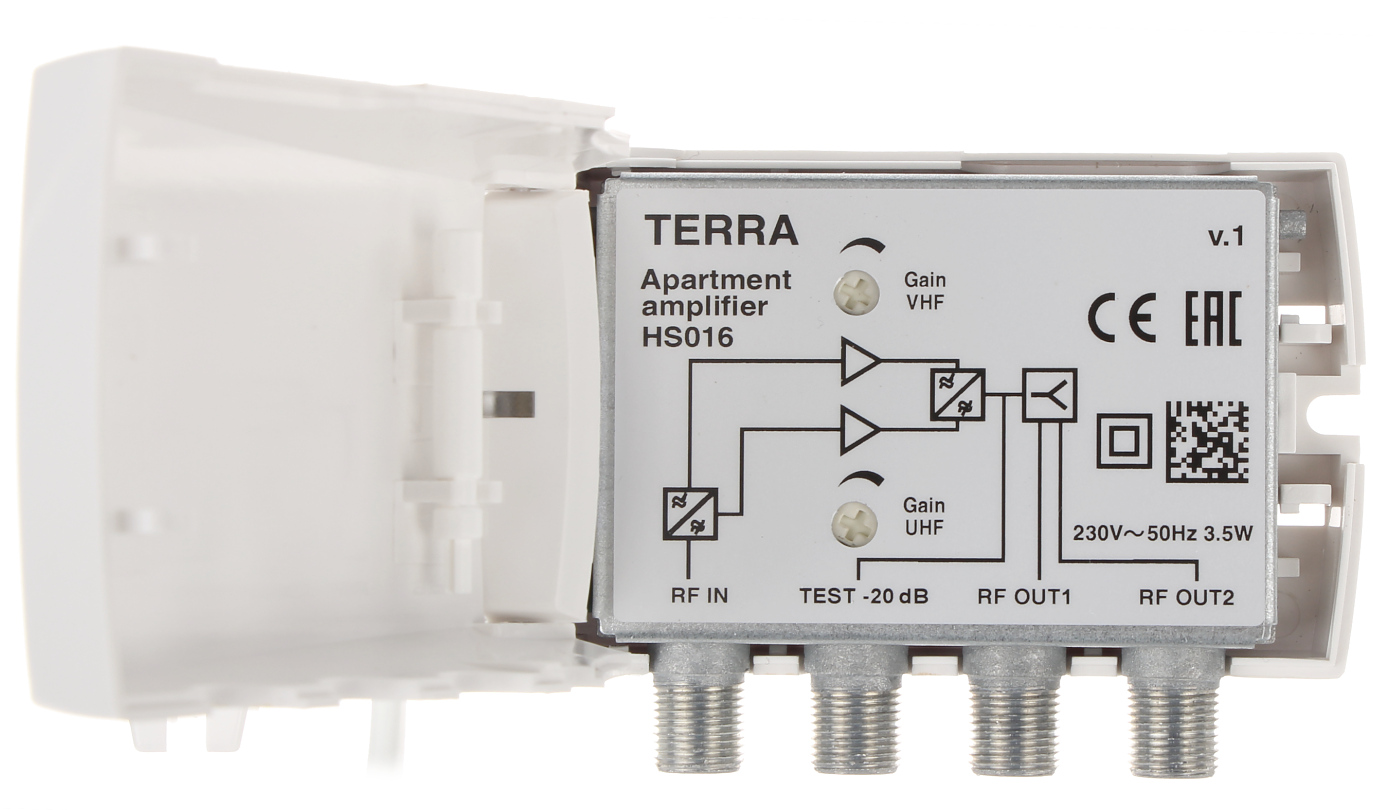

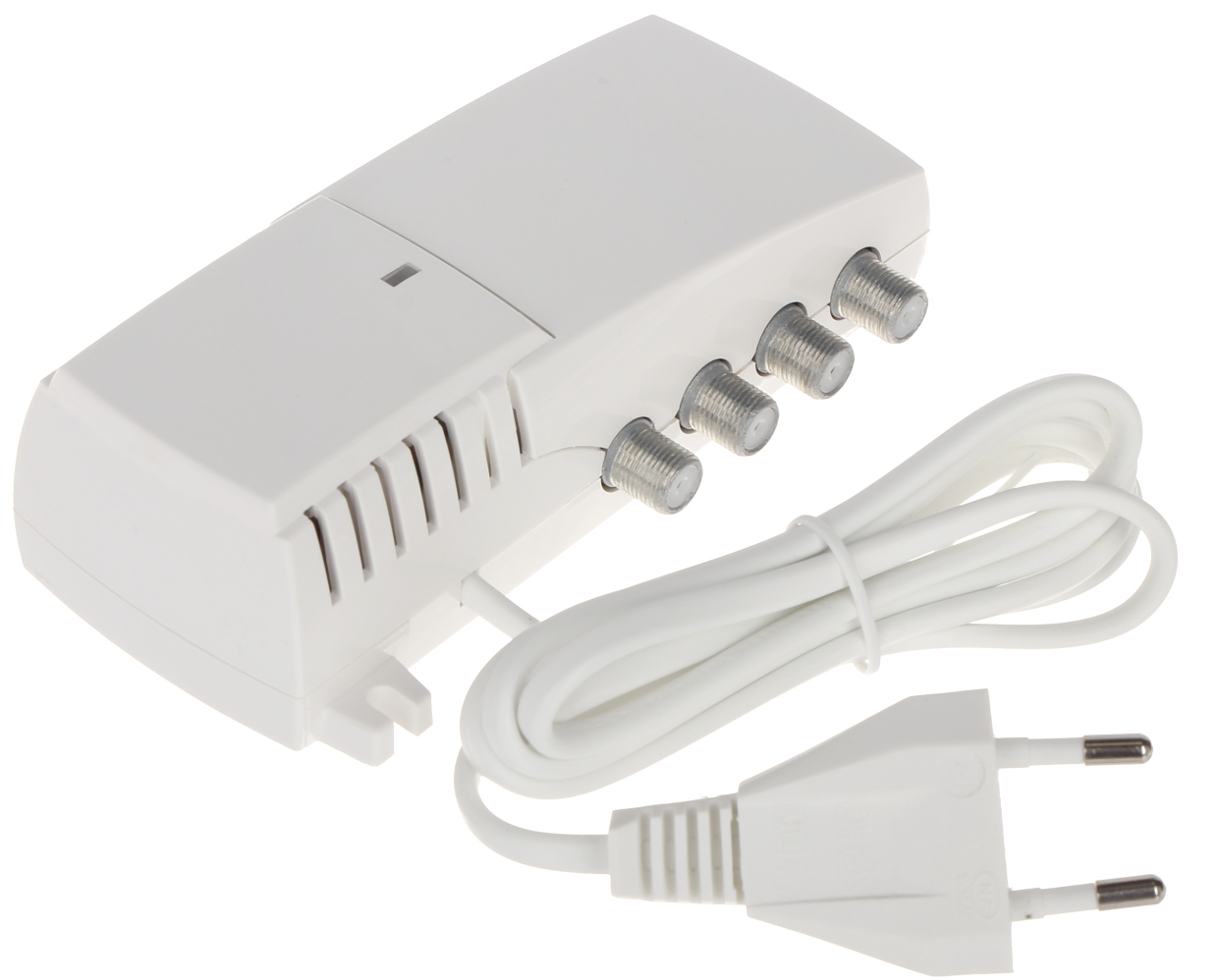

MULTIBAND AMPLIFIER HS-016 TERRA
Ole hyvä ja kirjaudu sisään, jotta voimme ilmoittaa sinulle vastauksesta
Frequency range: 47 MHz ... 300 MHz - VHF, 470 MHz ... 862 MHz - UHF ; Maximal output level IMD3=60 dB DIN45004B: 104 dBµV ;
| Frequency range: | 47 MHz ... 300 MHz - VHF , 470 MHz ... 862 MHz - UHF |
| Gain : | 20 dB ... 22 dB @ VHF 20 dB ... 22 dB @ UHF |
| Number of inputs/outputs: | 1 / 2 + 1 (1 x test: -20dB) |
| Gain adjustment: | 0 dB ... -15 dB @ VHF , 0 dB ... -12 dB @ UHF |
| Maximal output level IMD3=60 dB DIN45004B: | 104 dBµV |
| S/N ratio: | < 4.5 dB @ VHF < 3 dB @ UHF |
| Power supply: | 230 V AC |
| Power consumption: | ≤ 3.5 W |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.33 kg |
| Dimensions: | 133 x 63 x 39 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
