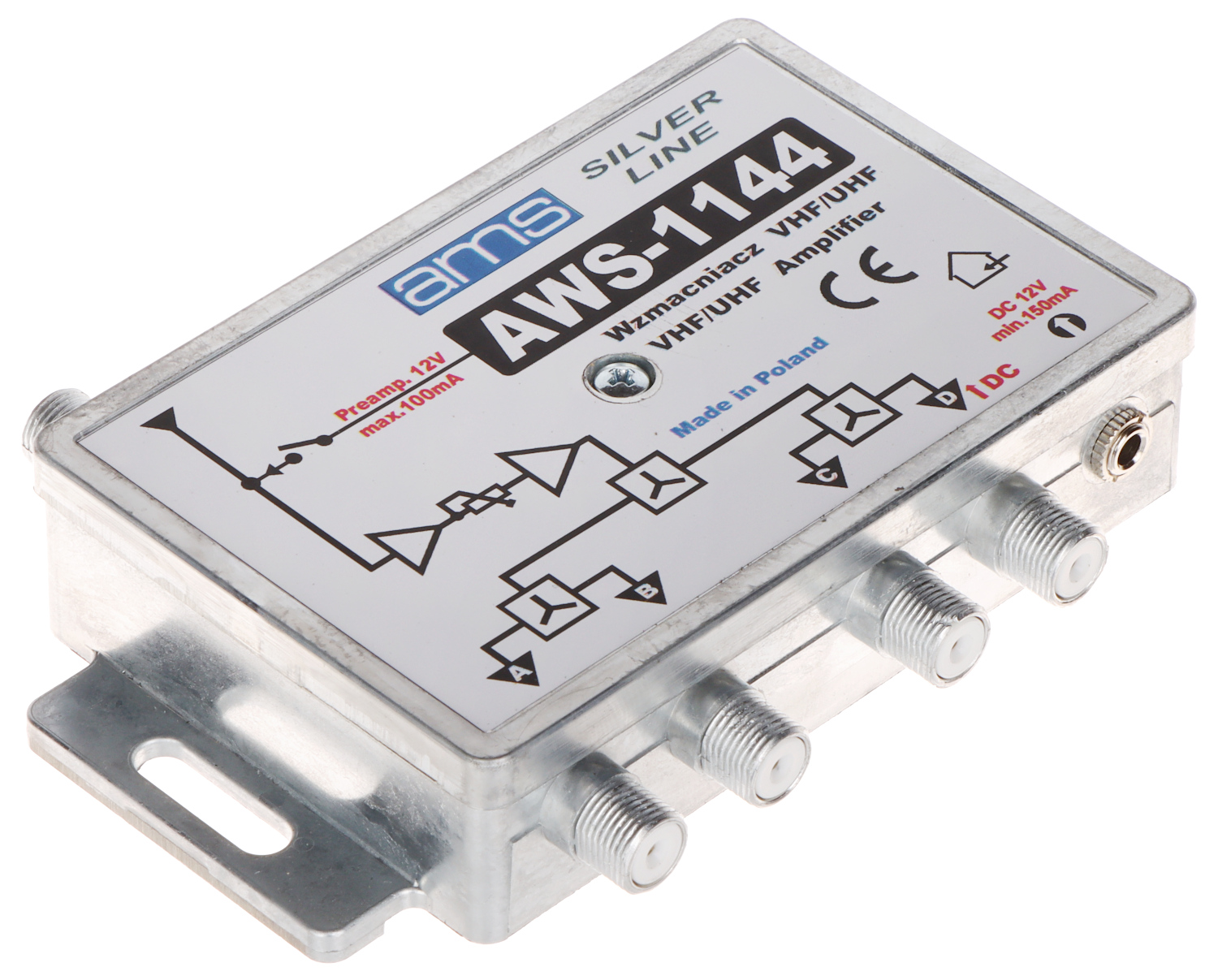

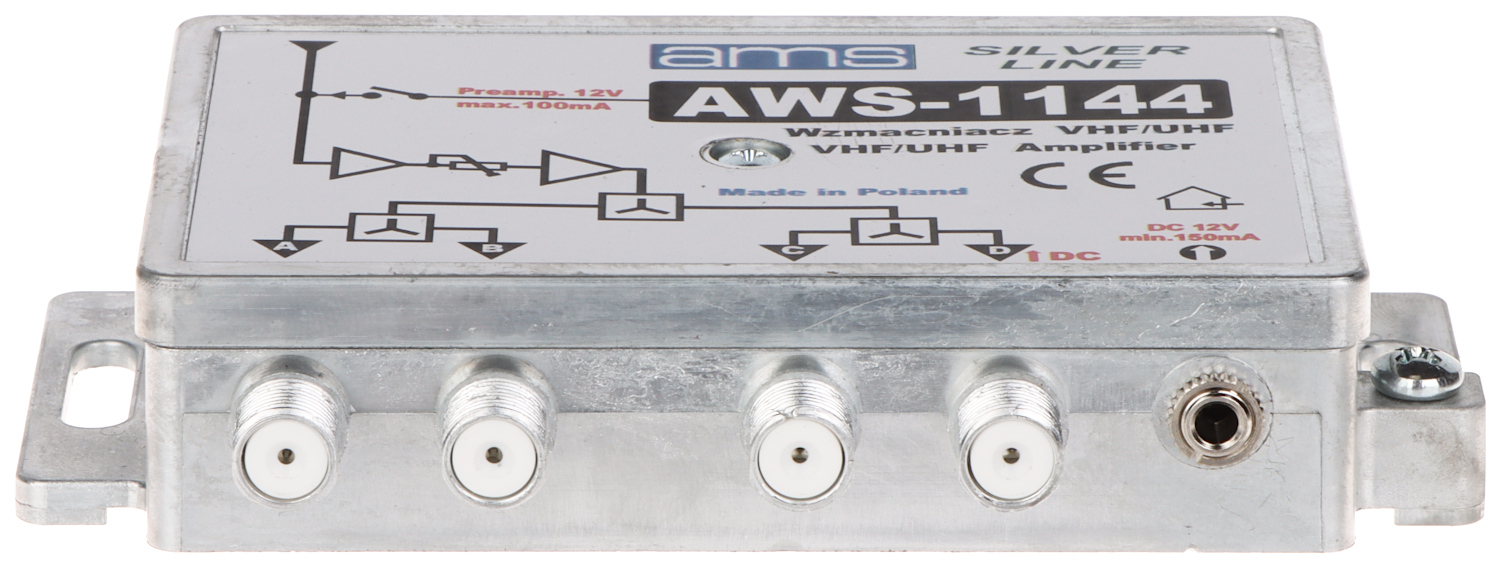

ANTENNA AMPLIFIER AWS-1144 AMS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 87 MHz ... 790 MHz ; Number of inputs/outputs: 1 / 4 ; Gain : 14 dB / 17 dB ;
| Frequency range: | 87 MHz ... 790 MHz |
| Number of inputs/outputs: | 1 / 4 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 14 dB / 17 dB |
| Gain adjustment: | 0 dB ... 10 dB |
| S/N ratio: | ≤ 4 dB |
| Maximum output level: | 100 dBµV |
| IMA3 60dB: | 94 dBµV |
| IMA2 60dB: | 81 dBµV |
| Return loss: | ≥ 10 dB |
| Pre-amplifiers powering: |  |
| Operation temp: | -25 °C ... 55 °C |
| Power supply: | 12 V DC / 300 mA (power adapter included) |
| Manufacturer / Brand: | AMS |
| Guarantee: | 2 years |
