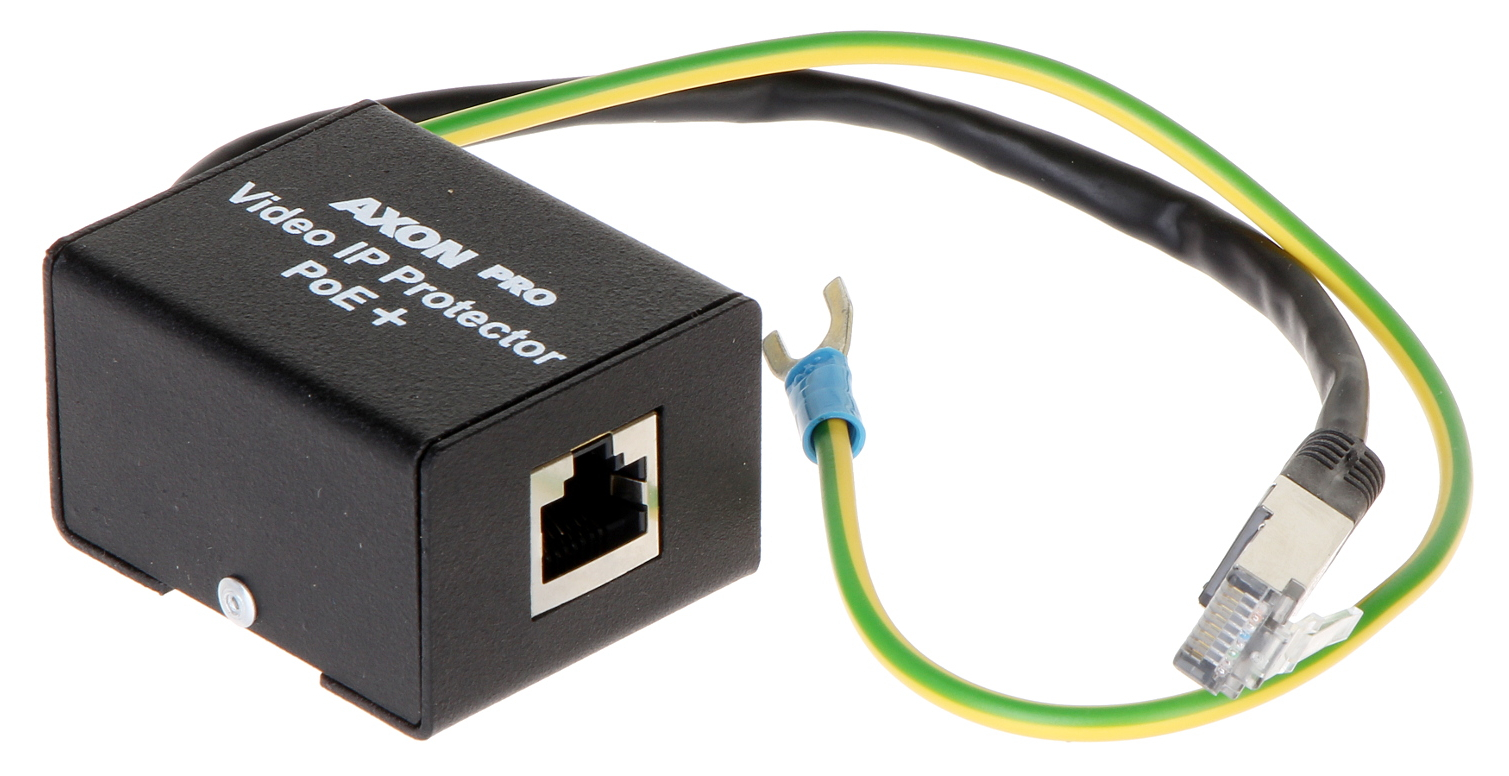

Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks and powered remotely in PoE+ technology - protects 4 pairs of UTP cable; Number of channels: 1 ; Rated voltage: 120 V ; Voltage protection level line-PG [C2]: ≤ 1000 V - 1.2/50 µs ; Nominal discharge current line-PG [C2]: 2 kA - 8/20 µs ;
| Number of channels: | 1 |
| Rated voltage: | 120 V |
| Maximal voltage: | 150 V |
| Nominal current: | 600 mA |
| Voltage protection level line-PG [C2]: | ≤ 1000 V - 1.2/50 µs |
| Nominal discharge current line-PG [C2]: | 2 kA - 8/20 µs |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Connectors type: | |
| Length of the cable: | 0.23 m STP |
| Length of grounding cable: | 0.29 m |
| Housing: | Metal, black |
| Weight: | 0.104 kg |
| Dimensions: | 50 x 40 x 30 mm |
| Guarantee: | 2 years |
