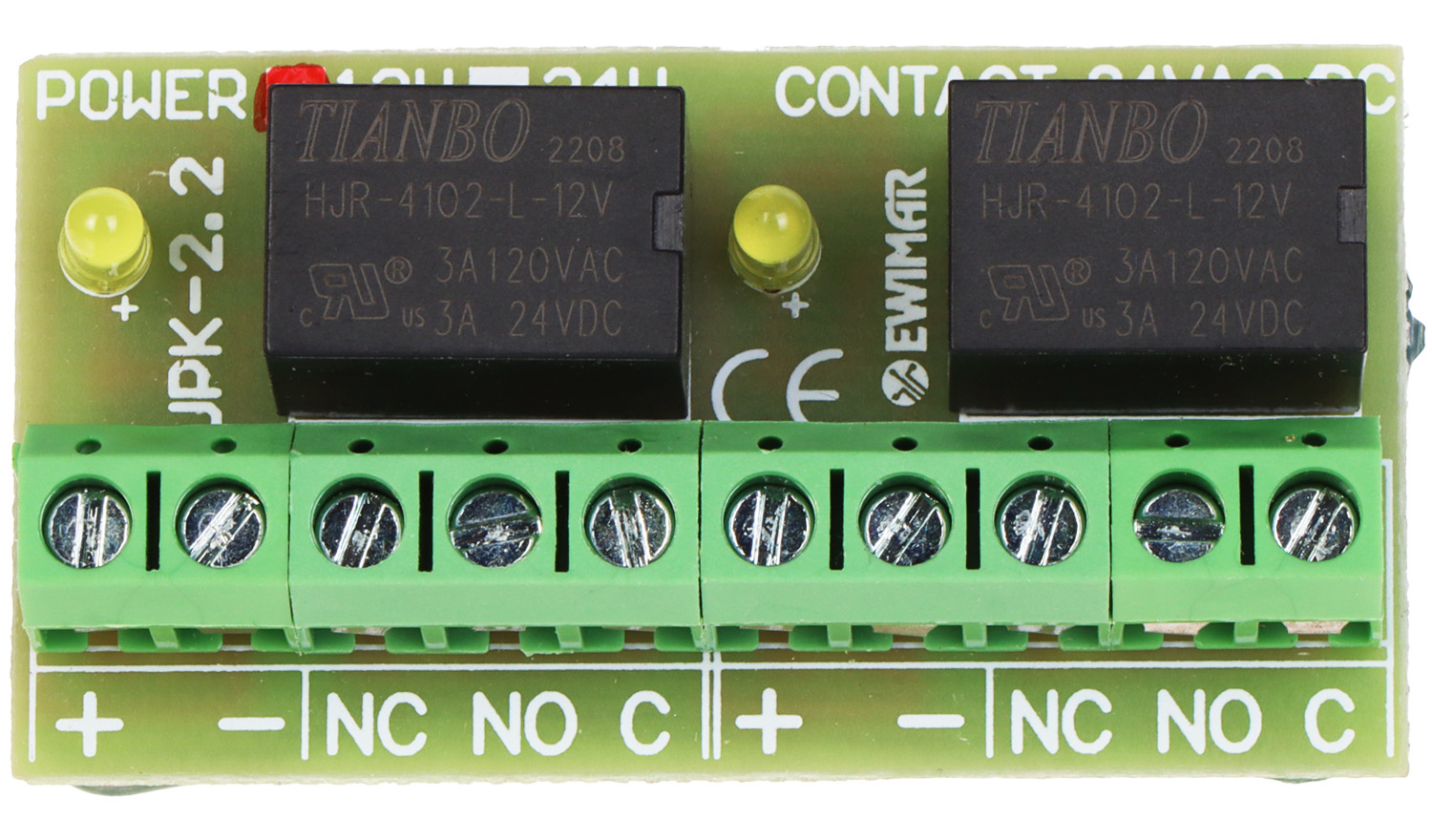

RELAY MODULE UPK-2.2 EWIMAR
Bitte melden Sie sich an, damit wir Sie über eine Antwort benachrichtigen können
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 12 V DC ; Relay maximal load: 1 A @ 30 V AC / DC ; Output: 2 x NO/NC ;
| Number of relay outputs: | 2 |
| Power supply: | 12 V DC |
| Current consumption: | 28 mA per each relay at voltage 12 V DC |
| Relay maximal load: | 1 A @ 30 V AC / DC (max) |
| Output: | 2 x NO/NC |
| Main features: | LED indication |
| Weight: | 0.02 kg |
| Dimensions: | 52 x 28 x 18 mm |
| Manufacturer / Brand: | EWIMAR |
| Guarantee: | 2 years |
