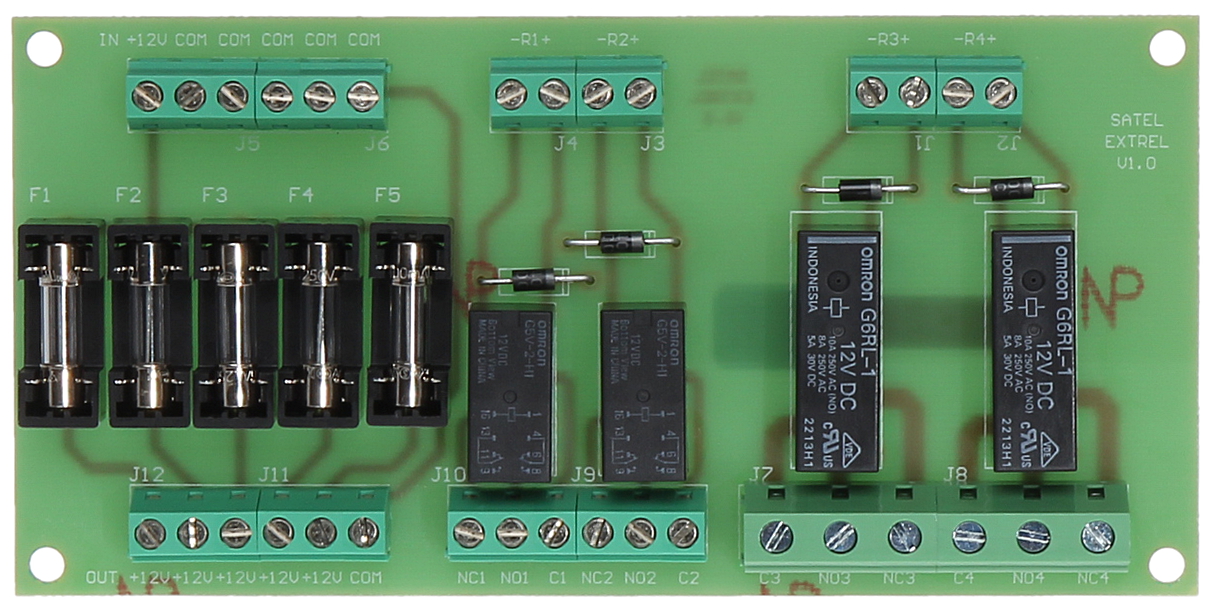

RELAY MODULE MP-1 SATEL
Ole hyvä ja kirjaudu sisään, jotta voimme ilmoittaa sinulle vastauksesta
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 4 ; Power supply: 12 V DC ; Relay maximal load: 2 x 4 A / 48 V DC/AC 2 x 8 A / 250 V DC / 400 V AC ; Output: 4x NO/NC ;
| Number of relay outputs: | 4 |
| Power supply: | 12 V DC |
| Relay maximal load: | 2 x 4 A / 48 V DC/AC 2 x 8 A / 250 V DC / 400 V AC |
| Output: | 4x NO/NC |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.095 kg |
| Dimensions: | 140 x 69 x 18 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
