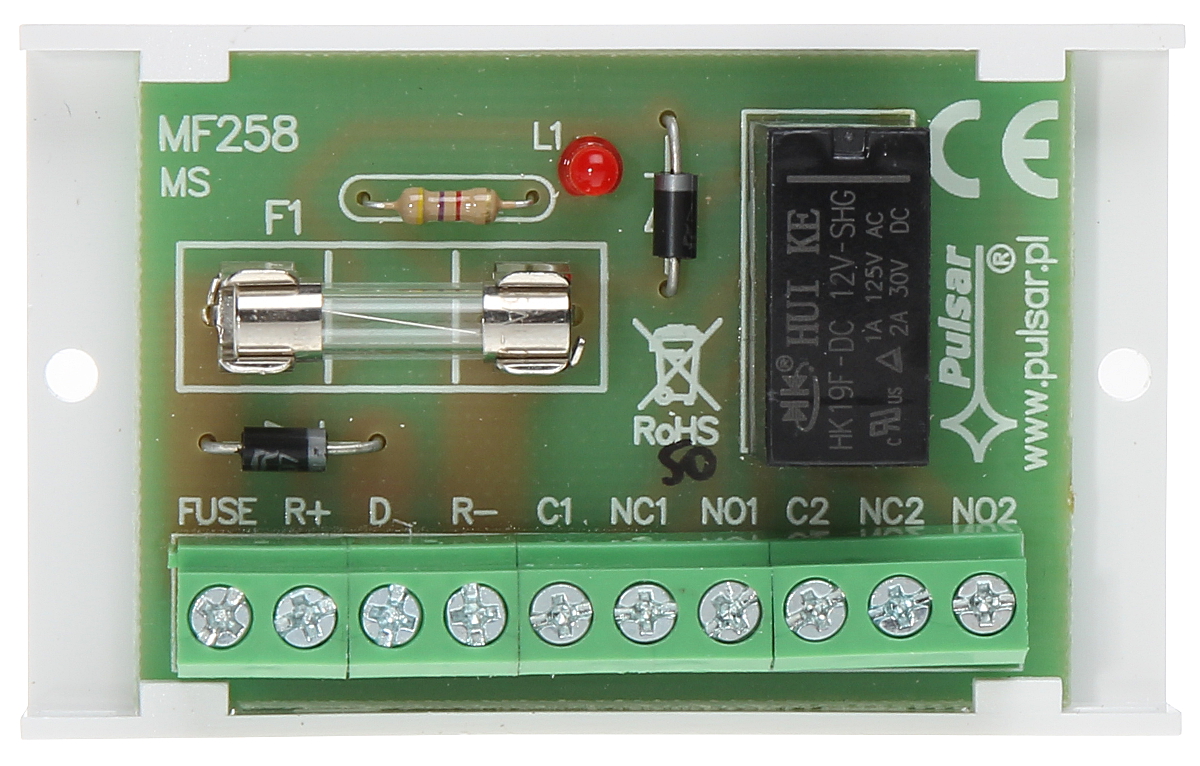

RELAY MODULE AWZ-511
Accedi in modo che possiamo avvisarti di una risposta
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 2 A (max) 30 V DC / 50 V AC ; Output: 2 x NO/NC ;
| Number of relay outputs: | 2 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 33 mA @ 12 V DC |
| Relay maximal load: | 2 A (max) 30 V DC / 50 V AC (max) |
| Output: | 2 x NO/NC |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.03 kg |
| Dimensions: | 70 x 43 x 20 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
