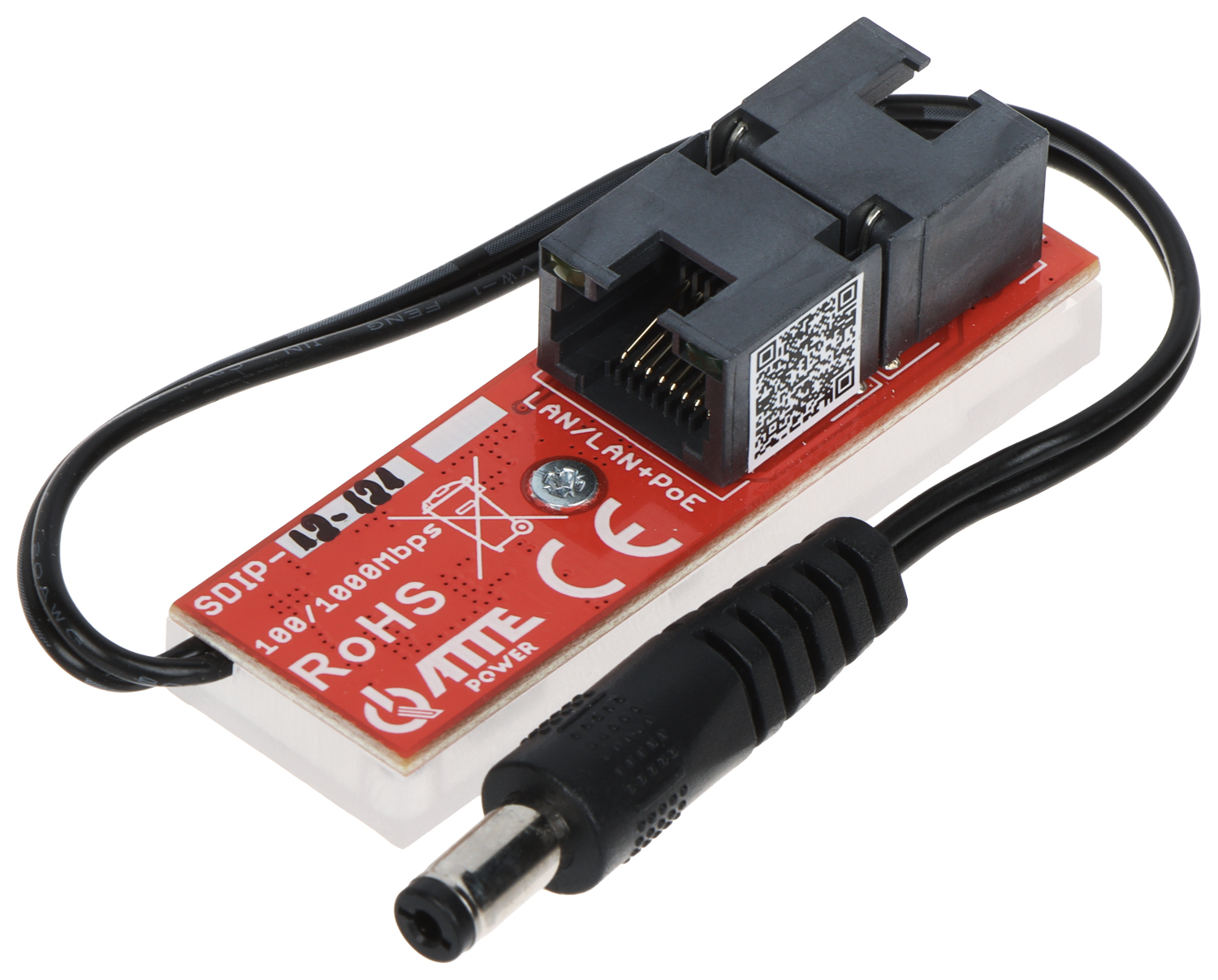

POE ADAPTER SDIP-12-121 ATTE

21.46
(Including tax 21%)
SDIP-12-121
16 item(s)
+

Minimum quantity for "POE ADAPTER SDIP-12-121 ATTE" is 1.

The device allows us to power devices with a nominal voltage of 12V using PoE 802.3 af or PoE PASSIVE 35-56V; At the RJ45 output, the device does not pass PoE power only the LAN transmission itself; Input voltage: 35 ... 56 V DC ;
Output power: max. 12 W (total)
Number of inputs: 1 pcs RJ-45
Input voltage: 35  ... 56 V DC - PoE
Output voltage: 12 V DC - 2.1/5.5 mm plug on the cable
Output current: max. 1 A @ 12 V DC
LED indicators:
  • DC output voltage presence indication - DC OUT
  • Power supply PoE - RJ-45 port
  • Main features:
  • LAN ports - 10/100/1000 Mbps
  • Compliance with PoE (802.3af), Passive PoE

  • PoE IN ("+/-": 1, 2 pins; "+/-": 3, 6 pins) or ("+/-": 4, 5 pins; "+/-": 7, 8 pins)
  • "Index of Protection" : IP20
  • Protections:
  • Overcurrent (overload) - automatic return to normal operation after the failure has ceased : 2 A
  • Overvoltage : DC OUT
  • Overvoltage
  • Housing: Plastic (polycarbonate)
    Operation temp: -25 °C ... 50 °C
    Weight: 0.02 kg
    Dimensions:
  • 63  x 20  x 19 mm
  • 15 cm (cable length)
  • Manufacturer / Brand: ATTE
    Guarantee: 3 years
