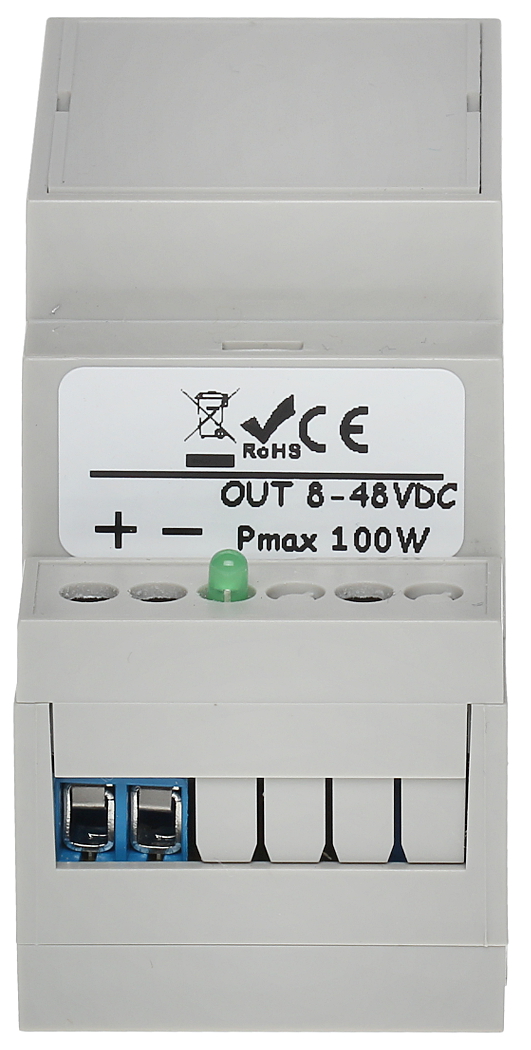

CONVERTER MODULE PZU-4810-D2 DC/DC
Please sign in so that we can notify you about a reply
Type: Increasing the voltage, DC/DC ; Number of inputs: 1 ; Number of outputs: 1 ; Power voltage: 8 ... 36 V DC ; Output voltage: 8 ... 48 V DC ; Output current: 5 A (max) ; Power: 100 W (max) ;
| Type: | Increasing the voltage, DC/DC |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Power voltage: | 8 ... 36 V DC |
| Output voltage: | 8 ... 48 V DC |
| Output voltage adjustment: | Multi-turn precision potentiometer adjustment (27 rotations) |
| Output current: | 5 A (max) |
| Power: | |
| Minimal voltage difference between out and in: | 0 V |
| Protections: | |
| Main features: | |
| Application: | |
| Weight: | 0.12 kg |
| Dimensions: | 37 x 97 x 58 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
