PATCH PANEL POE-8/R10

51.00
(Inclusa tassa)
POE-8/R10
3 Articolo(i)
+

La quantità minima per "PATCH PANEL POE-8/R10" è 1.

Acquista adesso con 1-click

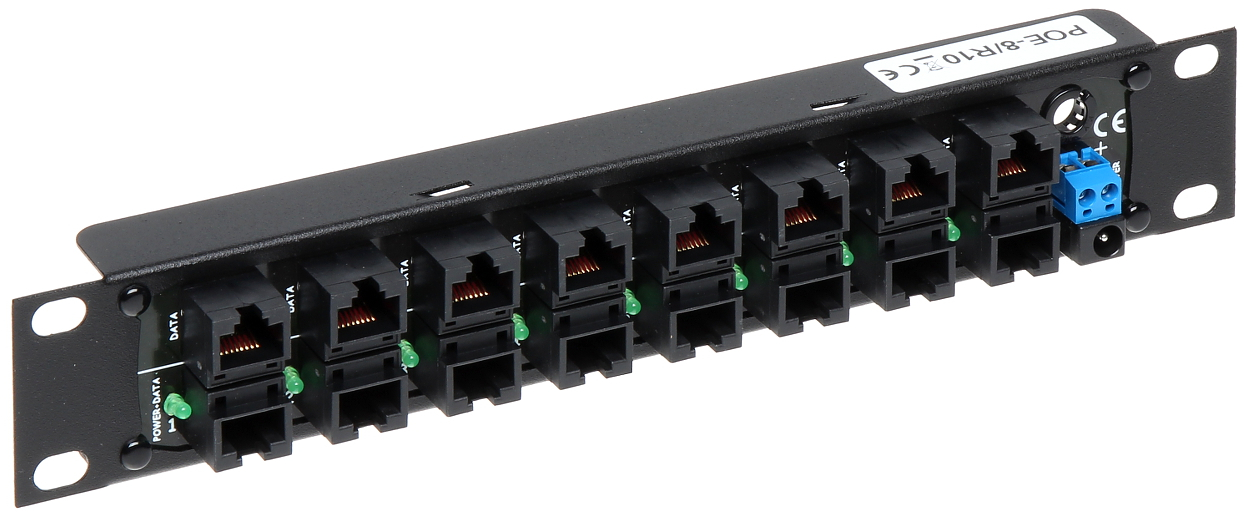

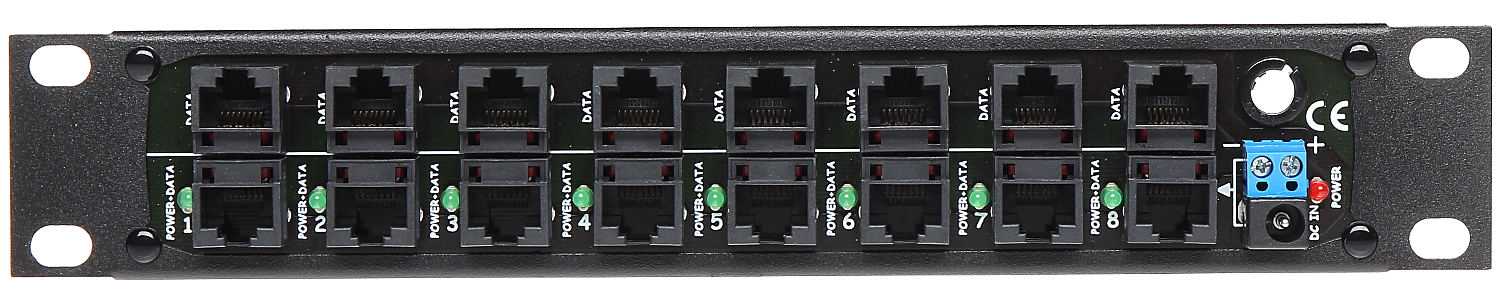

The POE-8/R10 panel is a passive device used to supply power via UTP cables to terminal devices equipped with PoE ports; Number of inputs: 8 pcs (RJ-45) ;
Output voltage: max. 60 V
Number of inputs: 8 pcs (RJ-45)
Number of outputs: 8 pcs (RJ-45)
Maximal output current: 550 mA / Output

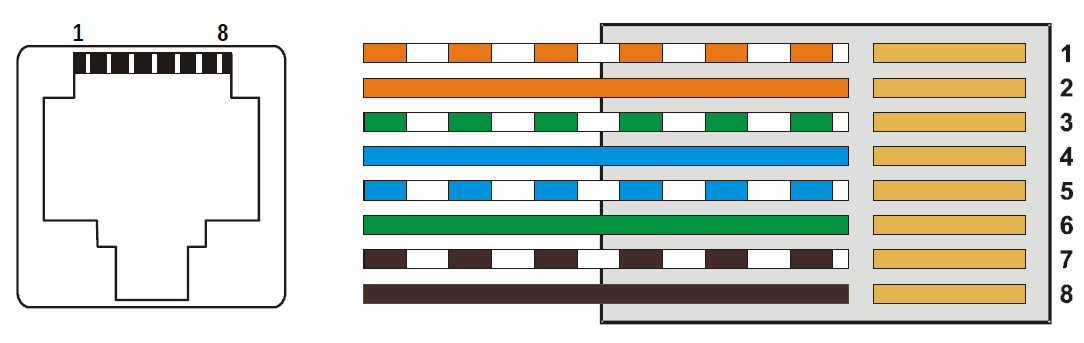

Main features: Pin numbers for RJ-45 connector
  • DATA 1, 2 and 3, 6
  • Power supply 4, 5 (+) and 7, 8 (-)
  • Supported data rates 10 / 100 Mbps
  • Maximal load for single port 550 mA
  • Protections:
  • Short-circuit
  • Overload
  • LED indicators: Power supply
    Housing: 1 U Rack 10"
    Operation temp. / Relative humidity: -10 °C ... 55 °C / < 95 %
    Weight: 0.175 kg
    Dimensions: 256  x 44  x 35 mm
    Manufacturer / Brand: DELTA
    Guarantee: 3 years
