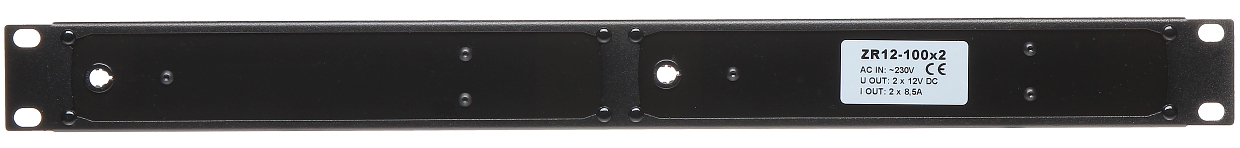

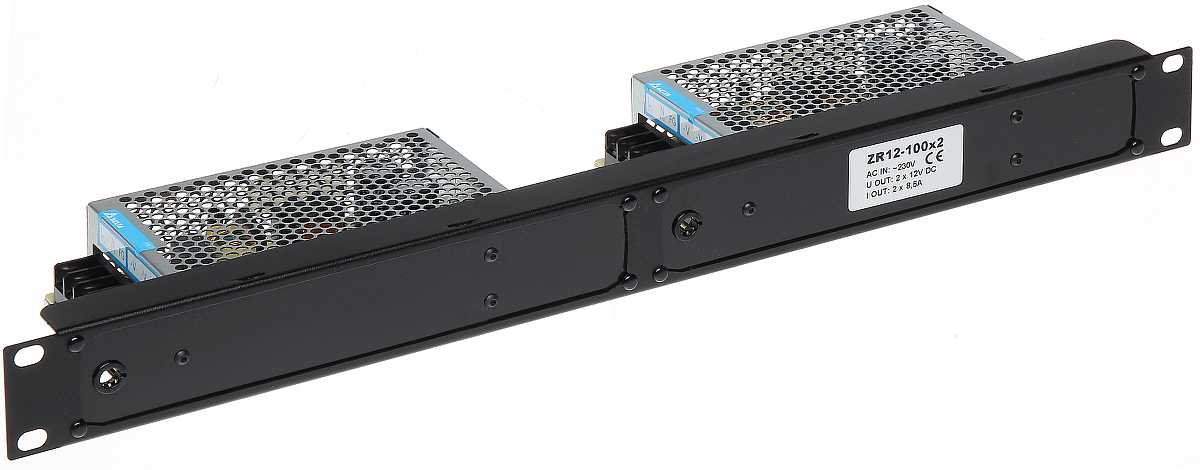

POWER SUPPLY ADAPTER RACK ZR12-100X2 2 x 12 V DC 2 x 8.5 A
Please sign in so that we can notify you about a reply
Adapter type: Switching - 2 pcs ; Power voltage: 90 V ... 132 V AC, 180 V ... 264 V AC ; Output voltage: 2 x 12 V DC ; Maximal load: 2 x 8.5 A ; MTBF (Mean Time Between Faults): > 700000 h ; Housing type: 1 U Rack 19" ;

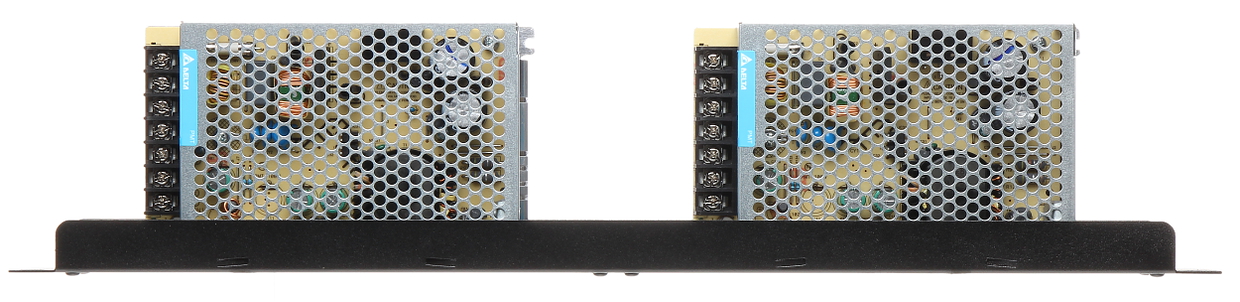

| Adapter type: | Switching - 2 pcs |

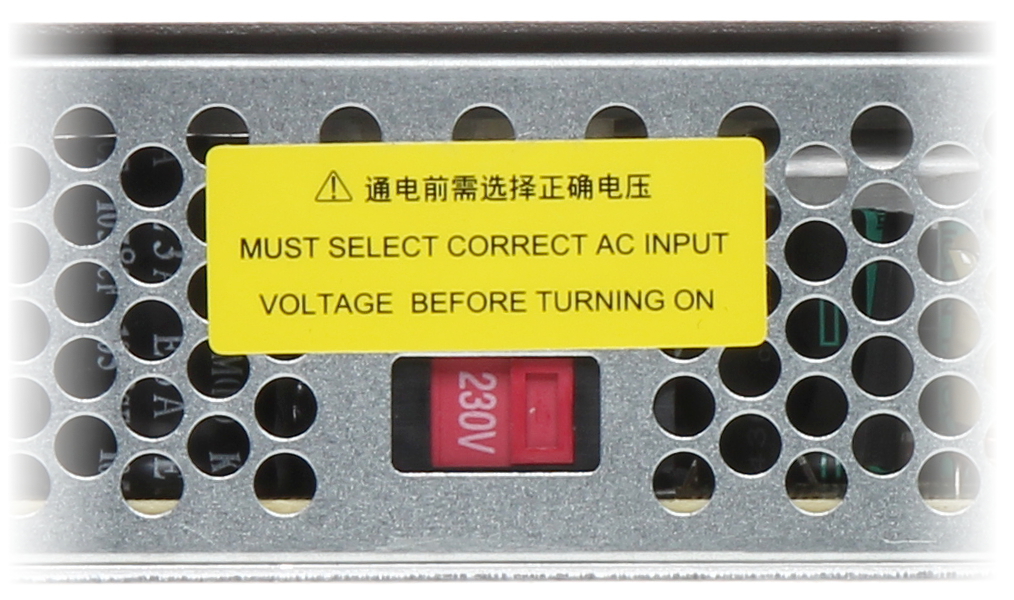

| Power voltage: | selectable by switch |
| Voltage frequency range: | 47 ... 63 Hz |
| Output power: | 2 x 102 W |
| Output voltage: | 2 x 12 V DC |
| Output voltage adjustment: | 11.4 V ... 13.2 V DC |
| Maximal load: | 2 x 8.5 A |
| Efficiency: | 89 % |
| MTBF (Mean Time Between Faults): | > 700000 h - Telcordia SR-332 |
| Protections: | |
| Manufacturer / Brand: | DELTA |
| Housing type: | 1 U Rack 19" |
| Operation temp. / Relative humidity: | -10 °C ... 70 °C / 10 % ... 95 % |
| Weight: | 0.96 kg |
| Dimensions: | 483 x 45 x 100 mm |
| Guarantee: | 5 years |
