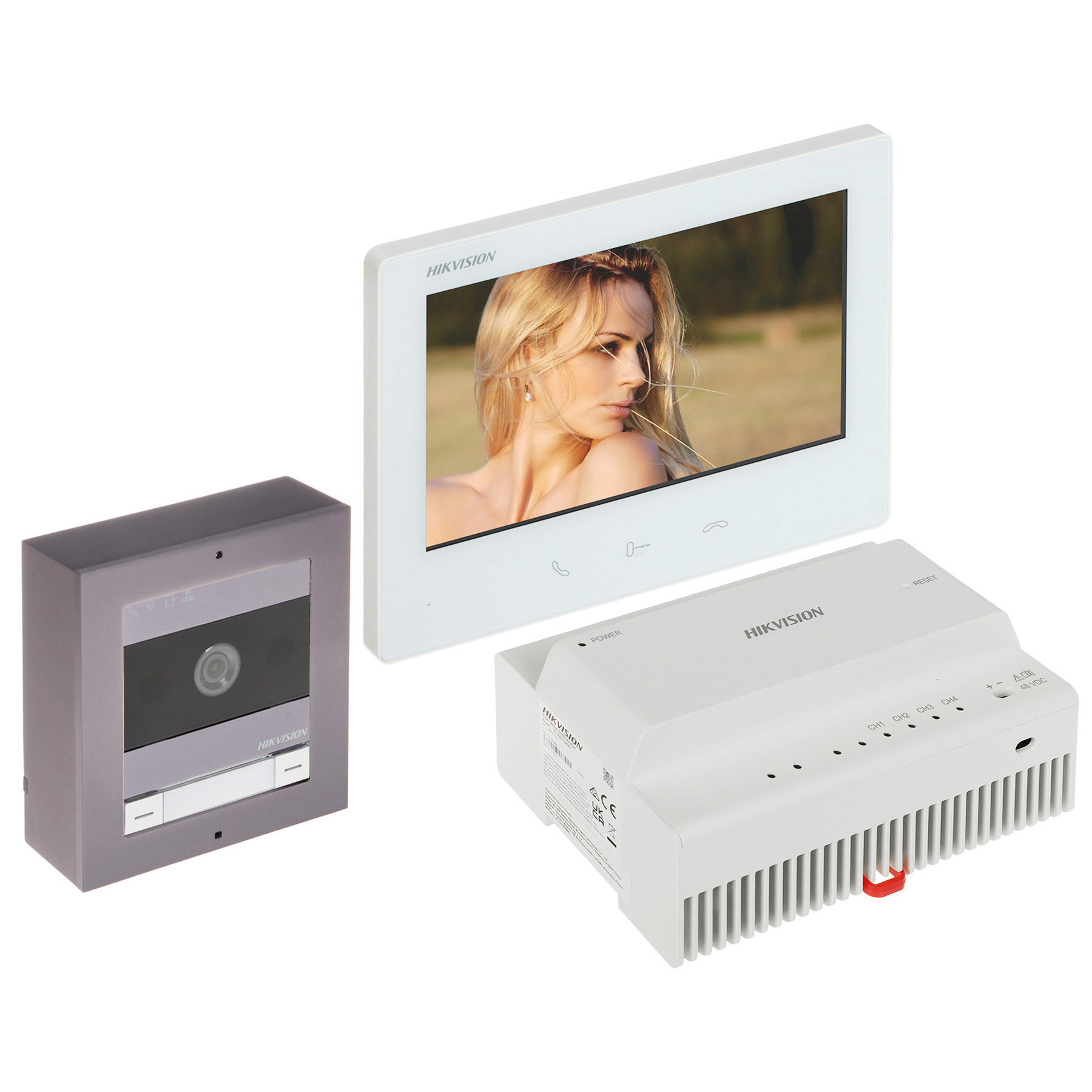

Two-wire HIKVISION video doorphone system with 7" touch monitor and controller equipped with 4 2-wire buses; Video Doorphone is mounted in a surface-mounted housing; Doorbell button: 2 pcs ; Camera view angle: 133 ° ; IR illuminator; Alarm inputs: 2 pcs ; Relay outputs: 1 x NO/NC ; Main features: Tamper detection - removing from mounting surface, Lock control ; Shield: 7 " - capacitive touch screen ;
| Compatibility: | HIKVISION 2-wire - EY series |
| Doorbell button: | 2 pcs |
| Sensor: | 2 Mpx |
| Camera view angle: | 133 ° |
| Image compression method: | H.264 |
| IR illuminator: |  |
| Alarm inputs: | 2 pcs |
| Relay outputs: | 1 x NO/NC |
| Main features: | |
| Power supply: | |
| Power consumption: | < 6 W |
| Operation temp: | -40 °C ... 60 °C |
| Housing: | Metal |
| Color: | Black |
| "Index of Protection": | IP65 |
| Mechanical protection class: | IK10 |
| Weight: | 0.28 kg |
| Dimensions: | 100 x 98 x 35 mm |
INDOOR PANEL:
| Compatibility: | Hikvision 2-wire modular video doorphones - EY series |
| Shield: | 7 " - capacitive touch screen |
| Resolution: | 1024 x 600 |
| Internal memory: | 128 MB (built-in) |
| Main features: | |
| Controlling: | Touch control keys + capacitive touch screen |
| Default administrator password: |  The administrator password should be set at the first start |
| Default password for securing the zone: | |
| Alarm inputs: | 1 |
| Alarm outputs: | |
| Power supply: | 48 V DC - HIKVISION 2-wire |
| Power consumption: | ≤ 5 W |
| Color: | White + Silver |
| Operation temp: | -10 °C ... 50 °C |
| Weight: | 0.35 kg |
| Dimensions: | 190 x 138 x 20 mm |
ENCLOSURE:
| Assembly: | Surface |
| Number of mounted modules: | 1 pcs |
| Material: | Aluminum |
| Application: | DS-KD-xx |
| Color: | Graphite |
| Weight: | 0.22 kg |
| External dimensions: | 117 x 107 x 37 mm |
Switch:
| Number of ports: | 4 x HIKVISION 2-wire |
| Compatibility: | HIKVISION 2-wire - EY series |
| Main features: | DIN, TS-35 rail mounting |
| Power supply: | 48 V DC |
| Housing: | Plastic |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.25 kg |
| Dimensions: | 144 x 90 x 66 mm |
General information:
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 305305358 |
| Guarantee: | 3 years |
Brand:
Hikvision
