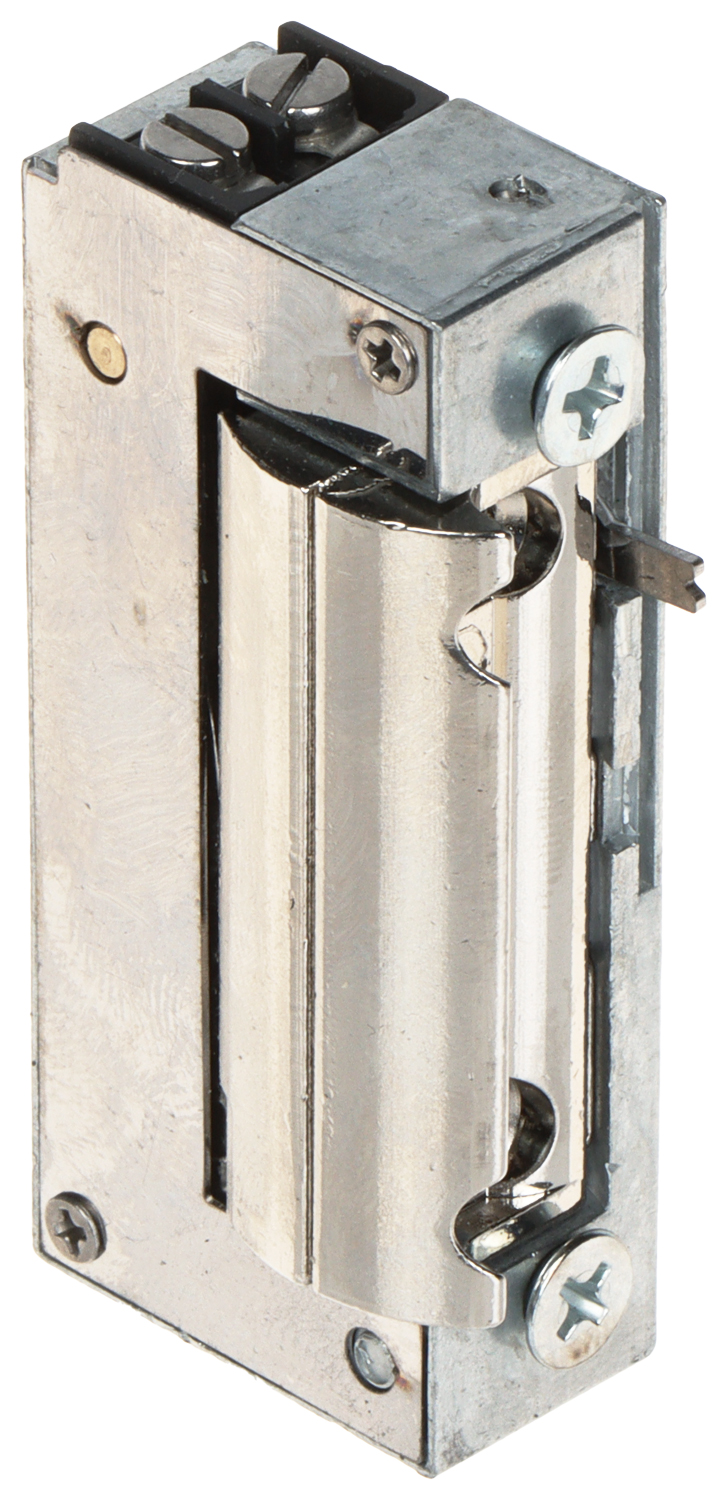

ELECTRIC STRIKE XS12UPW Hartte BIRA
Please sign in so that we can notify you about a reply
Rated voltage: 10 ... 14 V AC/DC ; Application: right-side door / left-side door ; Ratched lock: Ability to release the lock permanently ; Memory function; Clearance adjustment: 3.5 mm ; Main features: Narrow profile : 16.2 mm, Radial shape of the latch ;
| Rated voltage: | 10 ... 14 V AC/DC |
| Current consumption: | 480 mA @ 12 V AC 680 mA @ 12 V DC |
| Application: | right-side door / left-side door |
| Ratched lock: | Ability to release the lock permanently |
| Memory function: |  |
| Reverse action: |  |
| Clearance adjustment: | 3.5 mm |
| Allowable load of the door impacting the lock: | 3000 N |
| Allowable uninterrupted operation time: | |
| Main features: | |
| Weight: | 0.136 kg |
| Dimensions: | 16.2 x 28 x 67 mm |
| Manufacturer / Brand: | BIRA |
| Guarantee: | 2 years |
