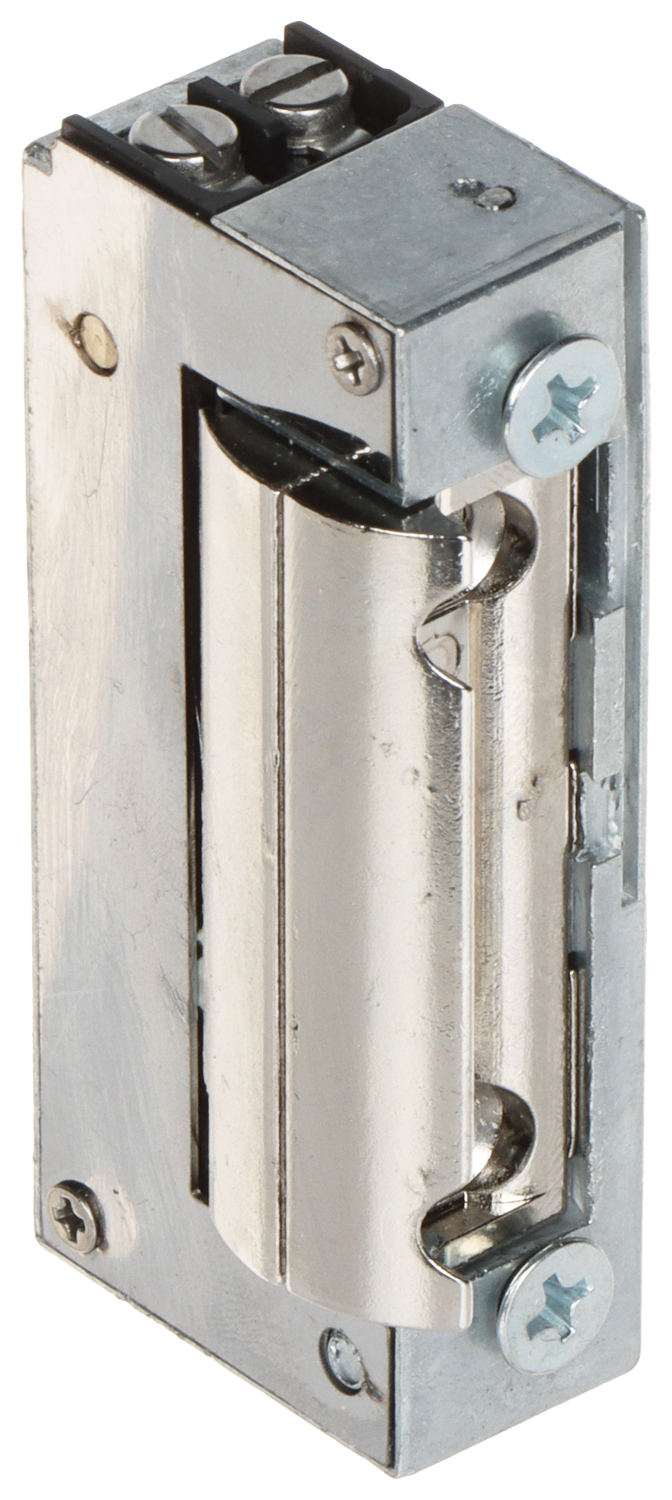

ELECTRIC STRIKE XS12U-B Hartte BIRA

27.57
(Including tax 21%)
XS12U-B
38 item(s)
+

Minimum quantity for "ELECTRIC STRIKE XS12U-B Hartte BIRA" is 1.

Rated voltage: 10 ... 14 V AC/DC ; Application: right-side door / left-side door - for doors with lock latch pressing on electric strikes ; Clearance adjustment: 3.5 mm ; Main features: Narrow profile : 16.2 mm, Strengthen spring, Radial shape of the latch ;
Rated voltage: 10  ... 14 V AC/DC
Current consumption: 480 mA @ 12 V AC
680 mA @ 12 V DC
Application: right-side door / left-side door - for doors with lock latch pressing on electric strikes
Ratched lock:
Memory function:
Reverse action:
Clearance adjustment: 3.5 mm
Allowable load of the door impacting the lock: 3000 N
Allowable uninterrupted operation time:
Main features:
  • Symmetrical housing
  • Narrow profile : 16.2 mm,
  • Strengthen spring,
  • Operation mode : NC
  • Resistance : 17.6 Ω
  • Number of opening cycles : 200000
  • Radial shape of the latch - when opening the latch is not going beyond the outline of electric strike
  • Weight: 0.136 kg
    Dimensions: 16.2  x 28  x 67 mm
    Manufacturer / Brand: BIRA
    Guarantee: 2 years
