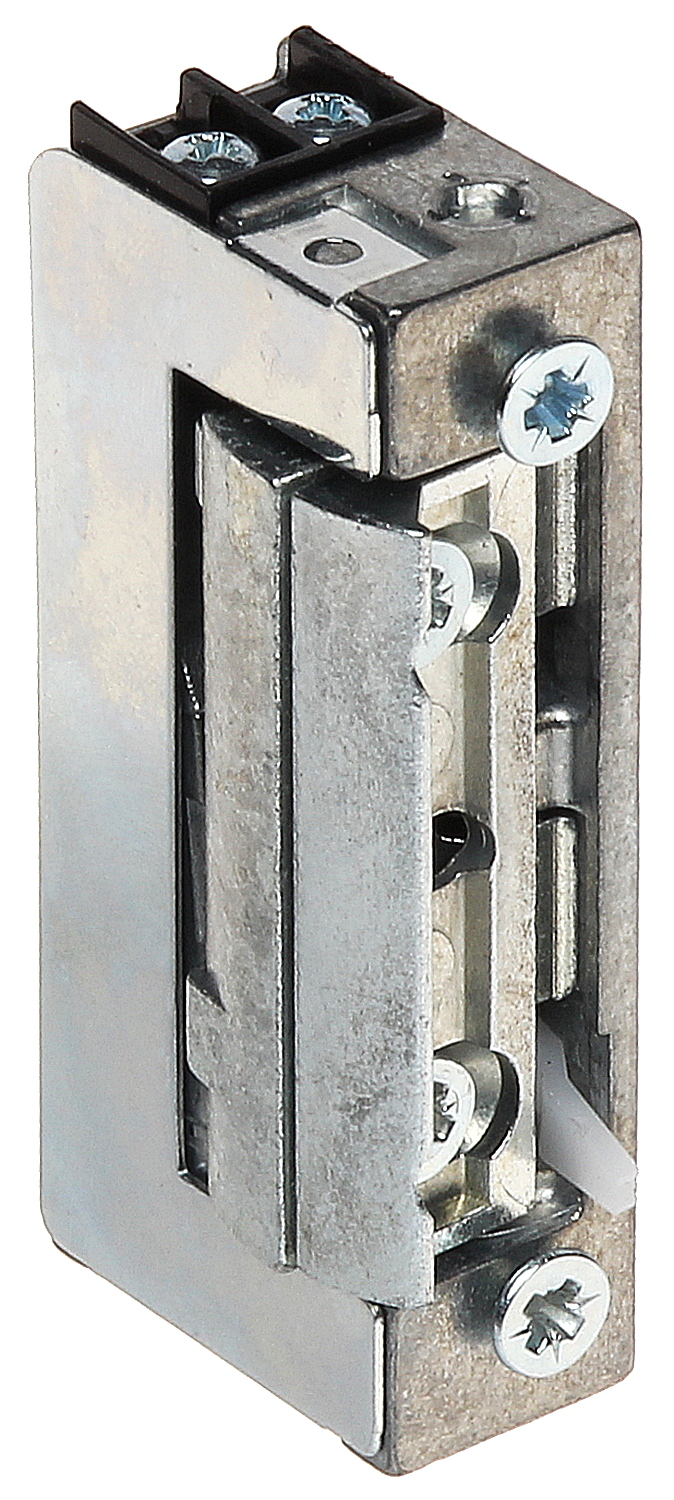

ELECTRIC STRIKE R5-12.60
Please sign in so that we can notify you about a reply
Rated voltage: 10 V ± 2 V AC/DC ; Application: right-side door / left-side door ; Ratched lock: Ability to release the lock permanently ; Memory function; Clearance adjustment;
| Rated voltage: | 10 V ± 2 V AC/DC |
| Current consumption: | 500 mA AC / 600 mA DC |
| Application: | right-side door / left-side door |
| Ratched lock: | Ability to release the lock permanently |
| Memory function: |  |
| Reverse action: |  |
| Clearance adjustment: | |
| Allowable thrust on the door at ratchet release: | 30 N |
| Allowable load of the door impacting the lock: | 3000 N |
| Allowable uninterrupted operation time: | 30 minutes |
| Weight: | 0.13 kg |
| Dimensions: | 19.5 x 32 x 68 mm |
| Guarantee: | 2 years |
