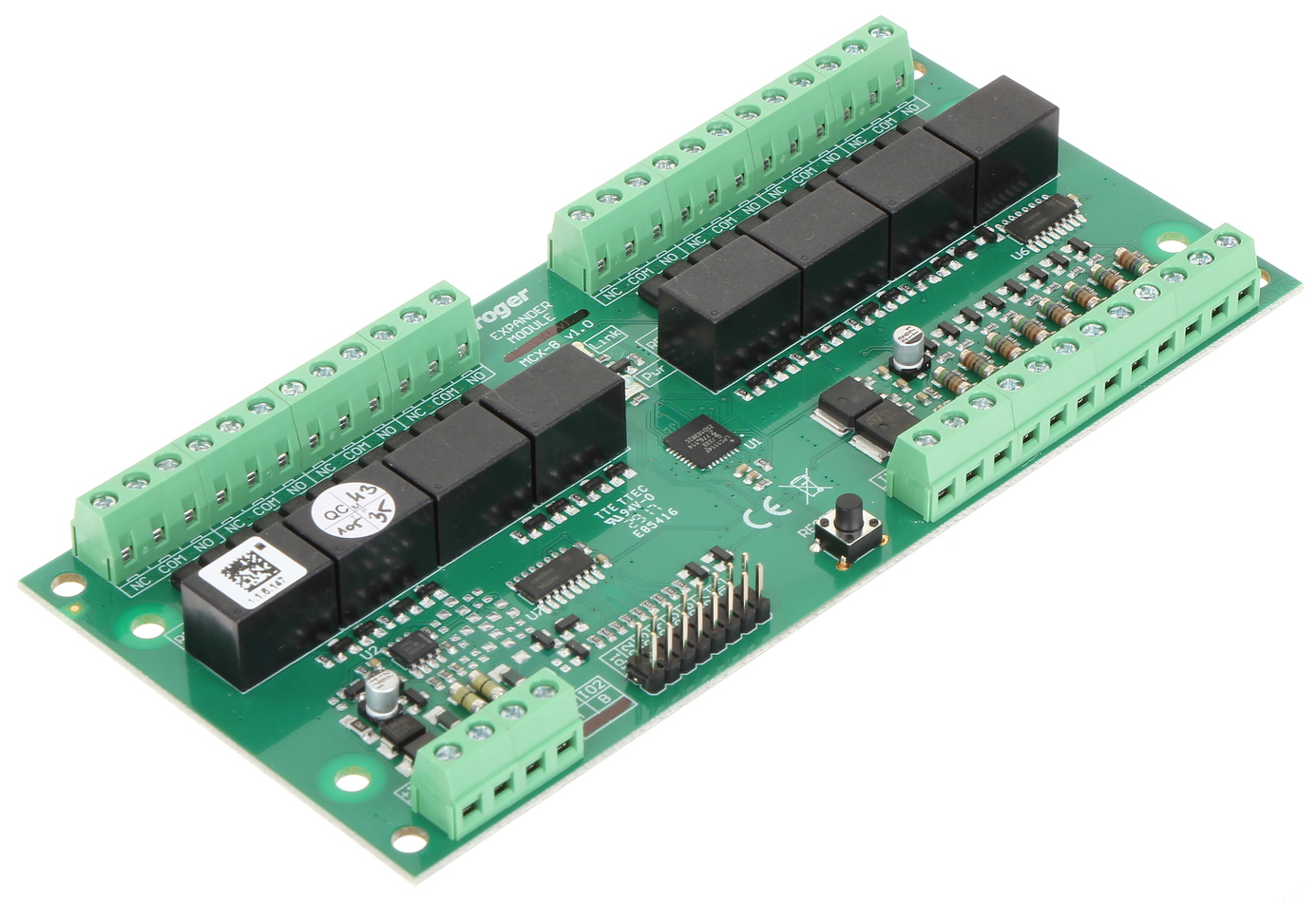

The MCX8-BRD is an I/O expander designed to work in the RACS 5 access control system; Inputs: 8 x NO/NC/EOL/2EOL/3EOL ; Relay output: 8 x 1.5 A / 30 V ;
Inputs:
8 x NO/NC/EOL/2EOL/3EOL
Relay output:
8 x 1.5 A / 30 V
Power supply:
12 V DC
Main features:
Ability to work inputs in Double Wiring mode
Inputs reaction time defined in the range of 50 ... 5000 ms
Configuration of output default state of polarization
Configuration through RS-485 (RogerVDM)
Firmware upgrade via RS-485 (Roger VDM) port
LED indication
Weight:
0.118 kg
Dimensions:
72 x 155 x 15 mm (without stand)
Manufacturer / Brand:
ROGER
Guarantee:
3 years
Brand:
ROGER
