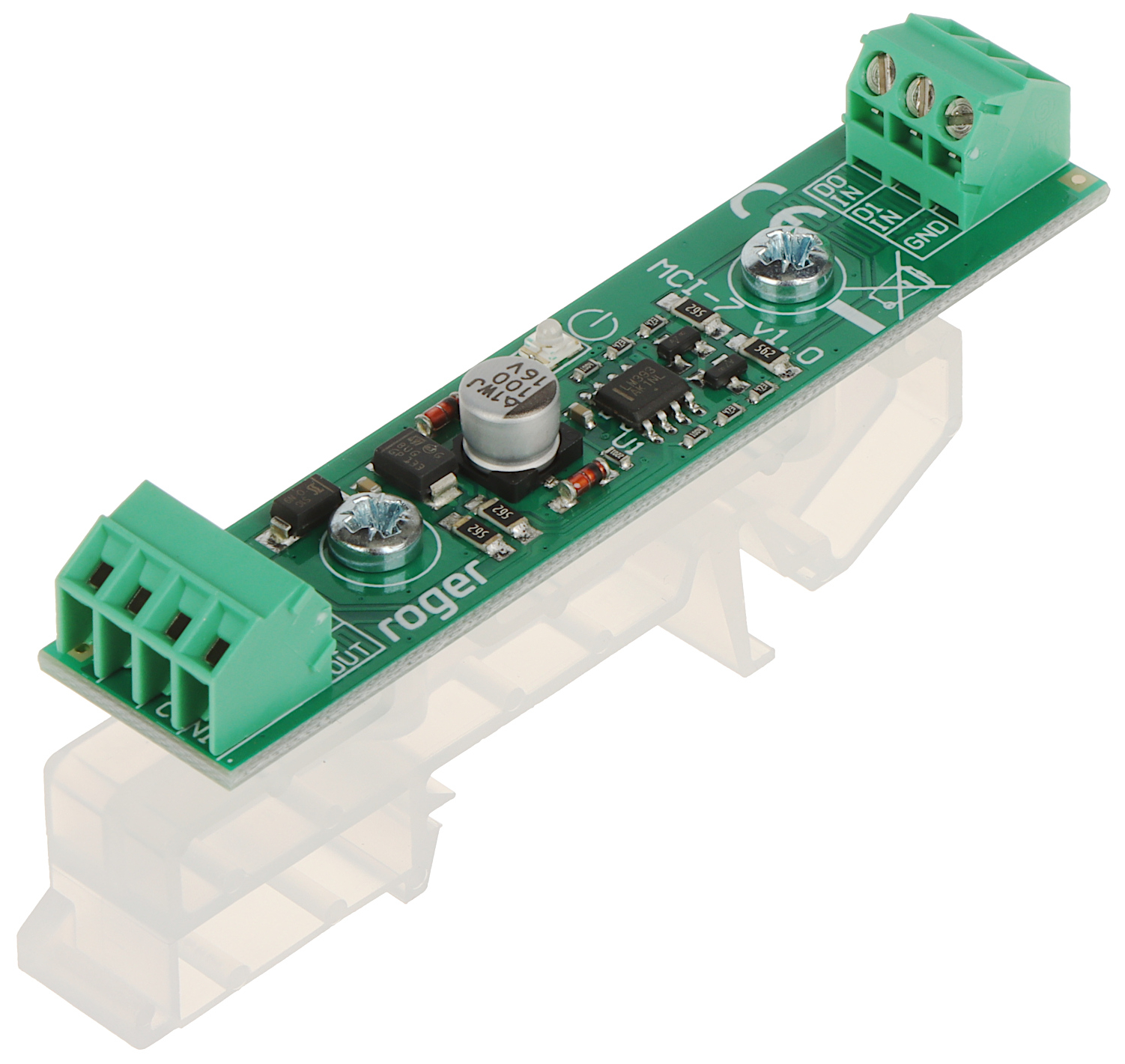

ADJUSTING-SEPARATING MODULE MCI-7 ROGER

21.33
(KÄIBEMAKS 21%)
MCI-7
21 objekt (id)
+

Minimum quantity for "ADJUSTING-SEPARATING MODULE MCI-7 ROGER" is 1.

Buy now with 1-click
The interface boosts and improves stability of data transmission in the Wiegand standard;
Main features:
  • D0 IN, D1 IN inputs with 3.3V triggering level
  • D0 OUT, D1 OUT open collector outputs with 5mA load in low state
  • LED indication
  • The distance between module and reader : 150 m
  • The distance between module and controller : as short as possible, recommended installation in the controller housing
  • Class I indoor
  • Assembly: DIN TS-35 rail
    Power supply: 10 V ... 15 V DC
    Current consumption: 10 mA
    Operation temp: 5 °C ... 40 °C
    Permissible relative humidity: 10 % ... 95 % (non-condensing)
    Weight: 0.016 kg
    Dimensions: 85  x 17  x 34 mm
    Manufacturer / Brand: ROGER
    Guarantee: 3 years
