In section: 100 m . Price for 1m when buying a whole roll ; Coaxial cable: CTF 113 ; Inner conductor: Ø 1.13 mm Cu ; Dielectric: Ø 4.8 mm PE ; Cable attenuation at 100m section: 17 dB @ 860 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |

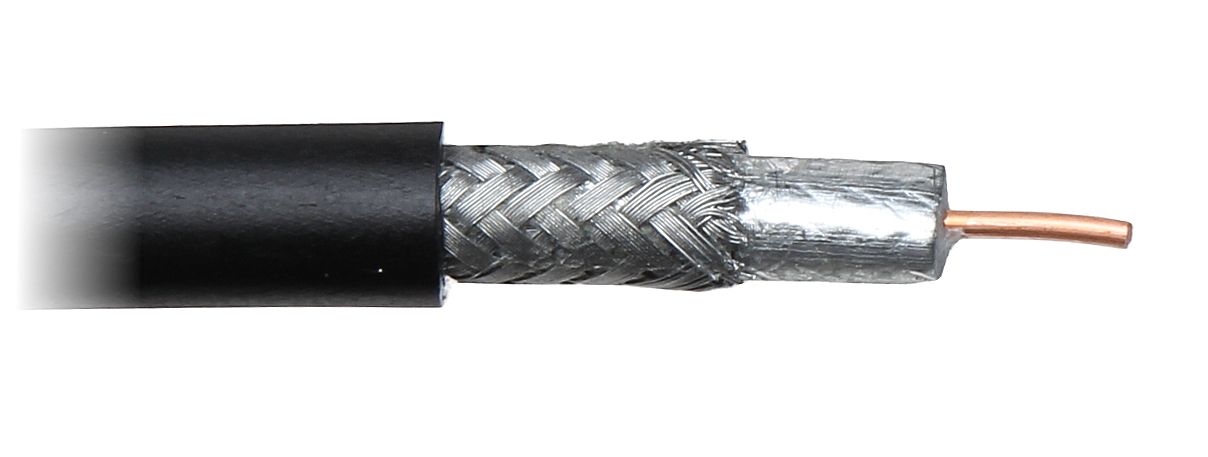

| Coaxial cable: | CTF 113 |
| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm PE (physical foam) |
| Shield: | Foil Al/PET/Al - Gel-filled |
| Braid: | Al wire |
| Braid density: | 90 % |
| Outer coating: | Ø 7 mm PE |
| Coating color: | Black |
| Impedance: | 75 Ω ± 3 Ω |
| Capacity: | 52 pF/m |
| Resistance of the inner conductor for DC current: | 17 Ω/km |
| Screening efficiency: | > 90 dB |
| Return loss: | 28 dB @300MHz 26 dB @900MHz 23 dB @2150MHz |
| Shortening wave coefficient: | 85 % |
| Weight: | 38.4 kg/km |
| Cable attenuation at 100m section: | 3.9 dB @ 50 MHz 7.8 dB @ 200 MHz 12.3 dB @ 450 MHz 17 dB @ 860 MHz 18.6 dB @ 1000 MHz 21.9 dB @ 1350 MHz 25.2 dB @ 1750 MHz 28.2 dB @ 2150 MHz 33.8 dB @ 3000 MHz |
| Guarantee: | 2 years |
Brand:
Satec
