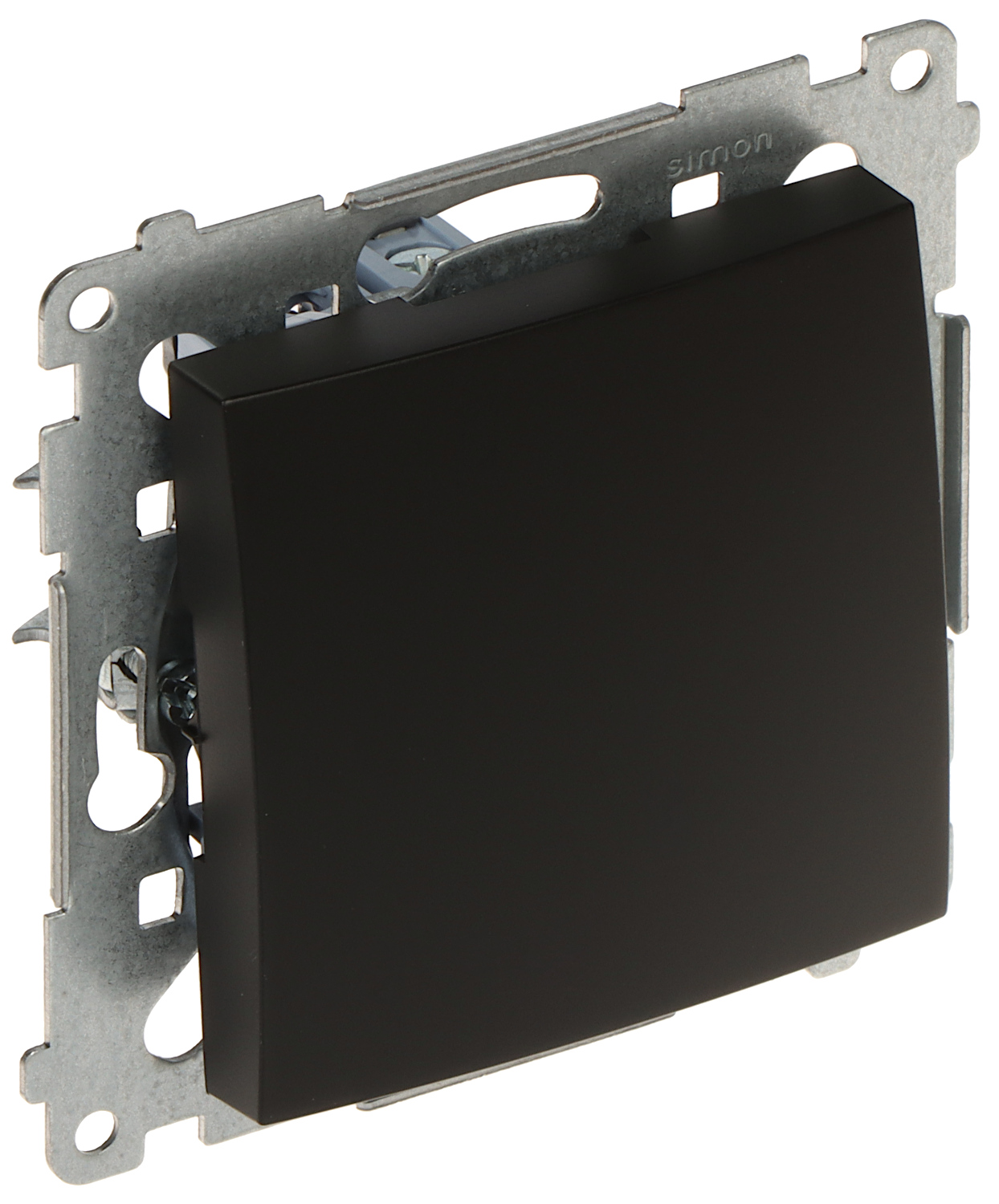

The SINGLE NO-NC CONTACT PUSH-BUTTON DP1A.01/49-SIMON54 is a high-quality flush-mounted push-button designed for use in electrical installations where reliable switching is essential. It features a single NO-NC (normally open-normally closed) contact, suitable for bell and monostable applications. This device is part of the Simon 54 product series and is compatible with Nature and Premium frames. Its robust construction with a matt black non-halogen plastic housing ensures durability and safety. The push-button supports both claw and screw mounting, making installation flexible and secure. With a rated voltage of 250 V AC and a rated current of 16 A (inductive load), it is well-suited for a variety of residential and commercial environments. The unit offers IP20 protection, which can be increased to IP44 when using a frame seal, providing resistance against dust and water ingress. Manufactured by KONTAKT Simon and covered by a 6-year guarantee, this push-button is a reliable choice for modern electrical systems.
| Device type: | Single NO-NC Contact Push-Button (bell, monostable) |
| Rated voltage: | 250 V AC |
| Rated current: | 16 A (inductive load) |
| Connectors type: | screw terminals |
| Application: | Flush-mounted, Simon 54 product series, for Nature, Premium frames |
| Backlight: |  |
| Assembly: | Claw or screw mounting |
| Main features: | NO contact |
| "Index of Protection": | IP20 / IP44 (using frame seal) |
| Housing: | Non-halogen plastic, PC |
| Color: | Matt black |
| Weight: | 0.056 kg |
| Dimensions: | |
| Manufacturer / Brand: | KONTAKT Simon |
| Guarantee: | 6 years |
