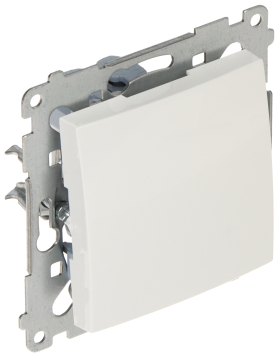

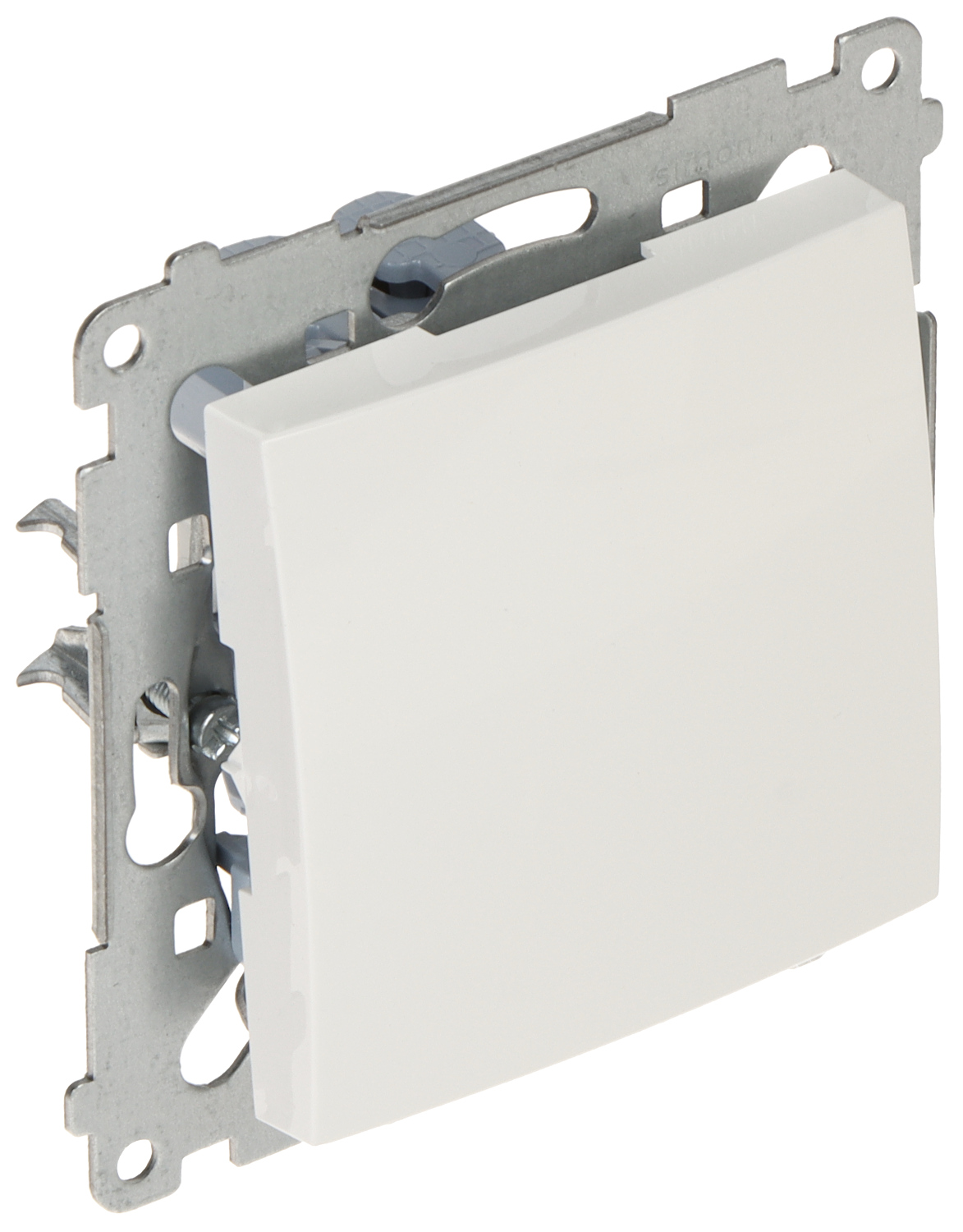

The SINGLE NO-NC CONTACT PUSH-BUTTON DP1.01/11 from the Simon54 series is a high-quality, flush-mounted switch designed for reliable control in residential and commercial electrical installations. Equipped with both Normally Open (NO) and Normally Closed (NC) contacts, this push-button is suitable for bell and monostable applications. The unit features a robust, non-halogen plastic housing and is compatible with Nature and Premium frames from the Simon 54 product series. It is easy to install with claw or screw mounting and utilizes quick-connectors for secure wiring. The button is finished in classic white (RAL 9003), ensuring it blends seamlessly with modern interiors. It also offers enhanced protection with IP20 (or IP44 with frame seal) for versatile use.
| Device type: | Single NO-NC Contact Push-Button (bell, monostable) |
| Rated voltage: | 250 V AC |
| Rated current: | 10 A (inductive load) |
| Connectors type: | Quick-connector |
| Application: | Flush-mounted, Simon 54 product series, for Nature, Premium frames |
| Backlight: |  |
| Assembly: | Claw or screw mounting |
| "Index of Protection": | IP20 / IP44 (using frame seal) |
| Housing: | Non-halogen plastic, PC |
| Color: | White (RAL 9003) |
| Weight: | 0.056 kg |
| Dimensions: | |
| Manufacturer / Brand: | KONTAKT Simon |
| Guarantee: | 6 years |
