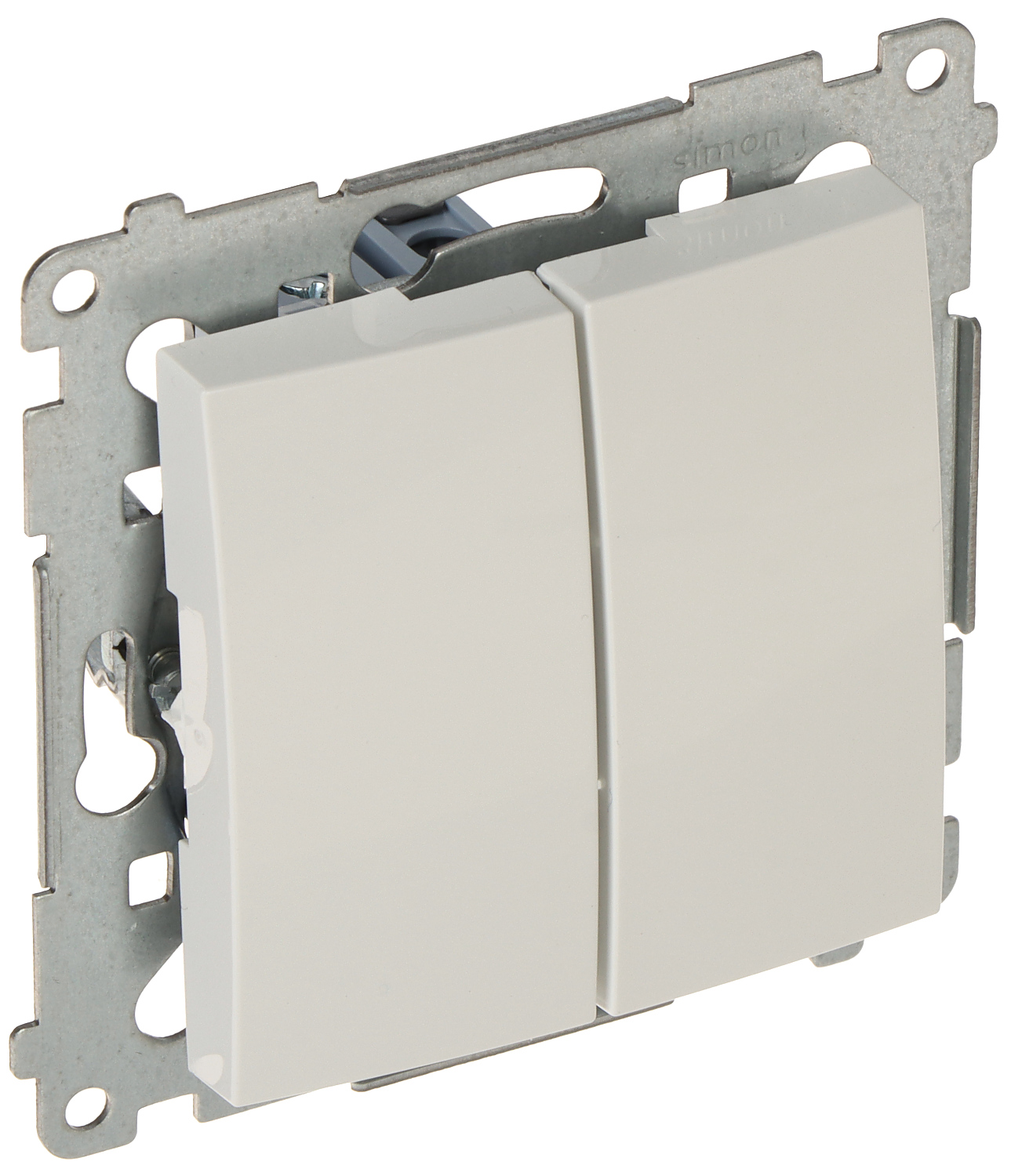

The TWO GANG SWITCH DW5A.01/11-SIMON54 is a high-quality, flush-mounted electrical switch from the Simon 54 series, designed for reliable operation in residential and commercial environments. This bistable switch is suitable for controlling two separate electrical circuits and is compatible with Nature and Premium frames. The device features a durable, non-halogen plastic (PC) housing for enhanced safety and longevity. With a rated voltage of 250 V AC and a rated current of 16 A (suitable for inductive loads), this switch supports a wide range of electrical applications. It is equipped with screw terminals for secure wiring and offers both claw and screw mounting options. The product is available in a classic white (RAL 9003) finish to complement modern interiors. The switch boasts an IP20 rating for standard protection and can achieve IP44 when used with a frame seal. Manufactured by KONTAKT Simon, it comes with a 6-year guarantee for peace of mind.
| Device type: | Two Gang Switch (bistable) |
| Rated voltage: | 250 V AC |
| Rated current: | 16 A (inductive load) |
| Connectors type: | screw terminals |
| Application: | Flush-mounted, Simon 54 product series, for Nature, Premium frames |
| Backlight: |  |
| Assembly: | Claw or screw mounting |
| Index of Protection: | IP20 / IP44 (using frame seal) |
| Housing: | Non-halogen plastic, PC |
| Color: | White (RAL 9003) |
| Weight: | 0.06 kg |
| Dimensions: | |
| Manufacturer / Brand: | KONTAKT Simon |
| Guarantee: | 6 years |
