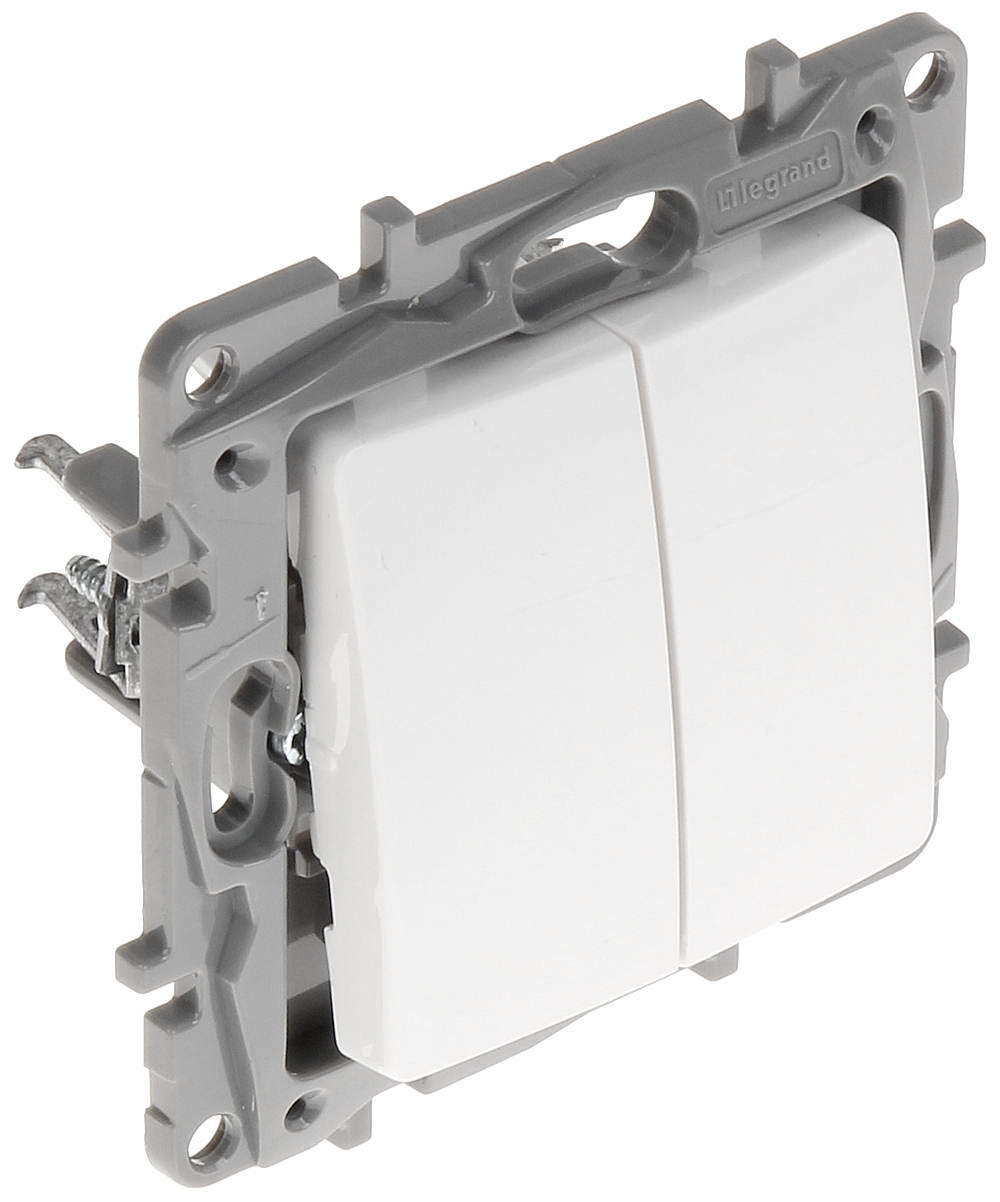

The DOUBLE PUSH BUTTON LE-764508 from the Niloe series by LEGRAND is a high-quality electrical switch designed for reliable operation in residential and commercial environments. This monostable bell-type double push button operates at 230 V / 50 Hz with a rated current of 6 A. It features automatic spring terminals for easy wiring, with compatibility for electrical cables up to 2 x 2.5 mm². The device supports both claw or screw mounting methods, ensuring versatile installation options.
The housing is made from durable plastic and finished in a classic white (RAL9003) color, making it suitable for a wide range of decors. The LE-764508 provides an IP20 protection rating, offering resistance to solid objects and limited ingress protection. It does not include backlighting. With compact dimensions of 76 x 76 x 45.5 mm and a lightweight design of 0.047 kg, it is ideal for modern electrical installations. Backed by a 2-year guarantee and the trusted LEGRAND brand, this product ensures both quality and peace of mind.
| Device type: | Double Push Button (bell, monostable) |
| Rated voltage: | 230 V / 50 Hz |
| Rated current: | 6 A |
| Electrical cable: | max. 2 x 2.5 mm² |
| Connectors type: | automatic spring terminals |
| Application: | Niloe product series |
| Backlight: |  |
| Assembly: | Claw or screw mounting |
| "Index of Protection": | IP20 |
| Housing: | Plastic |
| Color: | White - RAL9003 |
| Weight: | 0.047 kg |
| Dimensions: | 76 x 76 x 45.5 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
