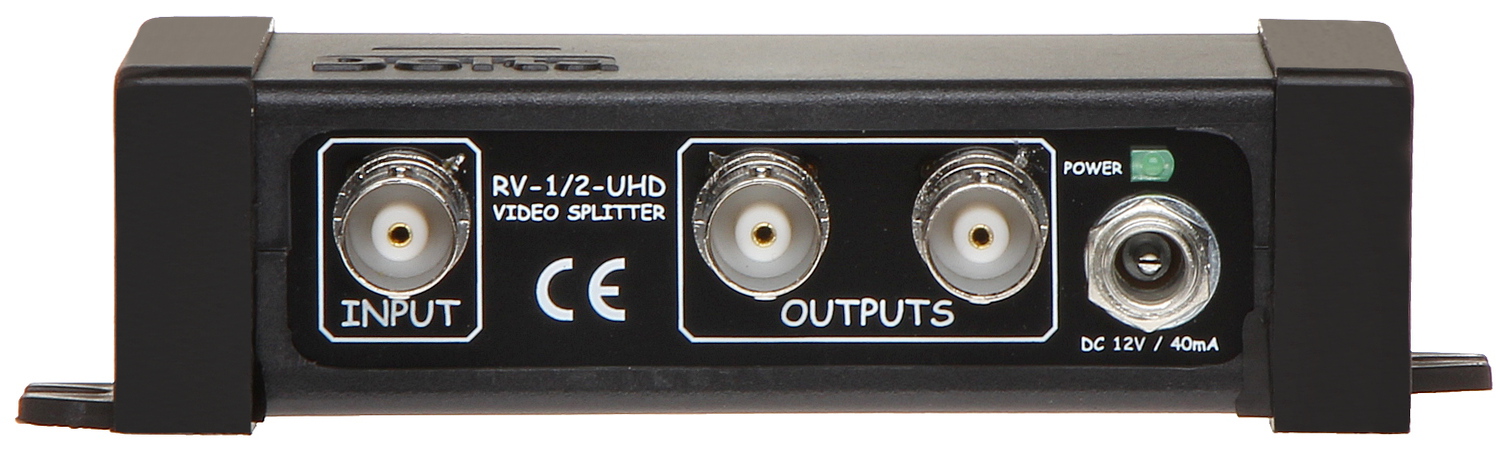

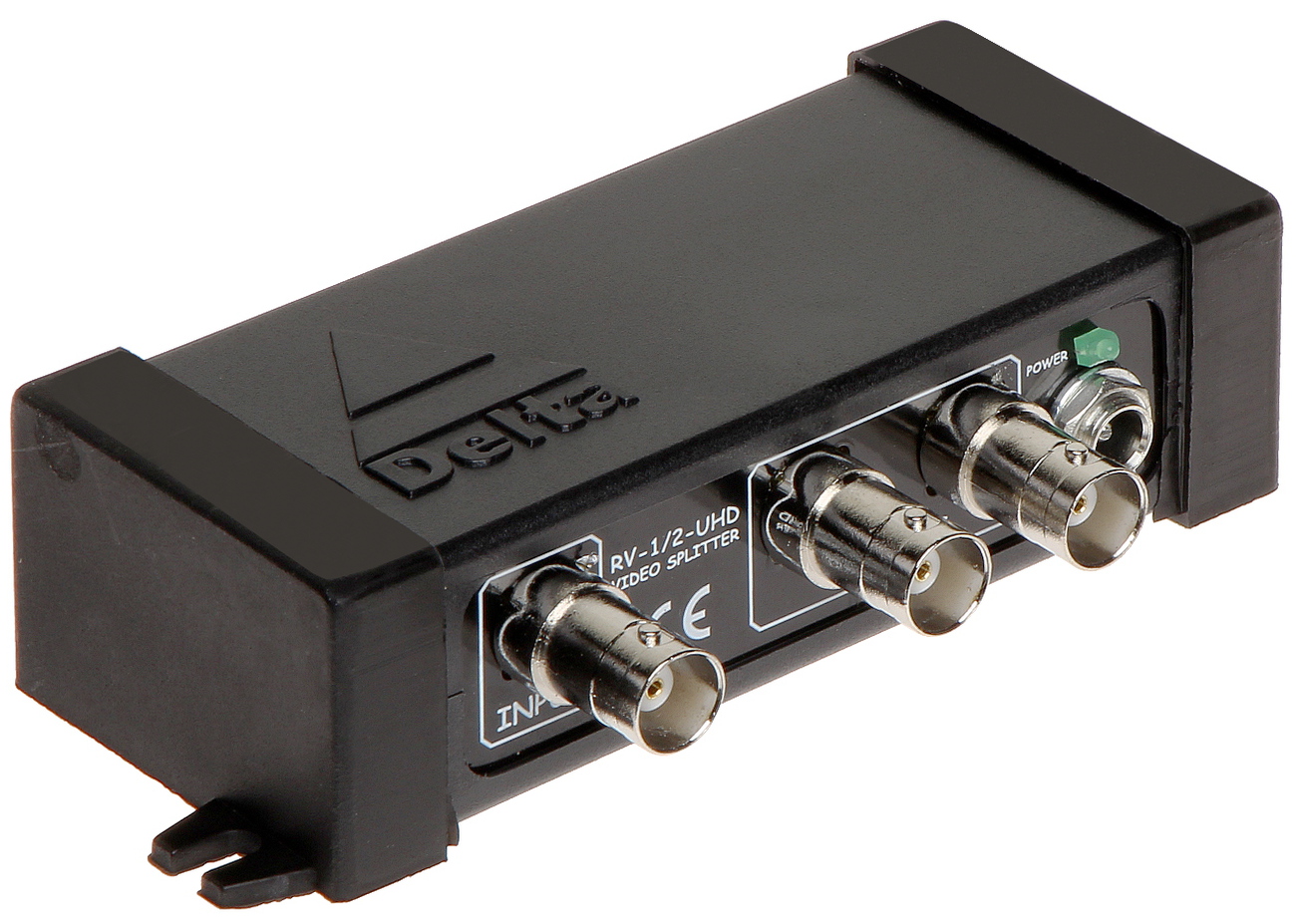

VIDEO SPLITTER RV-1/2-UHD
Ole hyvä ja kirjaudu sisään, jotta voimme ilmoittaa sinulle vastauksesta
Standard: AHD - 8 Mpx 4K UHD, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Number of inputs: 1 pcs BNC ; Number of outputs: 2 pcs BNC ; Power supply: 12 V DC ;
| Standard: | |
| Number of inputs: | 1 pcs BNC |
| Number of outputs: | 2 pcs BNC |

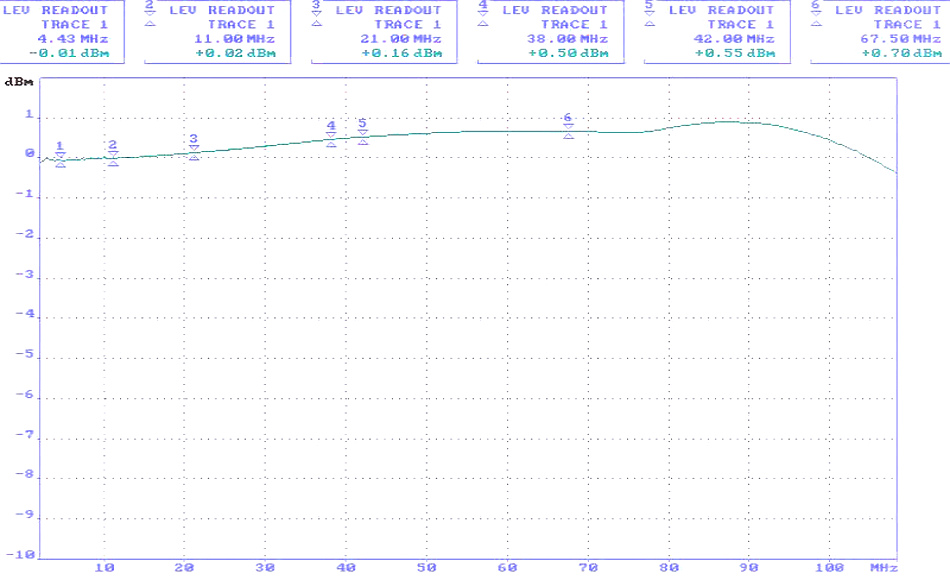

| Bandwidth: | 0 ... 120 MHz (-3dB) |
| Inputs impedance: | 75 Ω |
| Outputs impedance: | 75 Ω |
| Input protection: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV air Lightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Outputs protection: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV air Lightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Power supply: | 12 V DC (power adapter not included) |
| Current consumption: | 40 mA |
| Gain : | 0 dB |
| Weight: | 0.07 kg |
| Dimensions: | 117 x 30 x 62 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 5 years |
