6.59
(Inclusa tassa)
D-SEP/HD
74 Articolo(i)
+

La quantità minima per "VIDEO SEPARATOR D-SEP/HD" è 1.

Acquista adesso con 1-click
Number of inputs: 1 pcs BNC socket ; Number of outputs: 1 pcs BNC plug ; Opto-isolation between inputs and outputs: 25 V DC ; Bandwidth: 200 MHz ;
Standard:
  • AHD - 8 Mpx, 4K UHD
  • HD-CVI - 8 Mpx, 4K UHD
  • HD-TVI - 8 Mpx 4K UHD
  • CVBS - PAL / NTSC
  • Device type: Passive
    Number of inputs: 1 pcs BNC socket
    Number of outputs: 1 pcs BNC plug
    Input impedance: 75 Ω
    Output impedance: 75 Ω
    Opto-isolation between inputs and outputs: 25 V DC

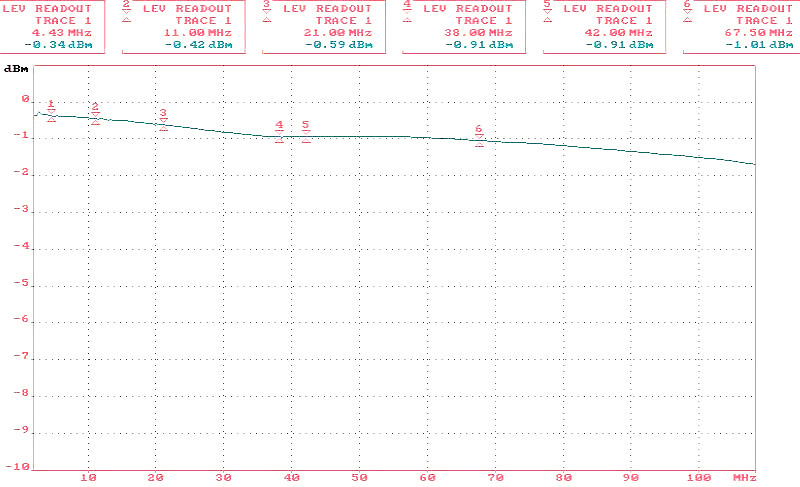

    Attenuation:
  • 4.43 MHz @ 0.34 dB
  • 11 MHz @ 0.42 dB
  • 21 MHz @ 0.59 dB
  • 38 MHz @ 0.91 dB
  • 42 MHz @ 0.91 dB
  • 67.5 MHz @ 1.01 dB
  • Bandwidth: 200 MHz
    Power supply:
    Operation temp: -20 °C ... 55 °C
    Weight: 0.03 kg
    Dimensions: 49  x 20  x 17 mm
    Guarantee: 2 years
