VIDEO-AUDIO BALUN TR-2P+2AU
Please sign in so that we can notify you about a reply
Device type: Passive ; Number of channels: 2 Video 2 AUDIO ; Symmetrical socket type: RJ-45 (8-pin, 4 pairs) Socket ;
| Standard: | |
| Audio transmission range: | max. 1200 m |
| Device type: | Passive |
| Number of channels: | 2 Video 2 AUDIO |
| Video transmission range: | max. 400 m UTP cat. 5e |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |

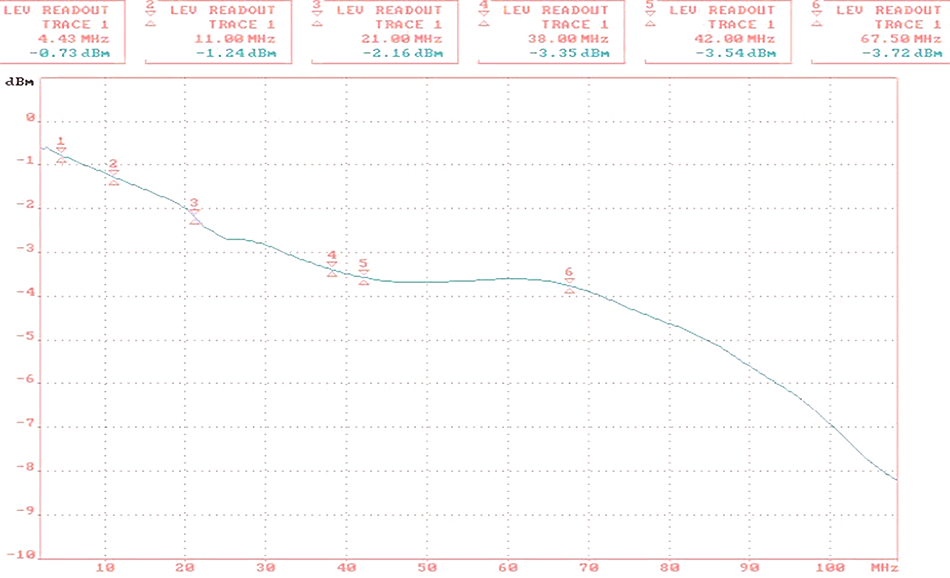

| Attenuation: | |
| Audio bandwidth: | 20 Hz ... 20 kHz |
| Opto-isolation between inputs and outputs: | 600 V - Audio |
| Isolation between inputs: | > -50 dB Video |
| CMRR (dB @ 5MHz): | 50 dB |
| Coaxial socket impedance: | 75 Ω Video 600 Ω AUDIO |
| Symmetrical socket impedance: | 100 Ω Video 100 Ω AUDIO |
| Audio input nominal level: | 1 V |
| Audio output nominal level: | 1 V |

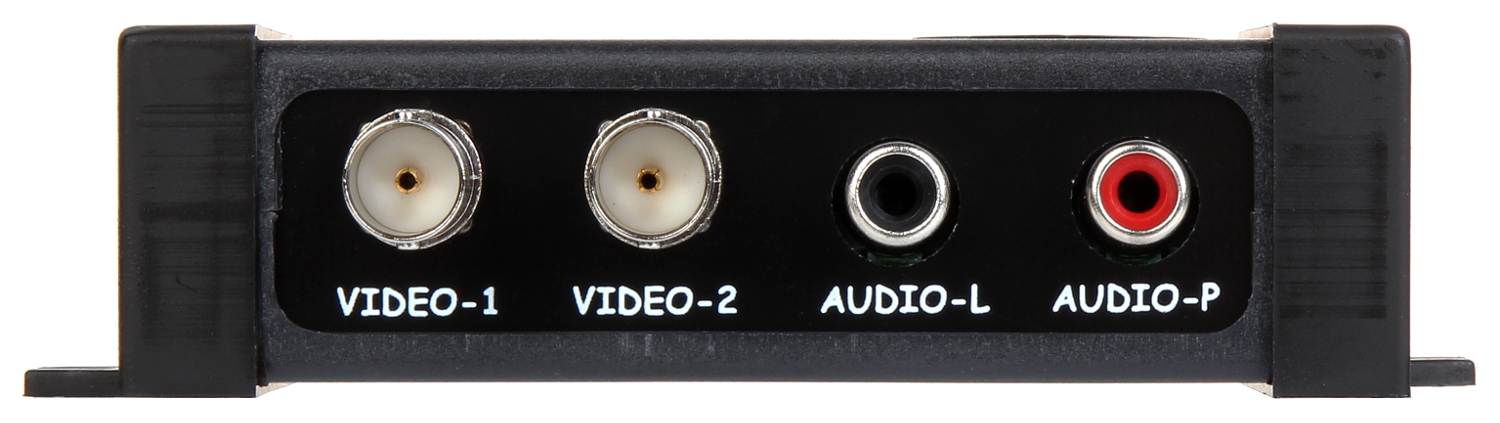

| Coaxial socket type: | 2 x BNC Socket Video 2 x CINCH Socket AUDIO |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.107 kg |
| Dimensions: | 117 x 64 x 30 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
