Frequency range: 87.5 MHz ... 108 MHz - FM, 170 MHz ... 230 MHz - VHF / DAB, 470 MHz ... 862 MHz - UHF, 47 MHz ... 862 MHz - AUX ; Maximal output level DIN45004B: 118 dBµV (FM/DAB/VHF/UHF), 112 dBµV (AUX) ; Main features: DVB-T, DVB-T2, DAB, DAB+ compliance ;
| Frequency range: | |
| Gain : | |
| Number of inputs/outputs: | 6 / 1 + 1 (test, -30dB) |
| Pre-amplifiers powering: | 12 V DC : 50 mA / VHF/UHF 1-4 input |
| Gain adjustment: | |
| Cable loss correction: | 0 dB ... 9 dB (DAB/VHF/UHF) |
| Maximal output level DIN45004B: | |
| Return loss: | > 10 dB |
| S/N ratio: | < 7 dB @ FM |
| Main features: | |

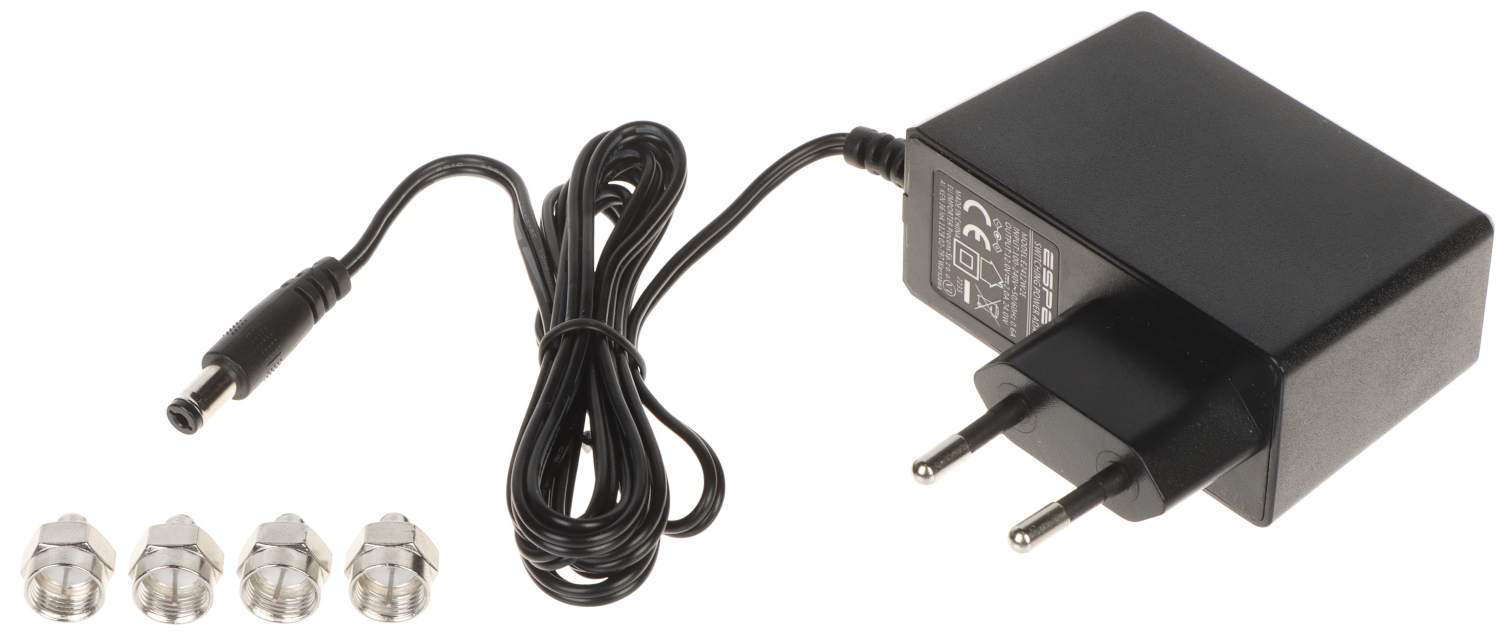

| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | 20 W (max) |
| Operation temp: | 0 °C ... 50 °C |
| Weight: | 0.68 kg |
| Dimensions: | 200 x 190 x 51 mm |
| Manufacturer / Brand: | TELMOR |
| Guarantee: | 2 years |
Brand:
Telmor
