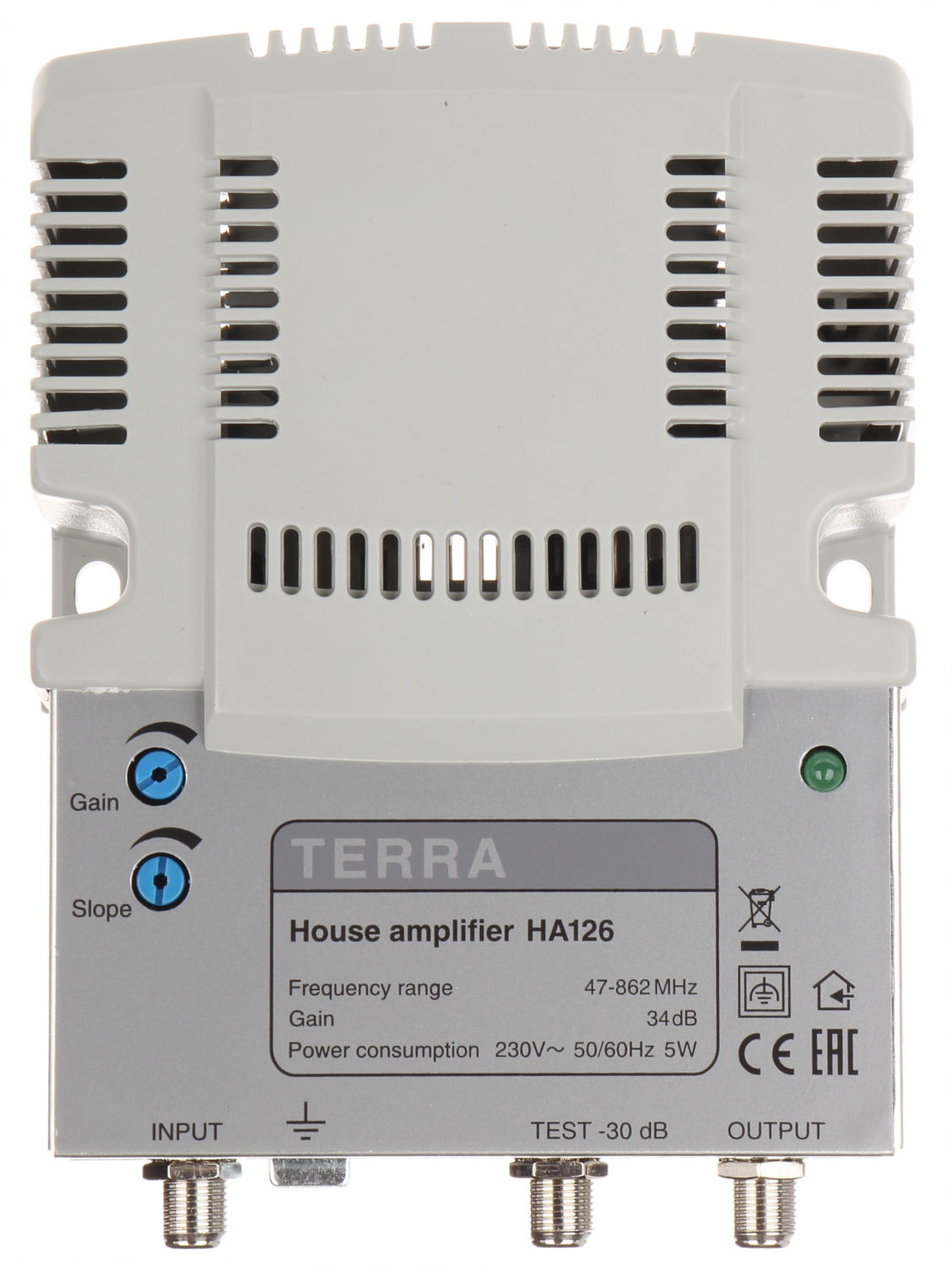

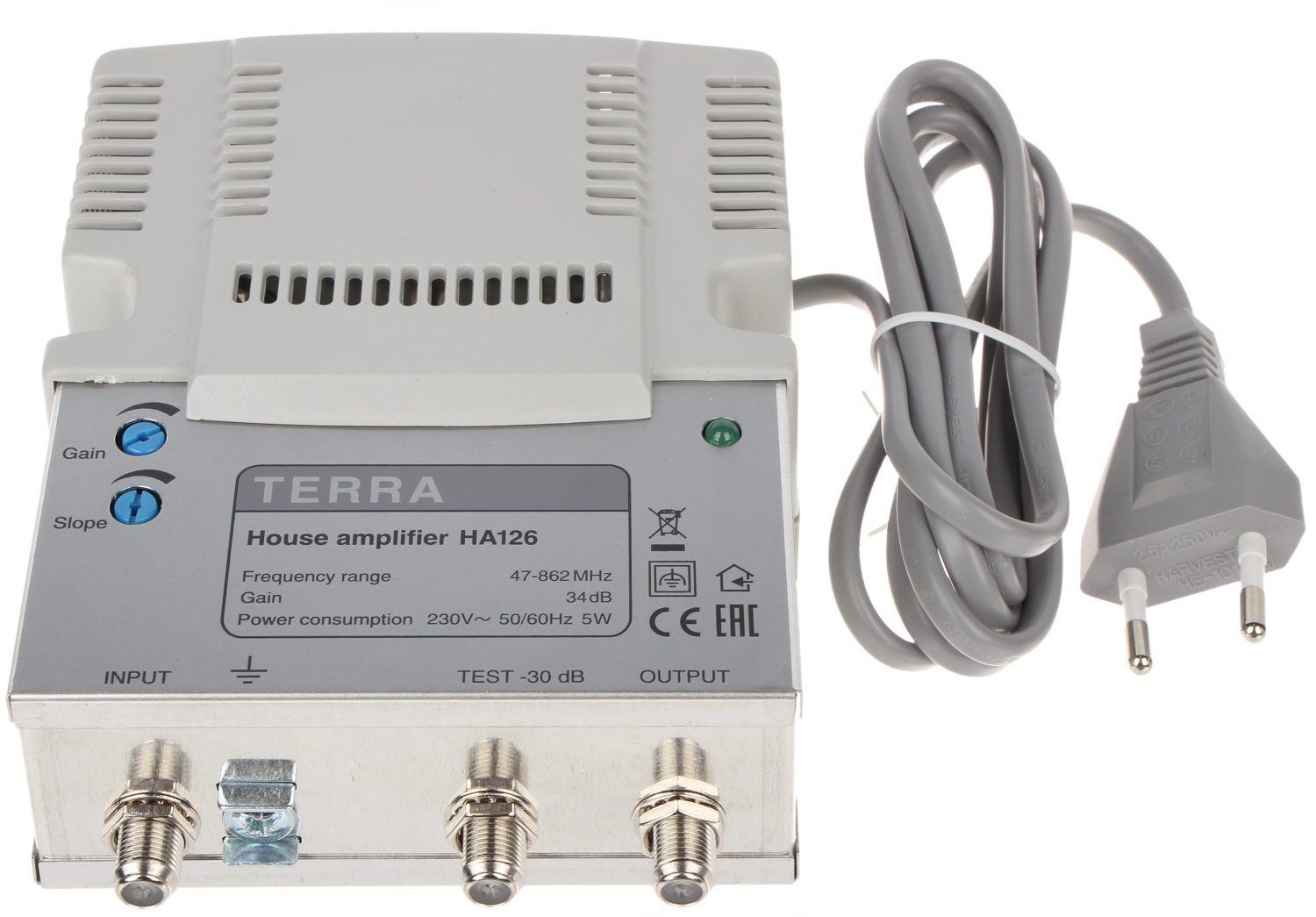

AMPLIFIER HA-126 TERRA 34 db
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 47 MHz ... 862 MHz ; TV amplification (47-862 MHz): 34 dB ; Maximal output level IMD3=60 dB DIN45004B: 117 dBµV ;
| Frequency range: | 47 MHz ... 862 MHz |
| TV amplification (47-862 MHz): | 34 dB |
| Pass-band ripple: | ± 0.5 dB |
| Number of inputs/outputs: | 1/1 |
| Gain adjustment: | 0 dB ... 20 dB |
| Cable loss correction: | 0 dB ... 18 dB |
| Maximal output level IMD3=60 dB DIN45004B: | 117 dBµV |
| Maximal output level IMD2=60 dB EN50083-3: | 112 dBµV |
| Return loss: | > 14 dB Return loss (when f>=47 MHz, the suppression lowers 1.5 dB/octave) |
| S/N ratio: | < 6 dB |
| Power consumption: | 6 VA / 230 V / 50 Hz |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.930 kg |
| Dimensions: | 107 x 145 x 53 mm |
| Guarantee: | 2 years |
Brand:
Terra
