Frequency range: 87 MHz ... 790 MHz ; Number of inputs/outputs: 1 / 2 ; Gain : 25 / 28 dB ;
| Frequency range: | 87 MHz ... 790 MHz |
| Number of inputs/outputs: | 1 / 2 |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |
| Gain : | 25 / 28 dB ± 2 dB |
| Gain adjustment: | 0 ... 12 dB ± 1 dB |
| S/N ratio: | ≤ 4 dB |
| Maximum output level: | 105 dBµV (2kTV) |
| IMA3 60dB: | 99 dBµV |
| IMA2 60dB: | 86 dBµV |
| Return loss: | ≥ 10 dB |
| Pre-amplifiers powering: |  |
| Main features: | Built-in pass-through filter 87 ... 790 MHz |
| Operation temp: | -25 °C ... 55 °C |

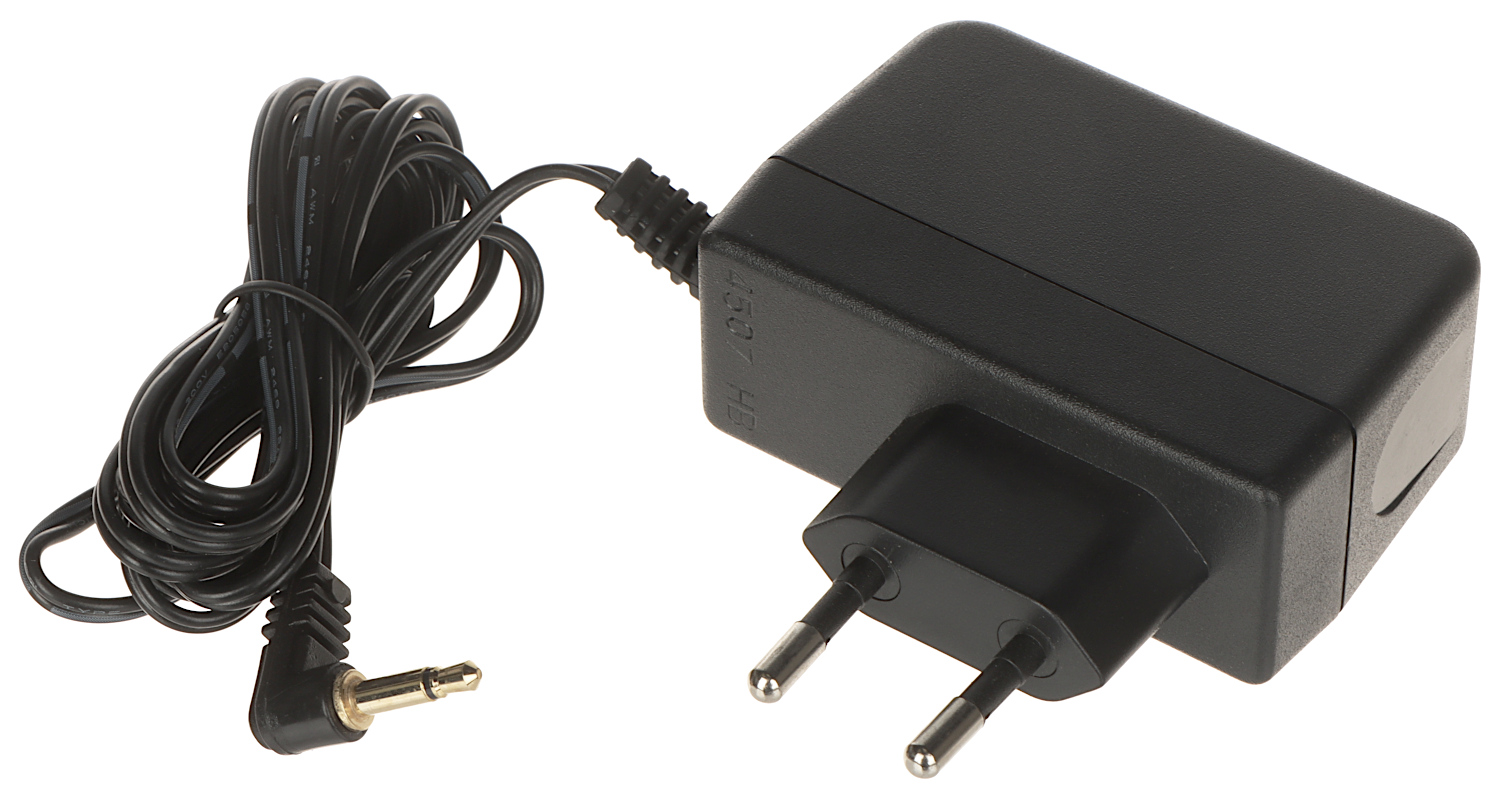

| Power supply: | 12 V DC / 250 mA (power adapter included) |
| Weight: | 0.3 kg |
| Dimensions: | 125 x 88 x 26 mm |
| Manufacturer / Brand: | AMS |
| Guarantee: | 3 years |
Brand:
AMS
