ANTENNA AMPLIFIER AB-011T DVB-T TERRA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 470 MHz ... 694 MHz ; Gain : 13 dB / 26 dB (switch) ;
| Frequency range: | 470 MHz ... 694 MHz |
| Gain : | 13 dB / 26 dB (switch) |
| S/N ratio: | < 1.3 dB |
| Return loss: | > 10 dB |
| Number of inputs/outputs: | 1 / 1 |
| IMA3 60dB: | 108 dBµV |
| Amplifier shield: |  |
| Built-in LTE filter: | |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |

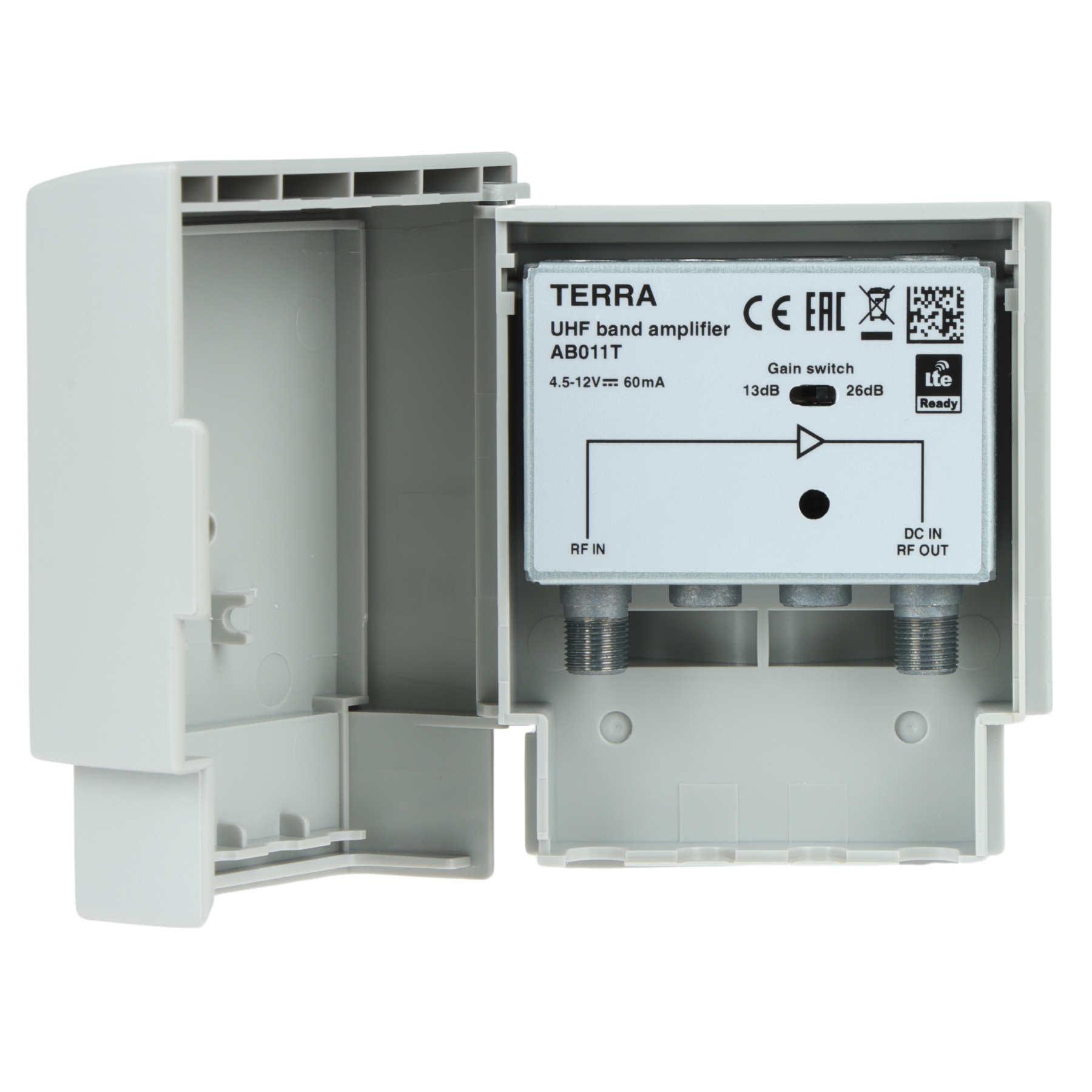

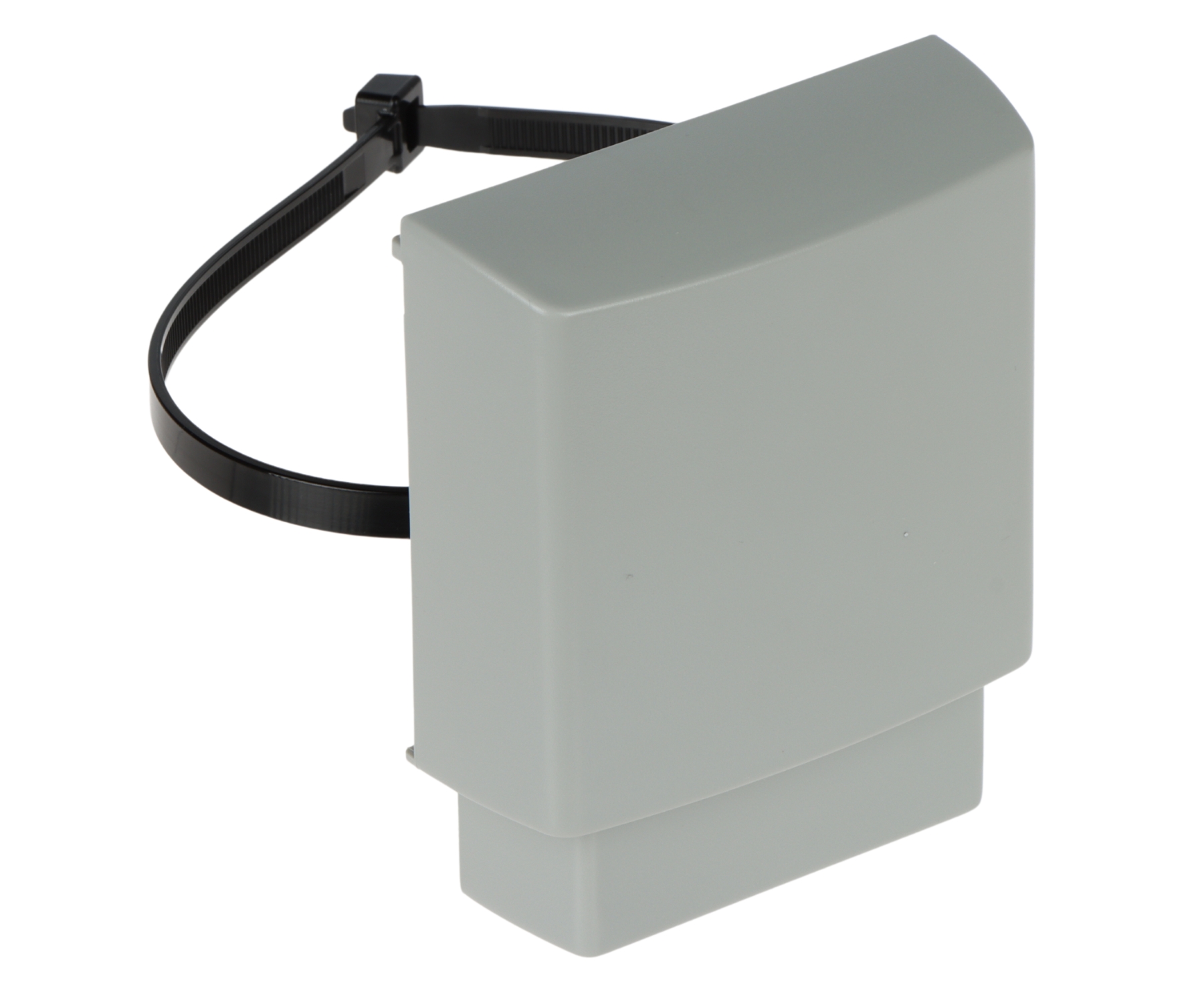

| Housing: | die-cast housing mounted inside compact plastic enclosure |

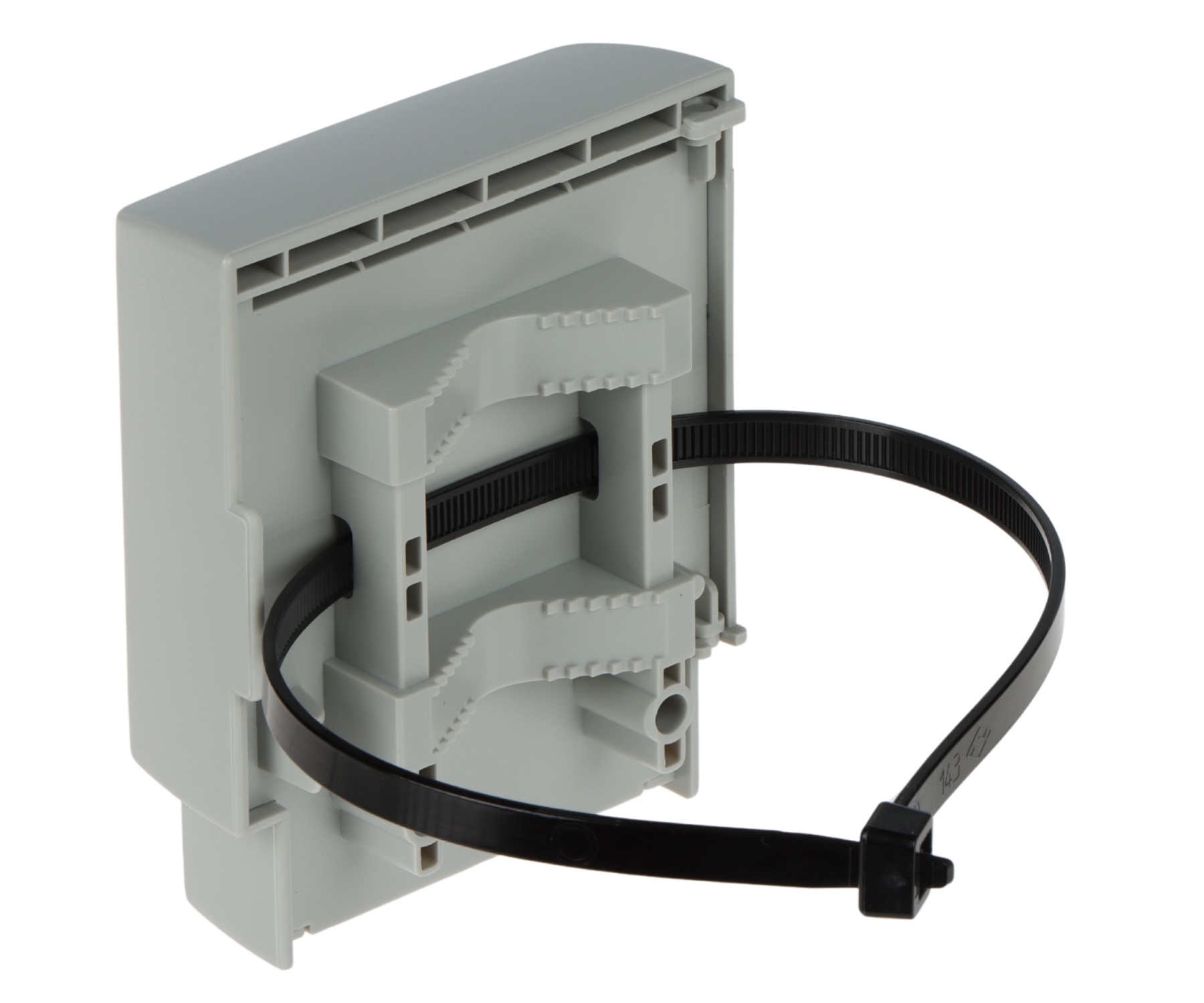

| Mounting: | on a mast or a wall |
| Operation temp: | -20 °C ... 50 °C |
| Power supply: | 4.5 V ... 12 V DC |
| Weight: | 0.172 kg |
| Dimensions: | 106 x 88 x 44 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
Brand:
Terra
