Frequency range: 470 MHz ... 862 MHz ; Gain : 14 dB / 27 dB (switch) ;
| Frequency range: | 470 MHz ... 862 MHz |
| Gain : | 14 dB / 27 dB (switch) |
| S/N ratio: | < 1 dB |
| Return loss: | > 10 dB |
| Number of inputs/outputs: | 1 / 1 |
| IMA3 60dB: | 108 dBµV |
| Amplifier shield: |  |
| Input/output impedance: | 75 Ω |
| Connectors type: | "F" |

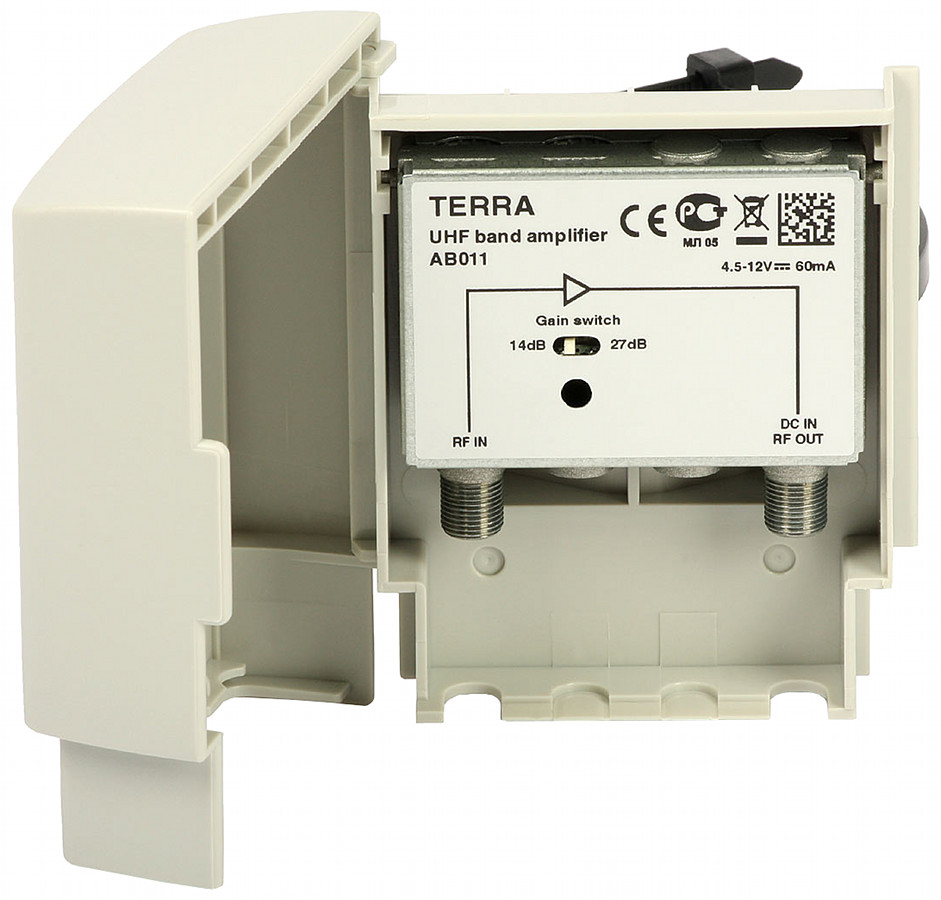

| Housing: | die-cast housing mounted inside compact plastic enclosure |

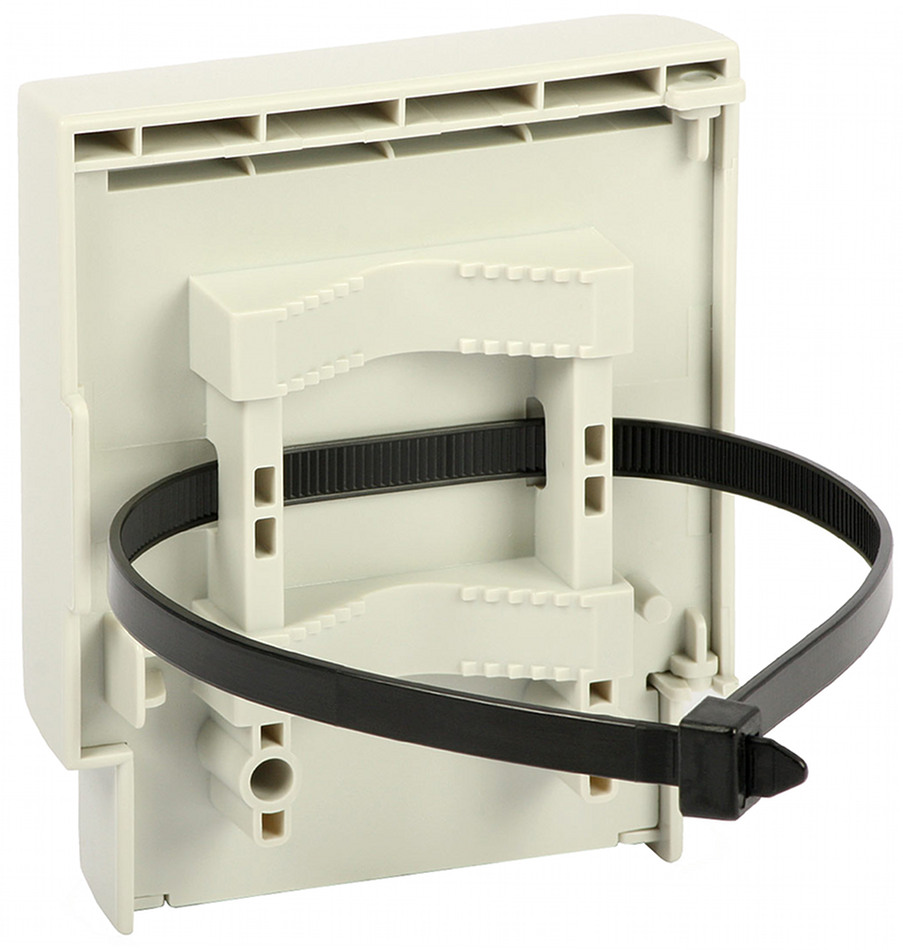

| Mounting: | on a mast or a wall |
| Operation temp: | -20 °C ... 50 °C |
| Power supply: | 4.5 V ... 12 V DC |
| Weight: | 0.170 kg |
| Dimensions: | 108 x 90 x 44 mm |
| Guarantee: | 2 years |
Brand:
Terra
