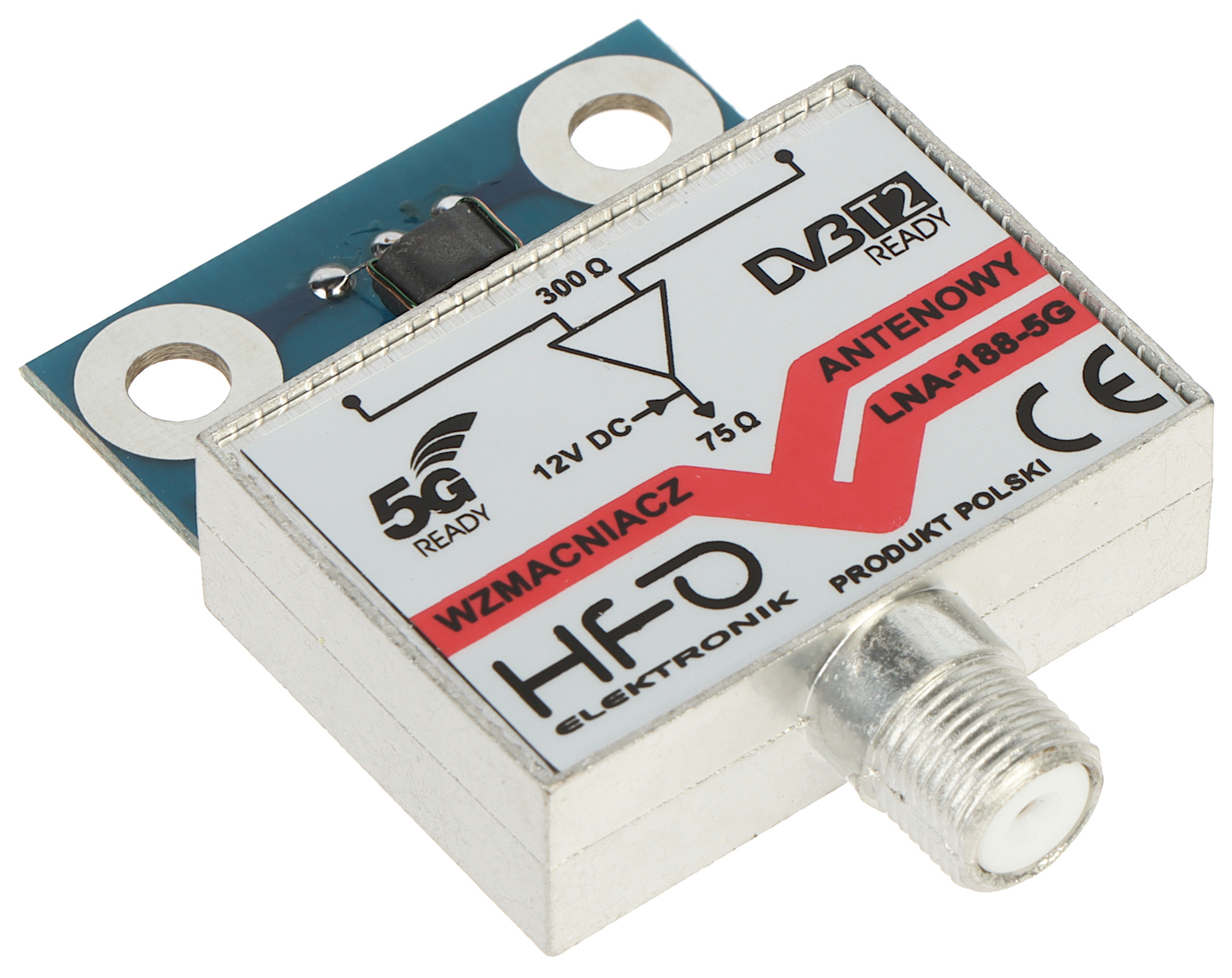

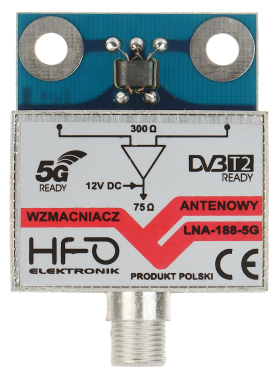

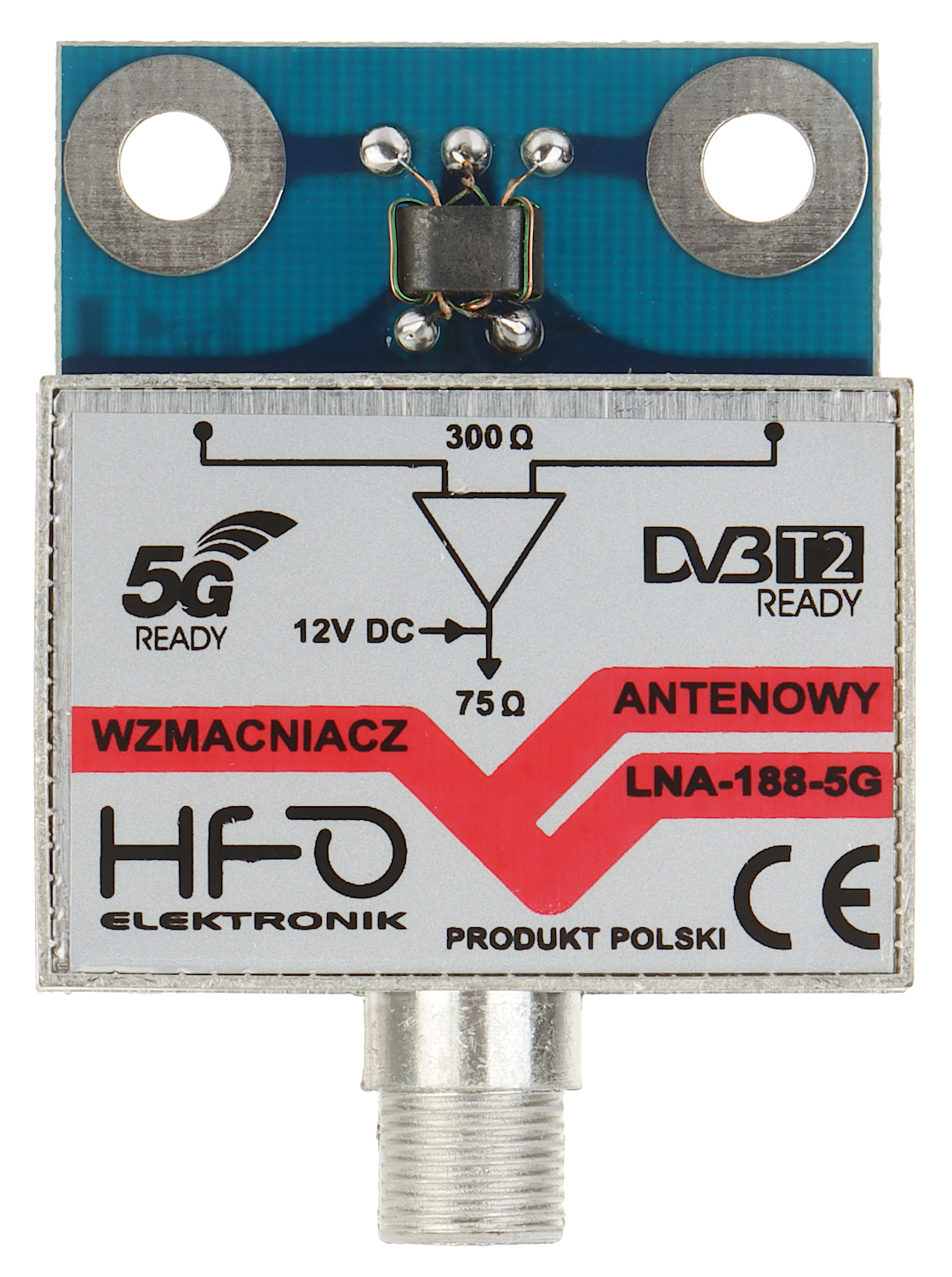

Broadband board amplifier to antenna box; Channels: 6 - 12 21 - 60 ; Gain : 13 ... 30 dB ;
| Range: | 174 MHz ... 790 MHz |
| Channels: | 6 - 12 21 - 60 |
| Gain : | 13 ... 30 dB |
| CH6 - CH12 amplification: | 13 dB ... 15 dB |
| Gain K21 - K43: | 25 dB ... 30 dB |
| Gain K43 - K55: | 30 dB |
| Gain K55 - K60: | 30 dB ... 20 dB |
| Number of outputs [connectors type]: | 1 pcs (F connector) |
| Number of inputs [connectors type]: | 1 pcs (antenna terminals) |
| Maximum output level: | 98 dBµV |
| Ripples: | |
| Input/output impedance: | 300 Ω / 75 Ω |
| Power supply: | 12 V / 55 mA via antenna cable |
| Shielding: |  |
| Weight: | 0.024 kg |
| Dimensions: | 55 x 40 x 12 mm |
| Guarantee: | 2 years |
