Inputs: 1 pcs Video composite (Cinch) 1 pcs RF (F) 2 pcs audio (Cinch) ; Output: 1 pcs RF (F) ; Video input frequency range: 20 Hz ... 6 MHz ; Video input level / impedance: 1 V ± 1 dB / 75 Ω ; Audio input frequency range: 20 Hz ... 15 kHz ; Audio input level adjustment: 1 ... -14 dB ;

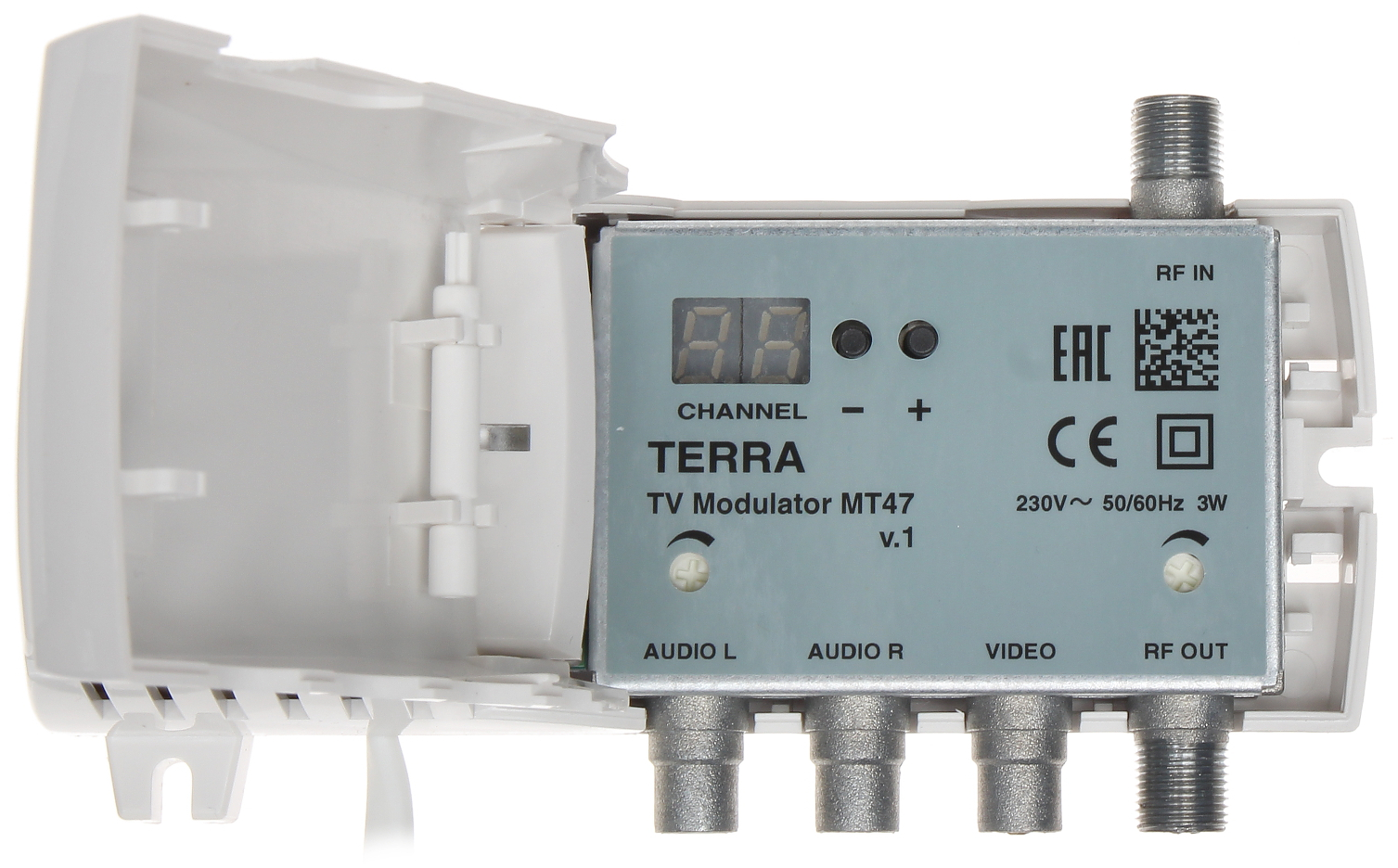

| Inputs: | 1 pcs Video composite (Cinch) 1 pcs RF (F) 2 pcs audio (Cinch) |
| Output: | 1 pcs RF (F) |
| Video input frequency range: | 20 Hz ... 6 MHz |
| Video input level / impedance: | 1 V ± 1 dB / 75 Ω |
| Audio input frequency range: | 20 Hz ... 15 kHz |
| Audio input level adjustment: | 1 ... -14 dB |
| Audio input level / impedance / deviation: | 775 mV RMS / 10 kΩ / 50 kHz |
| Level (typical) / RF output impedance: | 85 dBµV / 75 Ω |
| RF output level adjustment: | 0 ... -20 dB |
| RF output PAL signal version: | B/G/D/K/H/I/L/M/N/Australia |
| RF output frequency (channels) range: | 170 MHz ... 230 MHz 470 MHz ... 862 MHz (K6-12, K21-69) |
| Carrier frequency error: | ± 50 kHz |
| Audio subcarrier frequency: | 4.5 ; 5.5 ; 6.0 ; 6.5 MHz |
| Fine tuning range of video carrier frequency: | ± 2.25 MHz max. with 0.25 MHz step |
| SAT / Terr loop-through loss: | 2.5 dB / 1.5 dB |
| SAT / Terr loop-through frequency range: | 47 MHz ... 2150 MHz |
| Video frequency response: | ± 1 dB |
| A/V ratio: | 12 / 16 dB |
| Amplitude modulation depth (typical): | 81 % |
| SNR (weighted): | ≥ 55 dB |
| Power supply: | 230 V AC @ 50Hz |
| Power consumption: | 2.5 W |
| Operation temp: | -10 °C ... 50 °C |
| Main features: | |
| Weight: | 0.336 kg |
| Dimensions: | 133 x 73 x 39 mm |
| Guarantee: | 2 years |
Brand:
Terra
