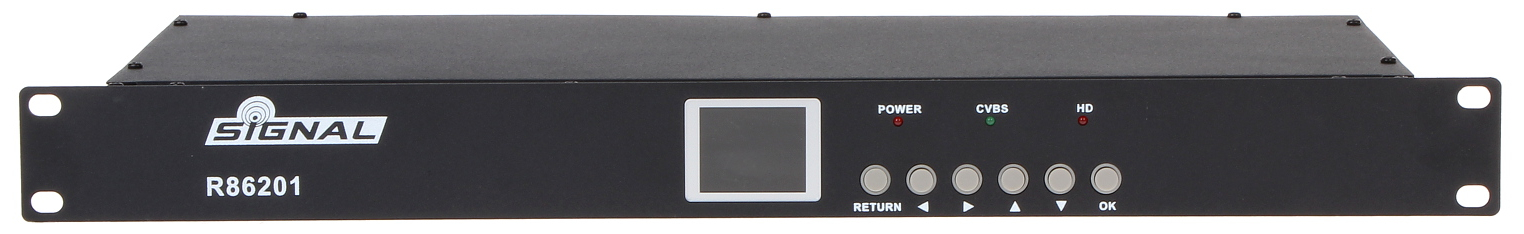

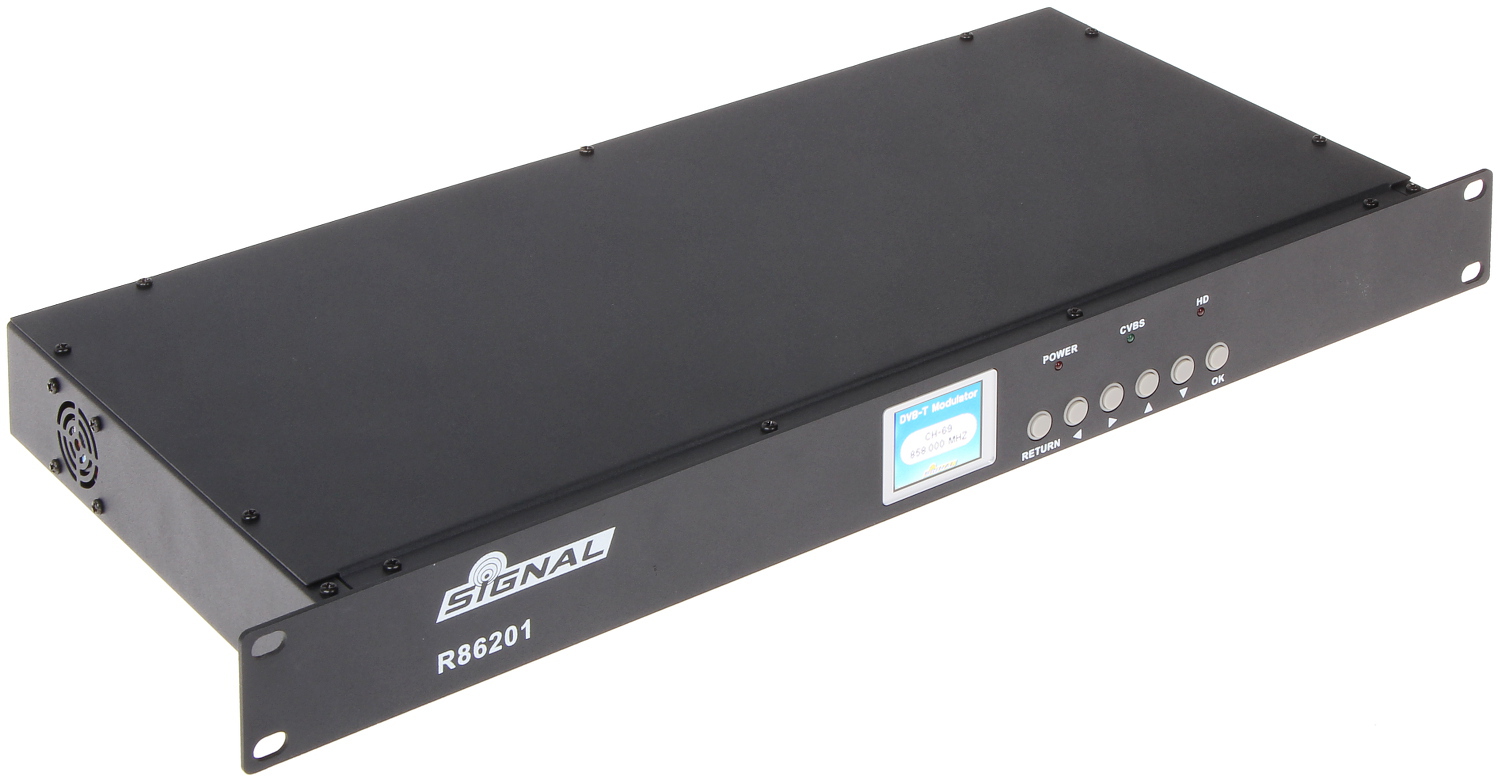

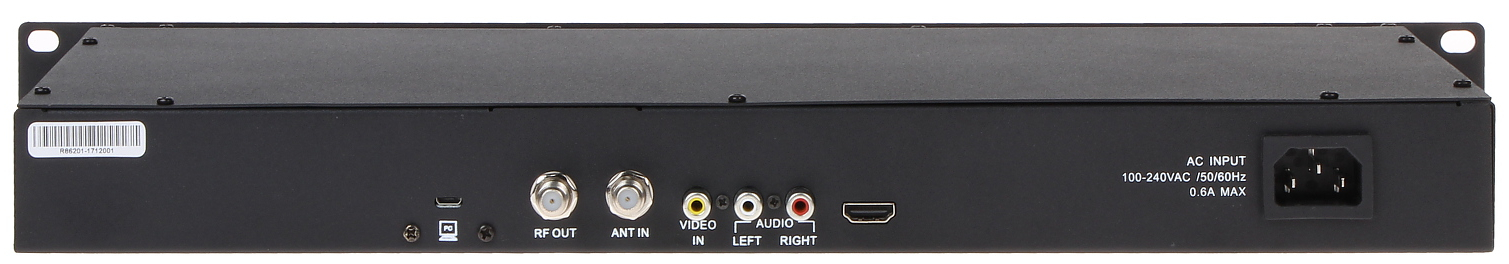

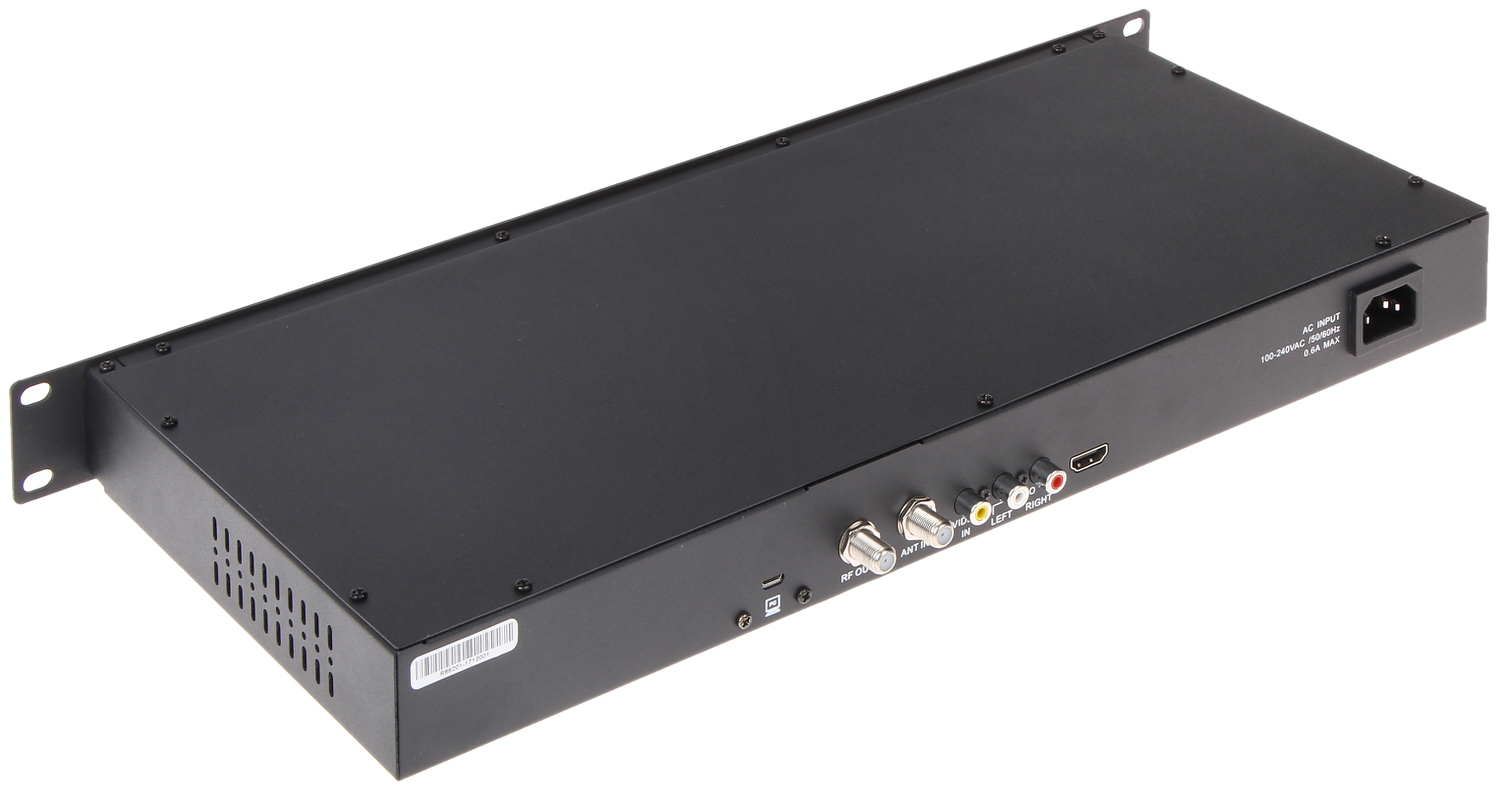

The WS-8901U one-channel modulator is a multi-functional device, which modulates HDMI/CVBS audio/video input signals into DVB-T COFDM standard; Inputs: HDMI, Full HD - 1080p, CVBS - Cinch socket, RF (F), Audio Stereo (2x Cinch) ; Output: RF (F) ;
| Inputs: | |
| Output: | RF (F) |
| Encoding: | H.264 |
| Supported HDMI resolutions: | 480i 576i 1080p |
| RF output level adjustment: | 70 ... 100 dBµV |
| RF output frequency (channels) range: | 50 ... 860 MHz, (5 ... 12, 21 ... 69) |
| Modulation type: | QPSK, 16-QAM, 64-QAM |
| Main features: | |
| Power supply: | 100 ... 240 V AC |
| Weight: | 0.41 kg |
| Dimensions: | 480 x 218 x 44 mm, RACK 19", 1U |
| Guarantee: | 2 years |
Brand:
Signal
