Stop-band: 694 ... 1000 MHz ; Return loss: > 50 dB ; Insertion loss: < 3 dB ; Main features: It is equipped with 24V/100mA DC pass ;
| Working frequency band: | 5 ... 1000 MHz |
| Stop-band: | 694 ... 1000 MHz |

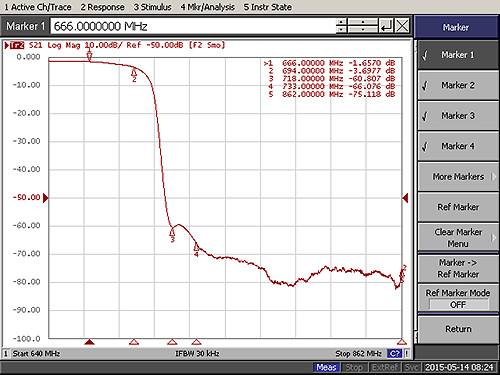

| Return loss: | > 50 dB @ 733 MHz > 50 dB @ 1000 MHz |
| Insertion loss: | < 3 dB @ 5 ... 470 MHz < 3.5 dB @ 694 MHz |
| Main features: | |
| Weight: | 0.07 kg |
| Dimensions: | 79 x 27 x 18 mm |
| Guarantee: | 2 years |
Brand:
Signal
