Receiving channels: 21 ... 48 ; Gain : 11 ... 14 dBi - passive mode - no power, 25 ... 32 dB - active mode - DC 12V power supply ; Main features: Built-in LTE filter, Built-in antenna amplifier with a bypass - operation in passive or active mode ;
Receiving channels:
21 ... 48
Gain :
11 ... 14 dBi - passive mode - no power,
25 ... 32 dB - active mode - DC 12V power supply (power adapter not included)
Polarization:
Horizontal / Vertical - when rotated by 90°
Impedance:
75 Ω
Main features:
Number of elements : 35
Built-in LTE filter,

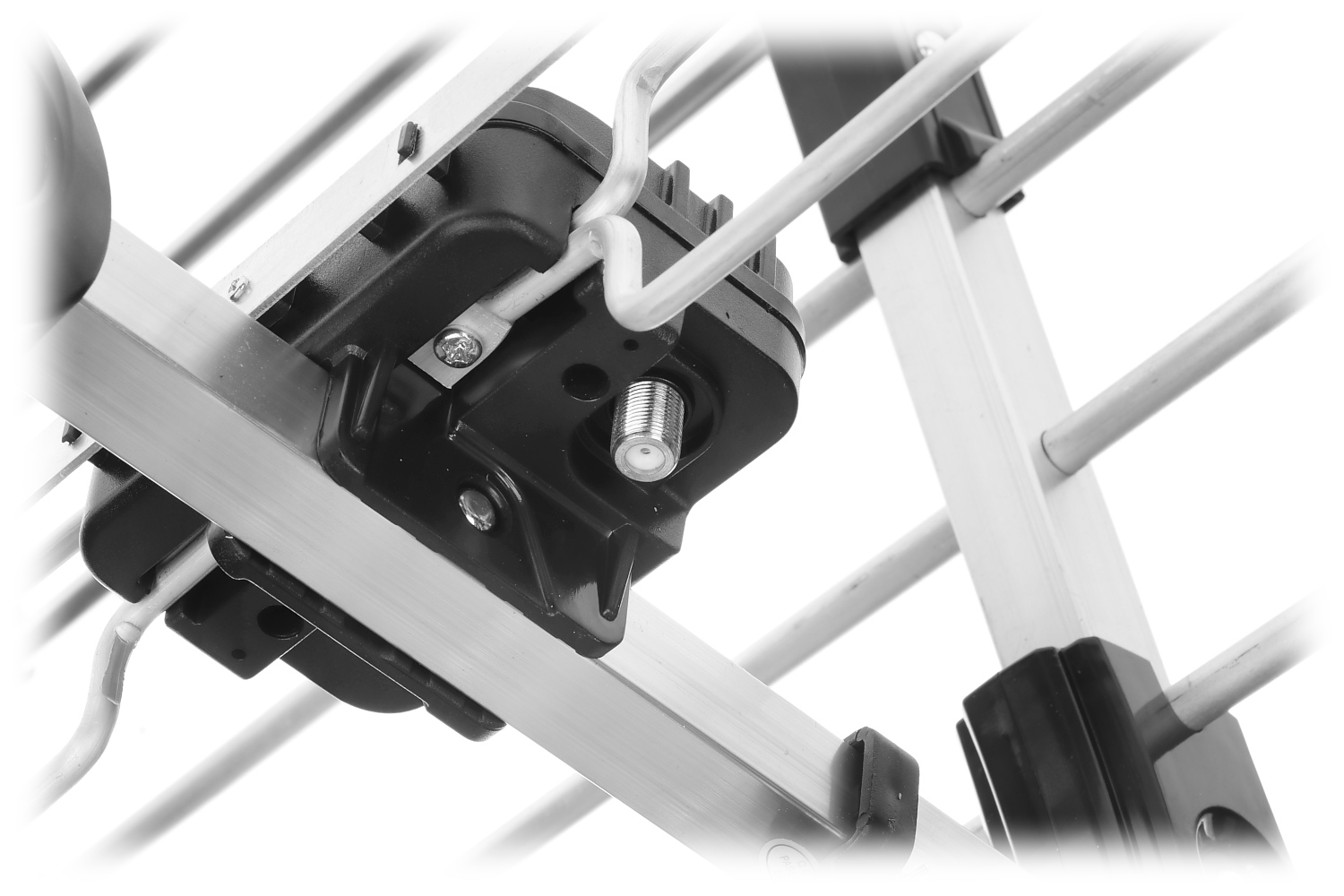

Built-in antenna amplifier with a bypass - operation in passive or active mode,

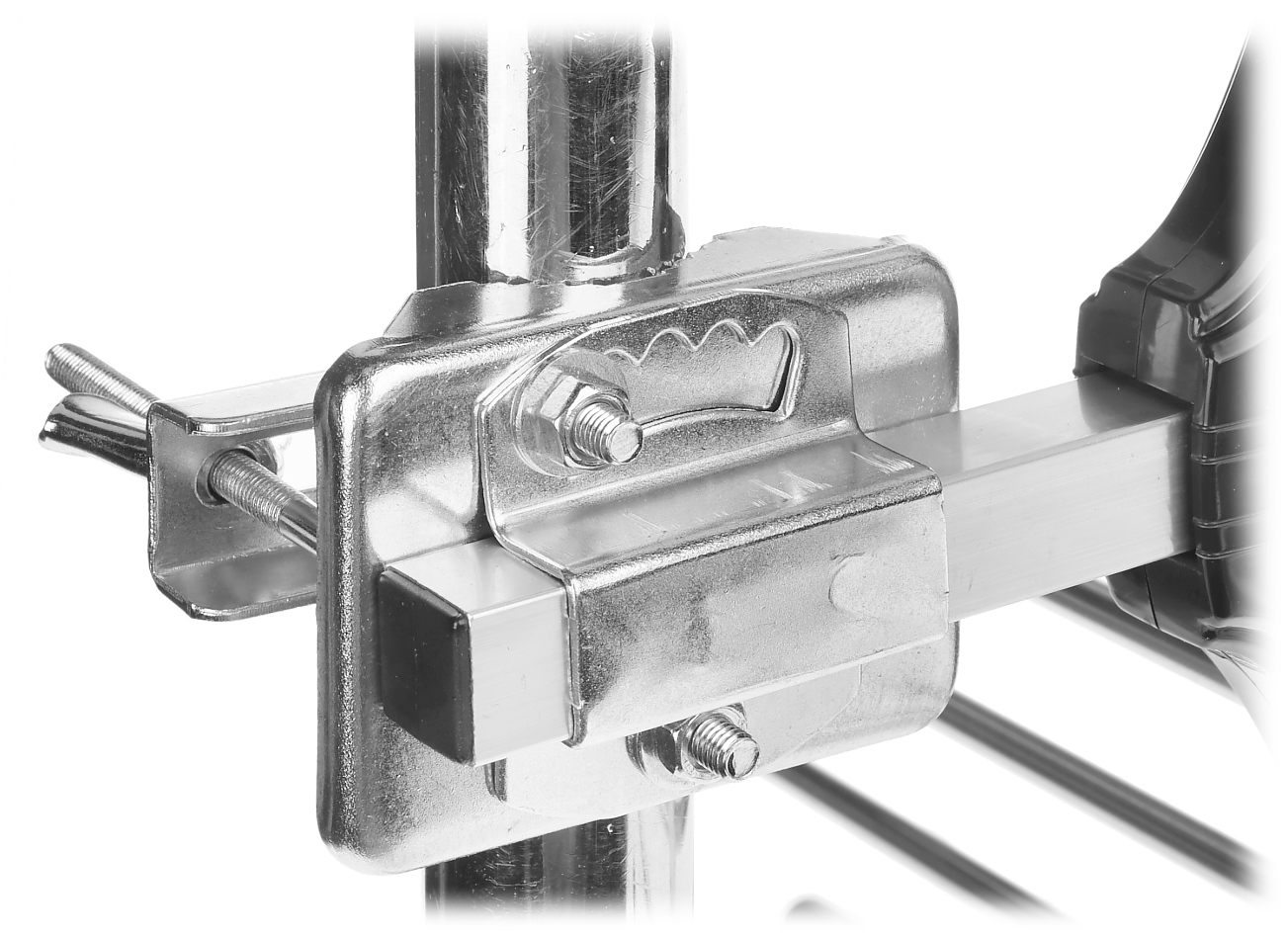

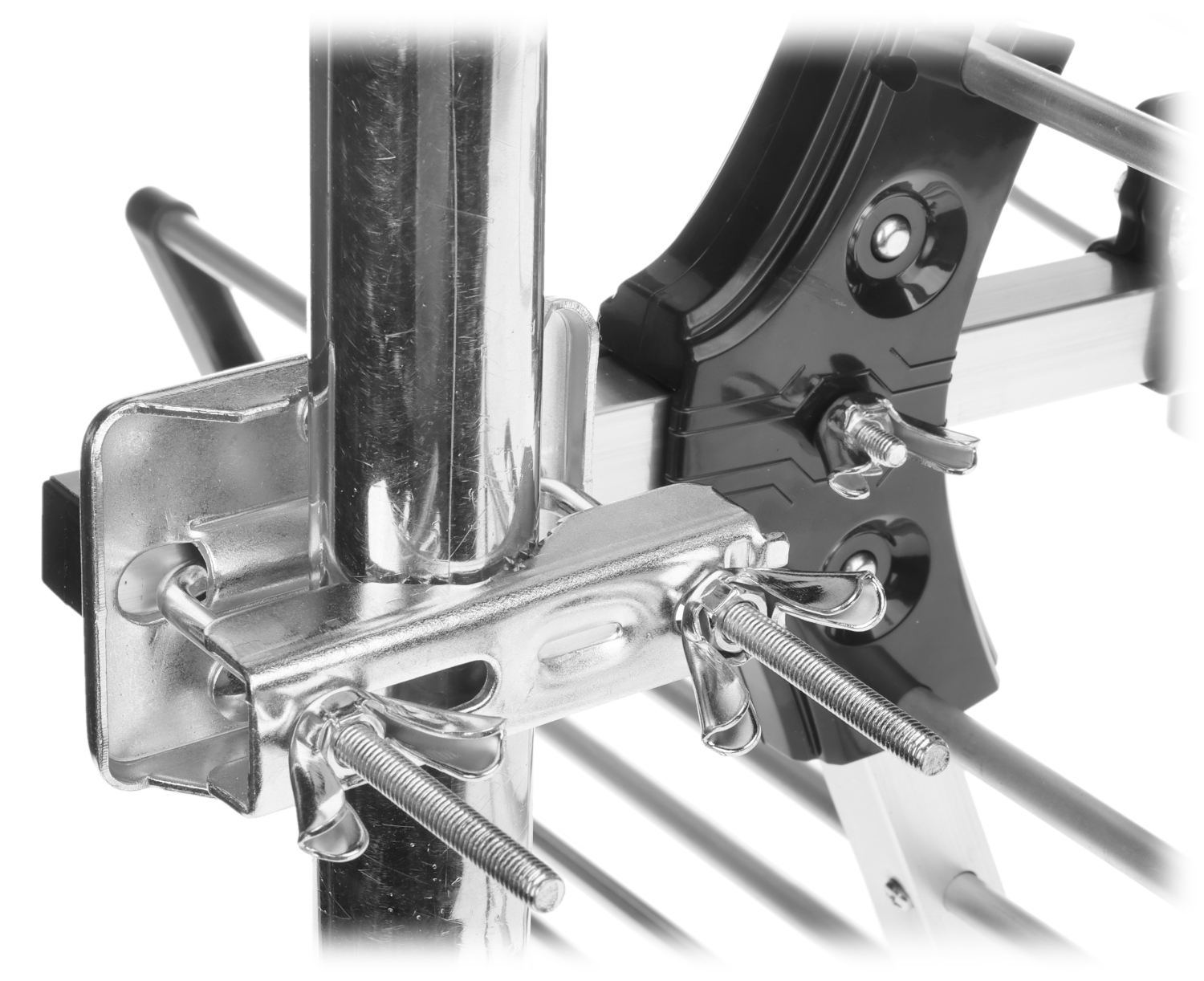

Mast mounting diameter max. Ø 60 mm

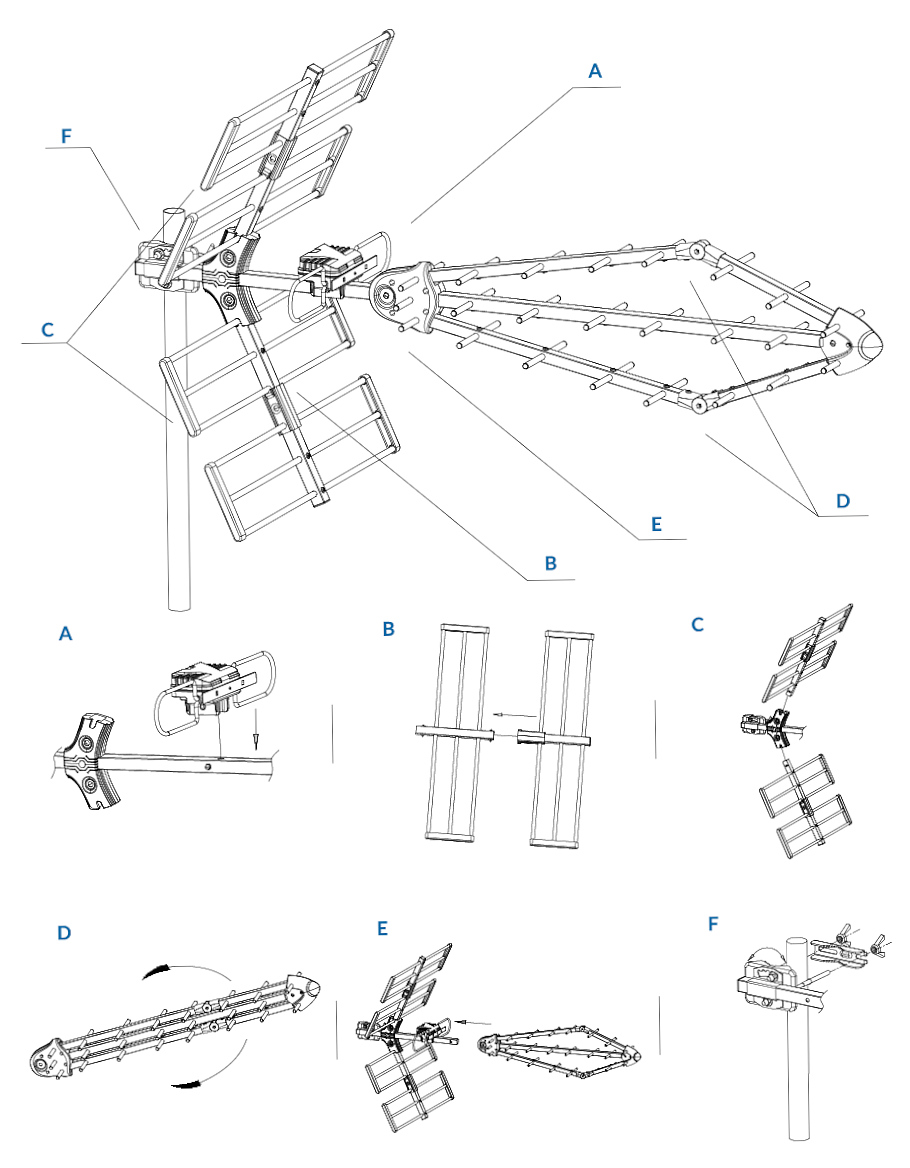

The design of the antenna enables simple, quick assembly without the use of tools
