Number of inputs: 2 ; Number of outputs: 4 ; Rated voltage: 12 ... 48 V DC ; Connector type: wires ; Frequency band: 868.0 MHz ... 868.6 MHz ( ABAX2 ) ; Radio communication range (at open area): ≤ 1200 m ; Main features: Remote control and management, Local control by physical button, Controlling the color, effect, changing time allows any interior arrangement, ;
| Support: | BE WAVE system |
| Application: | (RGB/RGBW/CCT/MONO) 12-48V LED strips |
| Number of inputs: | 2 |
| Number of outputs: | 4 |
| Rated voltage: | 12 ... 48 V DC |
| Power consumption: | 0.2 W (Standby mode) max. 1 W |
| Relay maximal load: | 4 A @ 48 V 8 A @ 24 V |
| Maximal outputs load: | 192 W |

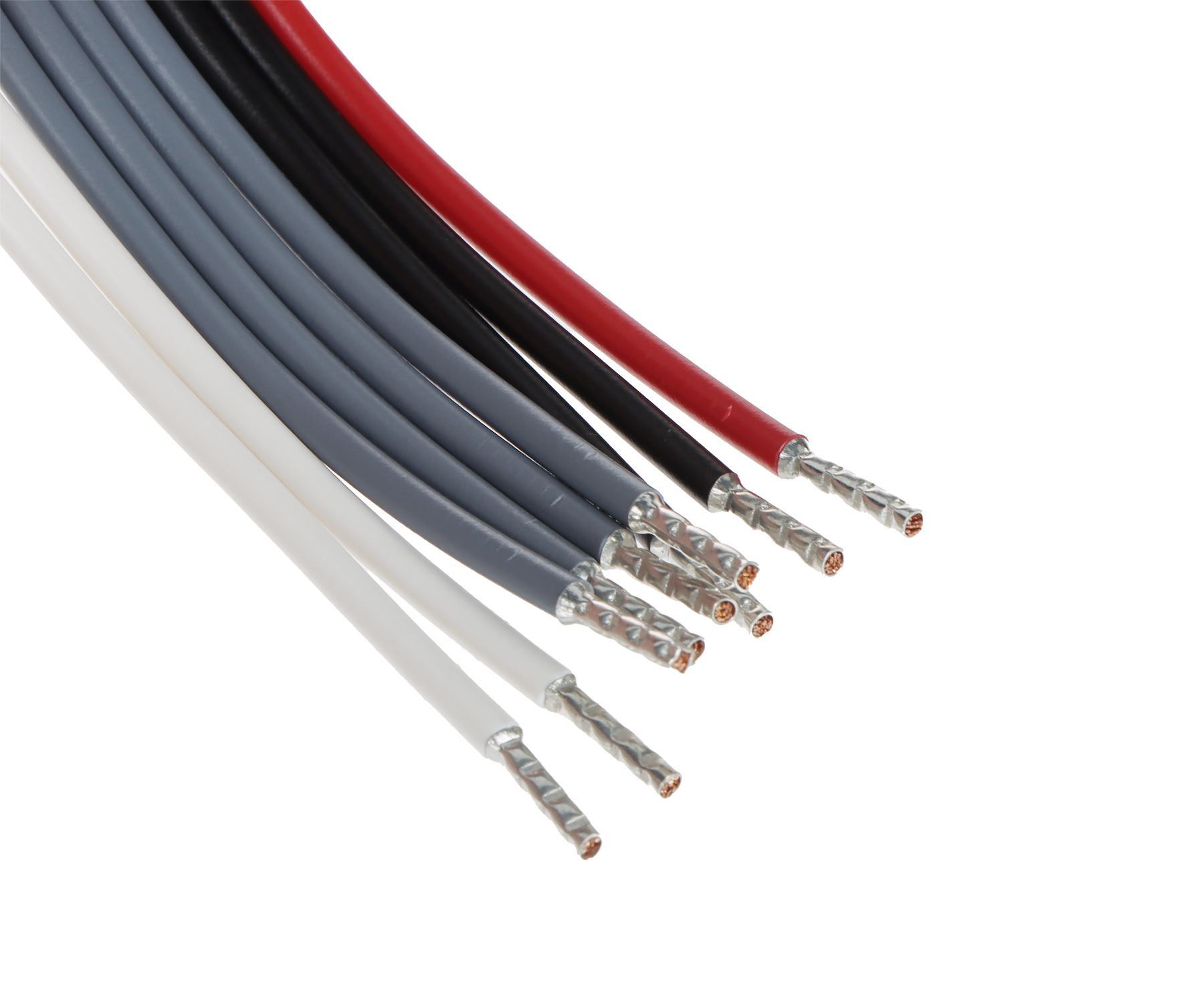

| Connector type: | wires |
| Frequency band: | 868.0 MHz ... 868.6 MHz ( ABAX2 ) |
| Radio communication range (at open area): | ≤ 1200 m |
| Mobile phones support: | Cooperation with the controllers of the Smart-Hub series : |
| Main features: | - possibility to connect a double bell button or a shutter switch - possibility to control any devices in the system |
| Housing: | Plastic |
| Color: | Light gray |
| Environmental class EN 50130-5: | II |
| Operation temp: | -10 °C ... 55 °C |
| Permissible relative humidity: | 93 ± 3 % |
| Weight: | 0.04 kg |
| Dimensions: | 47 x 47 x 22 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 2 years |
Brand:
Satel
