ANT-KO1/1 - 300 m range 1 channel

€45.00

(Включая налог 21%)

Задать вопрос

КОД: 1210902-U87BP

Доступность: 9 шт.

Кол-во:

+ −

Купить в один клик

Описание

type of receiving module: superreaction sensitivity: -100 dBm number of channels: 1 memory capacity: 14 option 113 nominal voltage supply: 12 V DC allowable voltage supply: 10-15 V DC static power consumption: 17 mA maximal power consumption: 40 mA capacity: relay output: 1A/ 30 V DC S transistor output: 0,5A/ 12 V DC sabotage output: 50mA/ 12 V DC relay's operating mode: mono or bistable time scope for the mono mode: ~1s-4min20s operating temperature range: 0 to +40 dimensions (mm): 48*68*26 class: C

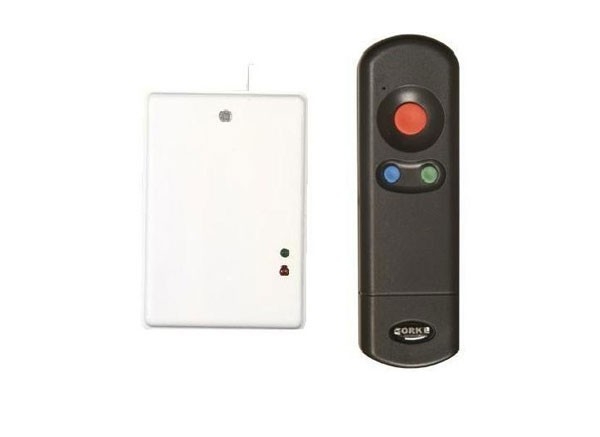

<h3>ANT-KO1/1</h3> <ul> <li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">300 m range</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">1 channel</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">the set contains: the RSU-KO1 receiver and a PUK 303 remote control</div></li></ul> TECHNICAL PARAMETERS OF THE RECEIVER <ul><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">type of receiving module: superreaction</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">sensitivity: -100 dBm</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">number of channels: 1</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">memory capacity: 14 option 113</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">nominal voltage supply: 12 V DC</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">allowable voltage supply: 10-15 V DC</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">static power consumption: 17 mA</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">maximal power consumption: 40 mA</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">capacity: relay output: 1A/ 30 V DC S transistor output: 0,5A/ 12 V DC sabotage output: 50mA/ 12 V DC</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">relay's operating mode: mono or bistable</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">time scope for the mono mode: ~1s-4min20s</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">operating temperature range: 0 to +40</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">dimensions (mm): 48*68*26</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">class: C</div></li></ul> TECHNICAL PARAMETERS OF THE REMOTE CONTROL <ul><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">number of buttons: 3</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">range (m): 300/ 600</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">power: <5mW</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">power supply: 1 battery 9V</div> </li><li> <div class="MsoNormal" style="MARGIN: 0cm 0cm 0pt">dimensions (mm) 123*35*20</div></li></ul> The principal use - in alarm systems as a unit which controls the work of other devices of the system, for example, sensors, blocking zones and detectors, or as a panic button. It can be used to control remotely the work of a wide variety of devices, for example: gates and garage doors, barriers, window blinds, electromagnetic locks, lights, air-condition, etc. The cooperation with other devices - both the receiver and the remote control of the ANT-KO1/2 set cooperate with any other device produced by us. There are no technical limits in creating other sets. The remote control may work with any number of the receivers under the condition that it has been programmed into their memory. The operating range - the following range concerns the open space (without any obstacles, when the receiver and the remote control can „see each other”). If there are any obstacles between the receiver and the sender, one must assume that the range would be reduced: with wood and plaster to 5-20%, brick to 20-40%, reinforced concrete to 40-80% of regular values. If there are many obstacles we advise to configure the sets basing on the receivers of the SH class, to use retransmitters or stronger remote controls. If there are metal obstacles, using the radio systems is not recommended. In such situation, one should consider installing WLC 201 module, which helps to avoid the problem. The double value given in the technical specification of the remote control concerns cooperating with different types of receivers. The first value (the smaller one) concerns superreactive receivers of the RSU type, the second one (the larger one) – with the superheterodyne receivers, for example OPC, IDO. The receiver's memory capacity – in the manufacturing version the receiver from the ANT KO1/2 set has small memory (14 remote controls). To use systems with more than 14 remote controls one needs to use option S (113 senders). One must remember that for these receivers deleting even one remote control from the memory is connected with a necessity to re-programme the ones which are supposed to stay in the system. Because of it, we recommend using identifying receivers (for example IDO 500) in the large systems (several dozen or even hundred remote controls) because they allow for deleting the senders from the receiver's memory individually. The receiver's operating mode - the monostable mode – pressing the button opens the relay for a set time. The bistable mode – with each button press the relay flips on the other state. The communication hopping code – the radio transmission between the sender and the receiver is based on the hopping code (KEELOQ® firmy Microchip Technology Inc.), which guarantees a high level of safety while using and resistance to radio signals coming from other devices. Each sender has its own individual code. The receiver reacts only to those transmissions which come from the senders programmed in its memory. <span style="FONT-SIZE: 8pt; FONT-FAMILY: Verdana; mso-bidi-font-family: 'Times New Roman'; mso-fareast-font-family: 'Lucida Sans Unicode'; mso-fareast-language: #00FF; mso-ansi-language: EN-GB; mso-bidi-language: AR-SA" lang="EN-GB">Frequency 433,92 MHz – the devices work on the frequency 433,92 MHz. This bandwidth does not require any special permissions and concessions for using it.
