Key Features • Max. 4 trigger lines and 16 zones • Selectable frequency band • Links up to 4 separate-mounted speed domes for auto target-tracking • Multiple radars can link to 1 speed dome • Up to 4 targets can be tracked by 4 speed domes respectively • Function of radar-speed dome linkage: mandatory switch of speed dome tracking target ,speed dome parking action, andfield of view display for each speed dome • Capable to detect ultra-slow movements, squatting movements or creeping • Displays the distance, direction, and position of the detected object on the client software • Selectable applications including open mode, shrub mode, and custom mode (with adjustable sensitivity) • 24/7 all-weather working properly • Exception alarm: communication failure alarm, anti-moving alarm and tampering alarm
|
Specifications |
||
|
Modulation: |
Frequency Modulated Continuous Wave |
|
|
Detection range: |
human: 120 m/ vehicle: 150 m |
|
|
Horizontal angle: |
120° |
|
|
Range measurement accuracy: |
± 1.5m |
|
|
Vertical angle: |
26° |
|
|
Angle measurement accuracy: |
± 1° |
|
|
Velocity range: |
- 9.8 to + 9.8 m/s |
|
|
Max. target number: |
64 |
|
|
Frequency: |
24.050~24.250 GHz |
|
|
Transmission power: |
< 20 dBm (100mW) |
|
|
Zone: |
16 |
|
|
Relay output NO/NC: |
3-channel : 0.5 A/125 VAC, breakdown voltage : 1 KV 1-channel : 10 A/240 VAC, breakdown voltage : 2.5 KV |
|
|
Network protocol: |
Network protocol: HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH Standard ISAPI protocol |
|
|
Network interface: |
1 RJ45 10M/100M self-adaptive, PoE |
|
|
Power interface: |
802.3at standard PoE or 12 VDC |
|
|
Reset button: |
1 |
|
|
Operation temperature: |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
|
Operation humidity: |
10% to 90% |
|
|

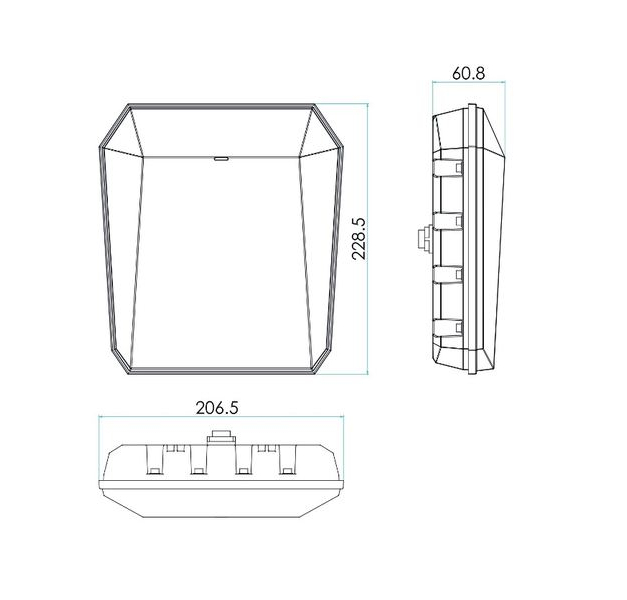

Dimension (W × H × D): |
206 mm × 228 mm × 61 mm (8.11" × 8.98" × 2.40") |
|
|
Consumption: |
< 8 W |
|
|
Protection level: |
IP67 & IK09 |
|
|
Weight: |
1.9 kg (4.2 lb) |
|
|
Anti-corrosive level: |
NEMA 4X |
|
|
Material: |
Front panel: PC+IBS / Rear panel: metallic aluminum |
|
|
Color: |
White |
|
|
Installation: |
Installation height: 2 m to 3 m (78.7 " to 118.1 ") (Recommended: 2.5 m (98.4 ") ) |
|
