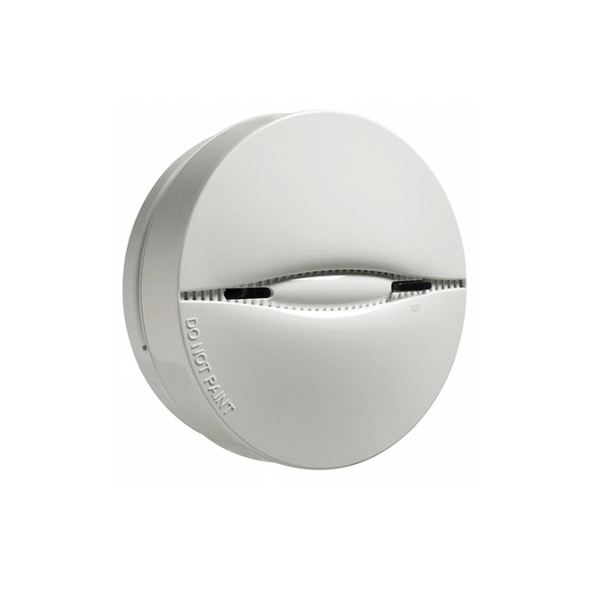

• Тип датчика: Беспроводной дымовой датчик • Источник питания: 3V CR123A батарейка (Срок службы батареи - 3 года) • Сирена: Встроенная 85 дБ • Рабочая частота: 868 МГц
|
Model |
PG-8926 |
|
Detector Type |
Photoelectric |
|
Alarm Sound |
85dB at 3m |
|
Cover Range |
50-100 cubic meters |
|
Power Source |
3V CR123A lithium batteries or CR17450 batteries, life expectancy – 3 years |
|
Current Drain |
22 µA standby, 200mA max in operation |
|
Smoke Density |
0.09 – 0.14 dB/m |
|
LED Switch |
LED enable (red LED lights for 2 sec upon alarm detection) |
|
Frequency Band |
868 MHz |
|
Communication Protocol |
PowerG / Tamper alert reported when a tamper event occurs and in any subsequent message, until the tamper switch is restored |
|
Alarm Report |
In the alarm condition, the detector sends the alarm event to the control panel. When the alarm condition is restored, the detector sends an alarm restore indication (red LED blinks once per secons) |
|
Battery Supervision |
Automatic transmission of battery status data as part of any transmitted message |
|
Operating Temperature |
From -10°C to +55° C (RH up to 93%) |
|
Dimensions |
120 x 58 mm |
