Application: Indoor ; Sensor type: Passive Infra Red (PIR) and microwave (MW) ; Range: max. 20 x 24 m ; Detection angle: 90 ° ; Protection class (Grade): EN 50131-2-4, Grade 3 ; Main features: Remote management ; Color: White ;
| Application: | Indoor |
| Pyroelectric sensor: | quadruple |
| Sensor type: | Passive Infra Red (PIR) and microwave (MW) |
| Recommended installation height: | 2.4 m |

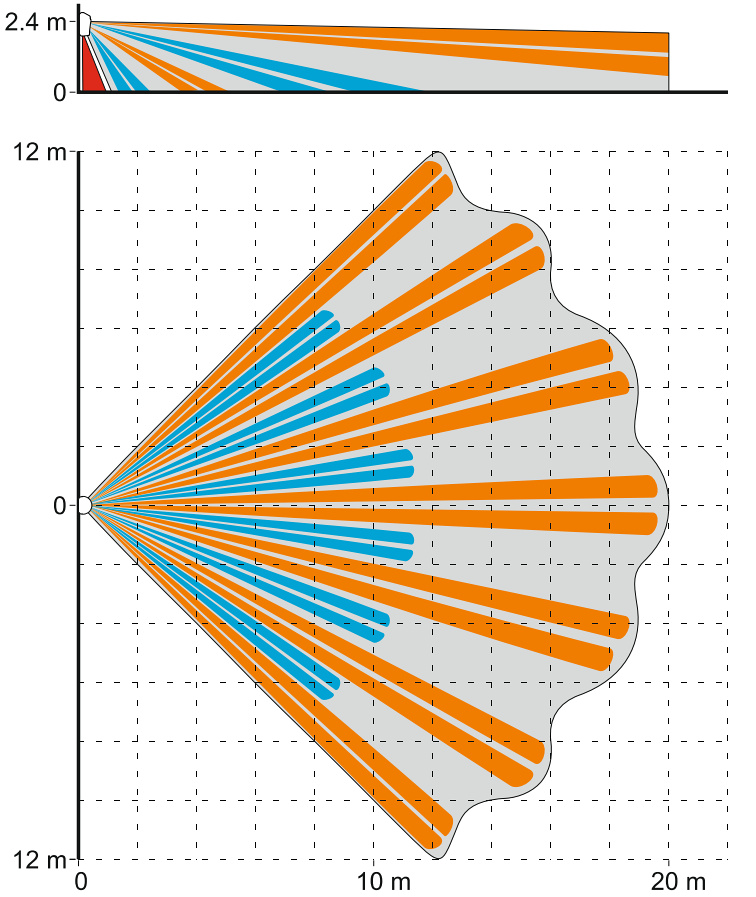

| Range: | max. 20 x 24 m |
| Detection angle: | 90 ° |
| Sensitivity adjustment: | Separate, smooth sensitivity adjustment for each sensor |

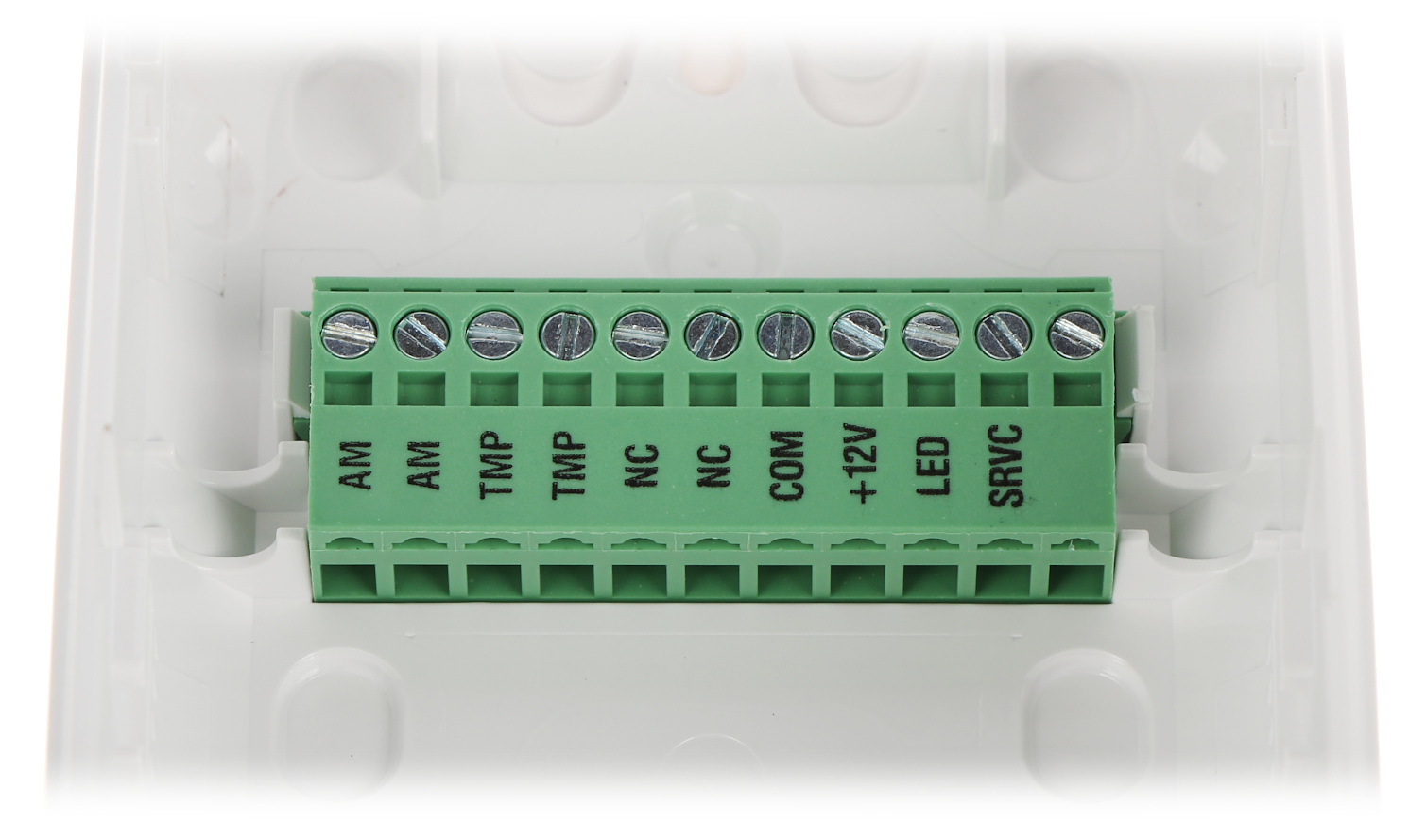

| Alarm output: | NC, 2EOL / NC - Set with jumpers |
| Tamper output: |  |
| LED indication: | Remote on/off of the LED indicator and choice of lighting color (7 colors available) |
| Microwave frequency band: | 24.125 GHz |
| Pet immunity: |  |
| Antimask feature: | |
| Alarm time: | 2 s |
| Maximal outputs load: | |
| Digital temperature compensation: | |
| Target speed range: | 0.2 ... 3 m/s |
| Protection class (Grade): | EN 50131-2-4, Grade 3 |
| Environmental class EN 50130-5: | II |
| Power supply: | 12 V DC / 85 mA (max) |
| Main features: | |
| Operation temp: | -10 °C ... 55 °C |
| Color: | White |
| Weight: | 0.11 kg |
| Dimensions: | 137 x 62 x 42 mm |
| Manufacturer / Brand: | SATEL |
| Guarantee: | 5 years |
