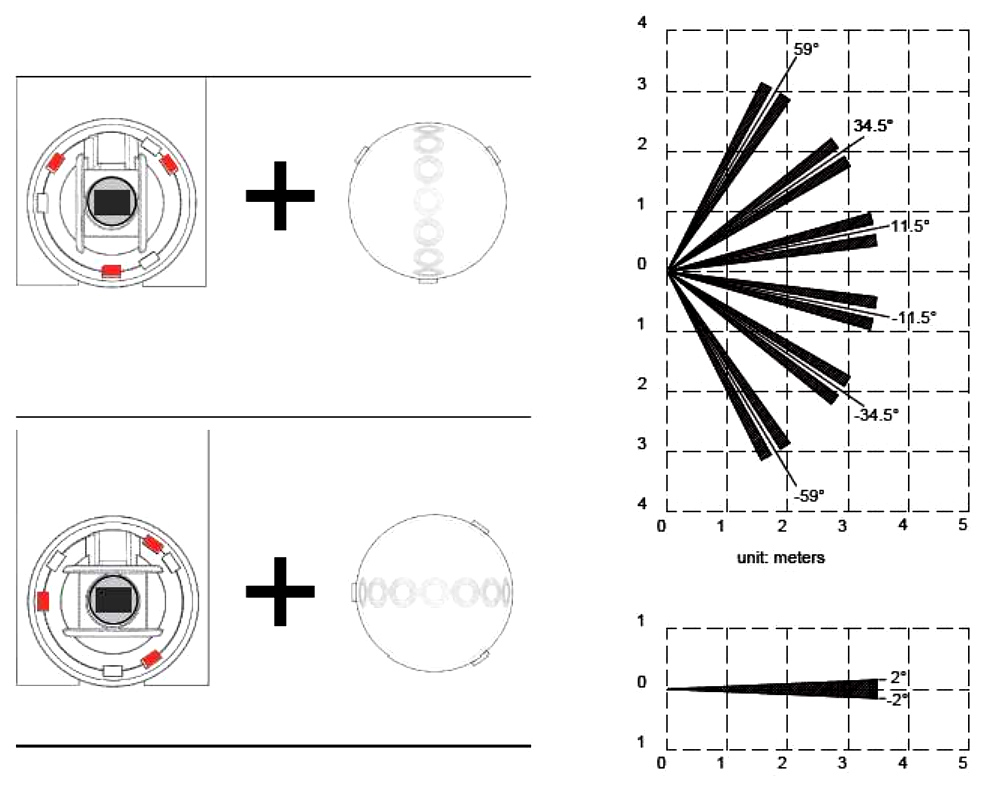

Application: Indoor ; Sensor type: Passive Infra Red (PIR) and microwave (MW) ; Range: 3.5 m ; Detection angle: 4 ° ; Main features: The adjustable lens allows the detector to be positioned as a horizontal or vertical curtain ; Color: White ;
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) and microwave (MW) |
| Range: | 3.5 m |
| Detection angle: | 4 ° |
| Sensitivity adjustment: |  |
| Autodiagnostics: | |
| Alarm outputs: | NC |
| Alarm time: | 2 s |
| Pet immunity: |  |
| Antimask feature: | |
| Prealarm feature: | |
| Maximal outputs load: | 60 V DC / 0.1 A |
| Digital temperature compensation: | |
| Main features: | |
| Protection class (Grade): | EN 50131-2-4 Grade 2 |
| Color: | White |
| Power supply: | 9.5 ... 15 V DC |
| Maximal current consumption: | 18 mA / 28 mA (alarm) |
| Operation temp: | -10 ... 55 °C |
| Weight: | 0.06 kg |
| Dimensions: | 37 x 130 x 34 mm |
| Manufacturer / Brand: | VIDICON |
| Guarantee: | 2 years |
Brand:
Vidicon
