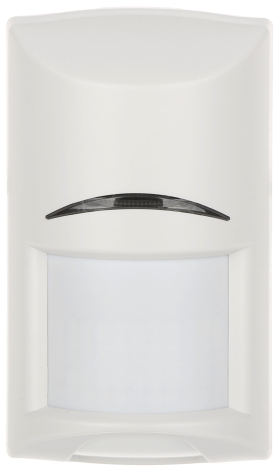

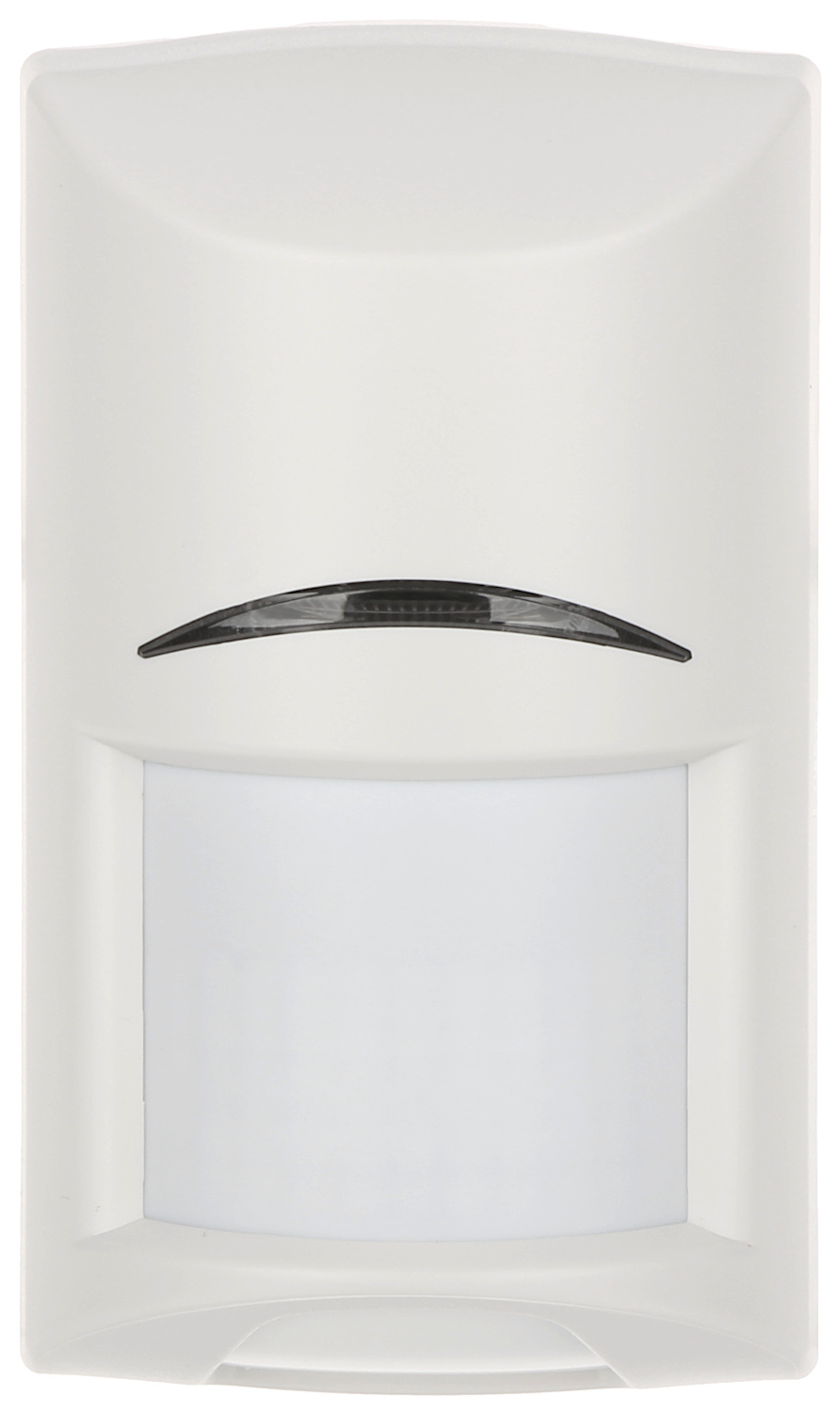

DUAL TECHNOLOGY DETECTOR MICROWAVE + PIR ISC-BDL2-WP12GE BOSCH
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Indoor ; Sensor type: Passive Infra Red (PIR) and microwave (MW) ; Range: 12 x 12 m ; Detection angle: 94 ° ; Pet immunity: ≤ 45 kg ; Main features: "TriFocus" optics ;
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) and microwave (MW) |
| Range: | 12 x 12 m |
| Detection angle: | 94 ° |
| Sensitivity adjustment: | By potentiometer - Microwave (MW) |
| Autodiagnostics: |  |
| Alarm outputs: | NC |
| Pet immunity: | ≤ 45 kg |
| Prealarm feature: |  |
| Maximal outputs load: | 25 V DC / 0.1 A |
| Digital temperature compensation: | |
| Power supply: | 9 ... 15 V DC |
| Maximal current consumption: | 9 mA |
| Operation temp: | -10 ... 55 °C |
| Main features: | "TriFocus" optics |
| Protection class (Grade): | EN 50131-2-4 Grade 2 |
| Weight: | 0.08 kg |
| Dimensions: | 60 x 105 x 44 mm |
| Guarantee: | 2 years |
Brand:
Bosch
