• Тип датчика: PIR(Пассивный инфракрасный датчик) • Дальность обнаружения: 12м • Угол обзора: 90° • Режим PET: 38кг • Кронштейн: Входит в комплект • Источник питания: 3V CR123A батарейка (Срок службы батареи - 3 года) • Рабочая частота: 868 МГц
|
Model |

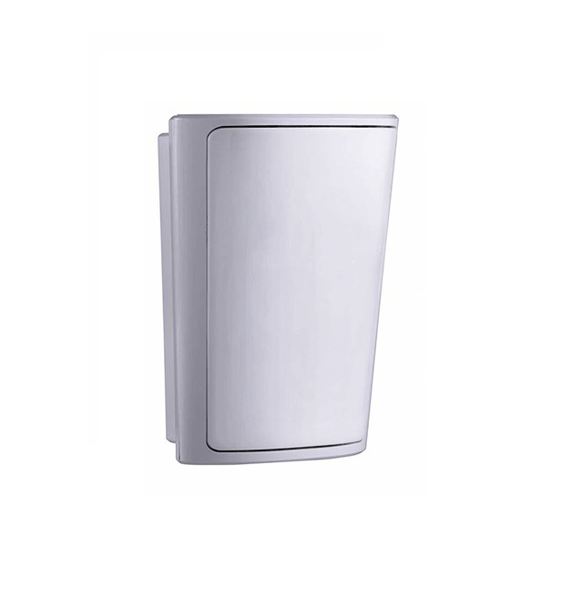

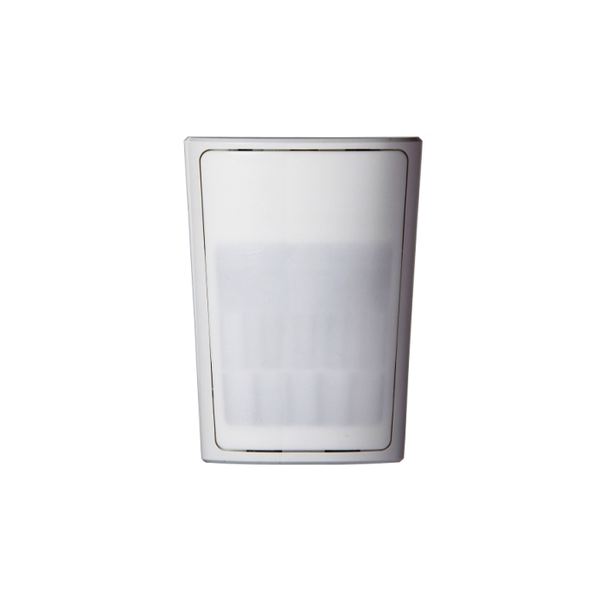

PG-8914P |
|
Max Coverage |
At least 12m / 90° |
|
Detector Type |
Dual element low-noise pyroelectric sensor |
|
PET Immunity |
Up to 38kg |
|
Input Power |
3V CR123A lithium batteries, life expectancy – 8 years |
|
Low Battery Threshold |
2.4V |
|
Alarm Period |
2 sec |
|
LED Switch |
LED enable (red LED lights for 2 sec upon alarm detection) |
|
Frequency Band |
868 MHz |
|
Communication Protocol |
PowerG / Tamper alert reported when a tamper event occurs and in any subsequent message, until the tamper switch is restored |
|
Supervision |
Signaling at 4-min intervals |
|
Mounting |
Surface or corner mounting / 1.8 – 2.4m |
|
Horizontal / Vertical Adjustments |
-45° to +45° in 5° steps for horizontal / 0° to -10° in 2.5° steps for vertical |
|
Operating Temperature |
From -10°C to +50° C (RH up to 75%) |
|
Dimensions |
83 x 61 x 42 |
|
Weight |
90g |
