Система охраны периметра Forteza Tribo-S с сенсорным шнуром для защиты всех видов ограждений • 4 зоны обнаружения • Длина шнура <300 м • Класс безопасности IP 55 • Безупречный срок эксплуатации до 8 лет • Возможность установки на все виды заборов.
|
Detection zones |
2 or 4 |
|
Maximum length of the sensorial wire |
< 300 m |
|
Maximum length of the standard wire |
< 300 m |
|
Fence height |
depending on the wire position |
|
Protection class |
IP 55 |
|
Protection norm |
> 98% |
|
Interface |
|
|
Operation temperature of the perimeter security system |
-40°C do + 50°C |
|
Electricity consumption |
< 25mA |
|
Power supply |
10 … 28 V DC |
|
Dimensions (controller) |
216×120×55 mm |
The system is intended for the protection of any type of fences from
climbing over or destruction. An intruder will be detected before the
entering in to the important object territory. Security personnel can
respond immediately to violations and to stop the intruder before he
committed a crime.
The system is used on sites with irregular perimeter shape, i.e. when it
is notreasonable from the economic point of view to use microwave
sensors or it is impossible to provide the exclusion zone for microwave
sensors. The sites include industrial facilities, airports, sites
offorce structure, power plants, private premises, etc.
Fence types: : light welded mesh; razorwire; wrought
iron; bar; NYLOFOR; barbedwire; corrugate metal; wooden;brick;
concertina coil; concrete fence;and other.

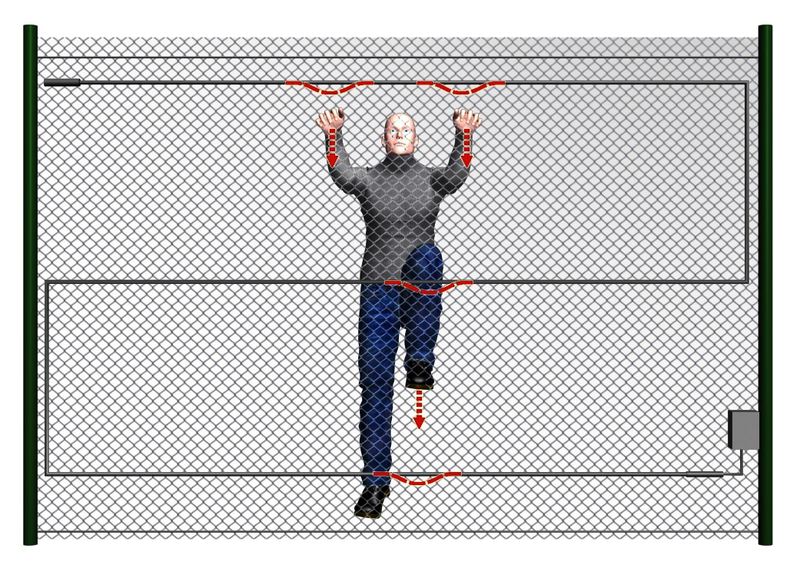

HOW DOES IT WORKS?
The
detector is fully passive. The system has four wings. Every wing
contains sensing elements fixed to the fence.The Signal Processing Unit
registers the electrical charges generated in the sensitive element as a
result of intrusion attempt. The detector activates the alarm, if the
amount of received electrical charges exceeds the threshold level.
WHY TO CHOOSE IT?
USER FRIENDLY – The system are easy to mount and adjust and do not require significant expenses on seasonal maintaining.
COST OPTIMIZATION
- two models (Tribo-S 2 and the Tribo-S 4) presence allows the customer
to optimize the cost of organizing the shorter perimeter protection,
where it is sufficient to safeguard zones 2 - selecting a cheaper model
(Tribo-S 2).
HIGH QUALITY
– we use up-to-date electronic components, which has mean lifetimeup to
8 years. Each piece of products is subjected to 100% final inspection.
HIGH EFFECTIVE ALGORITHMS
–we use up-to-date effective algorithms for digital signal processing.
As a result, we achieved the maximal interference immunity and

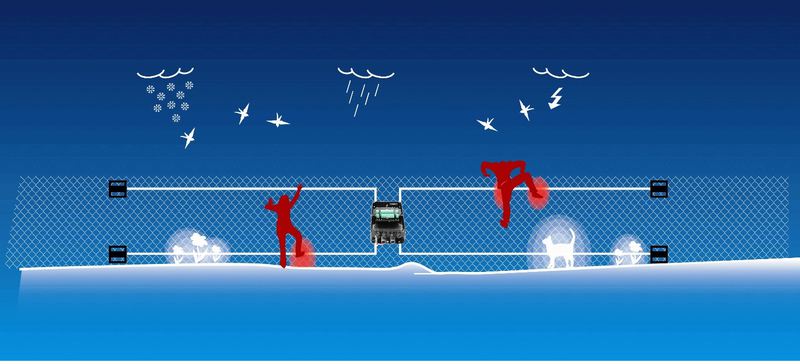

reliability of the signal processing. The system are immune to the
influence of rain, snow, fog, lightning,icing, solar radiation,
electromagnetic field up to 500 kV, vegetation, birds and animals.
HIGH LEVEL OF INTEGRATION
– we make it easy to combine our sensors with many modern integrated
security systems and popular control panel. We use traditional dry relay
contacts as well as RS-485 and USB interfaces to control the sensors
and to transmit the alarm signal.

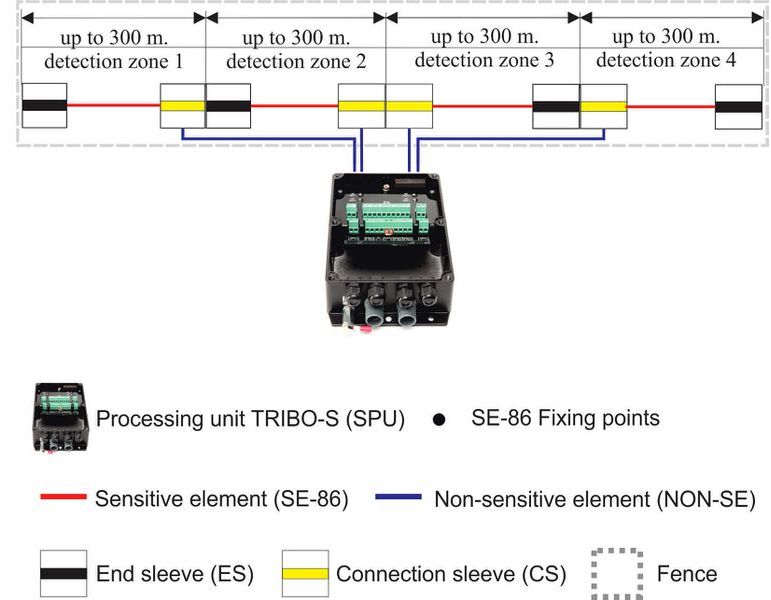

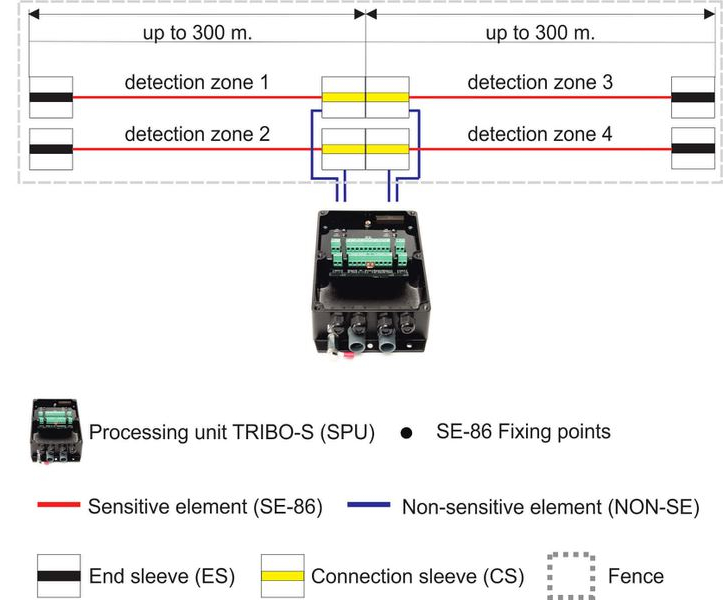

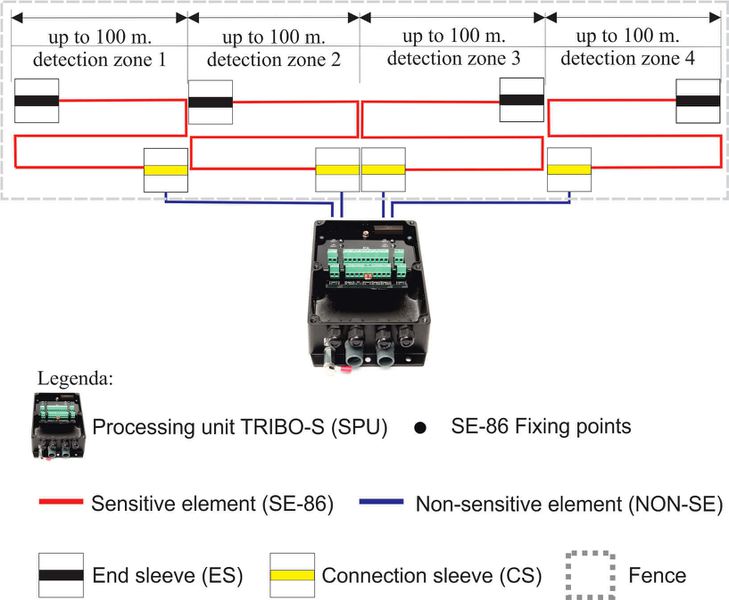

USE SENSITIVE ELEMENT FOR DETECTION ZONES
Variant 1
Variant 3
