Number of beams: | 2 |
Detection method: | Programmable number of beams, which interruption trigger an alarm |
Outdoor detection range: | 10 m |
Indoor detection range: | 20 m |
Beam characteristics: | Transmission encoding |
Interruption time (blocking of the beam): | 40 ... 1000 ms |
Alarm period: | 2 s |
Tamper contact: | NC |

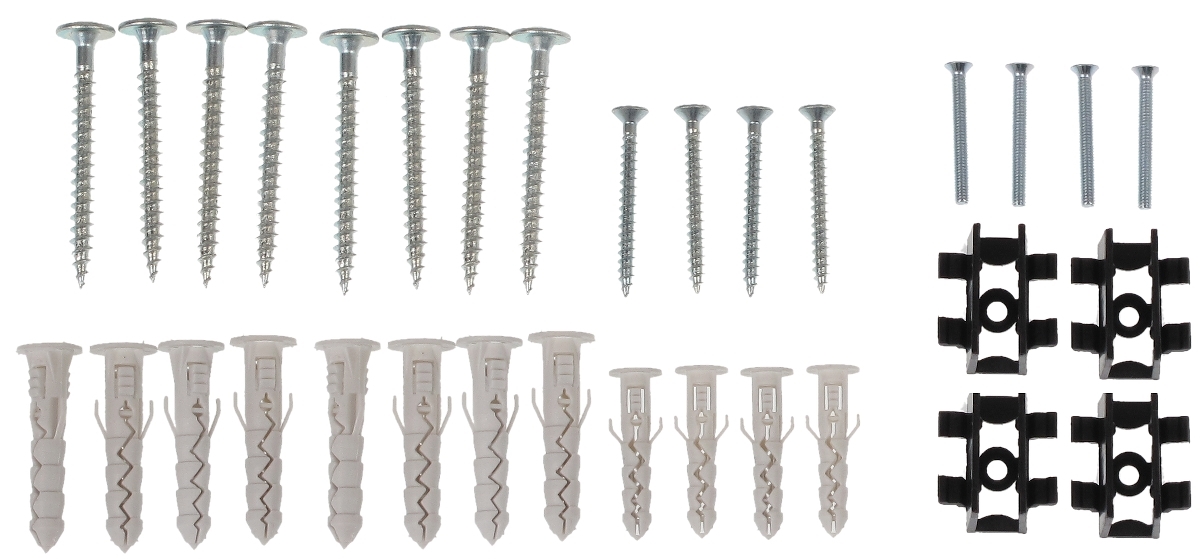

Assembly: | Possibility to mount to the wall |
Power supply: | 12 V DC |
Current consumption: | max. 60 mA |
Angles adjustment range: | ![]() |
Operation temp. / Relative humidity: | -25 °C ... 55 °C / max. 95 % |
Main features: | |
Color: | Silver |

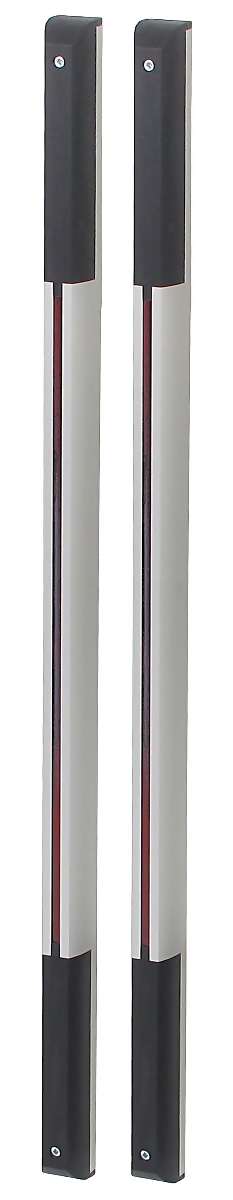

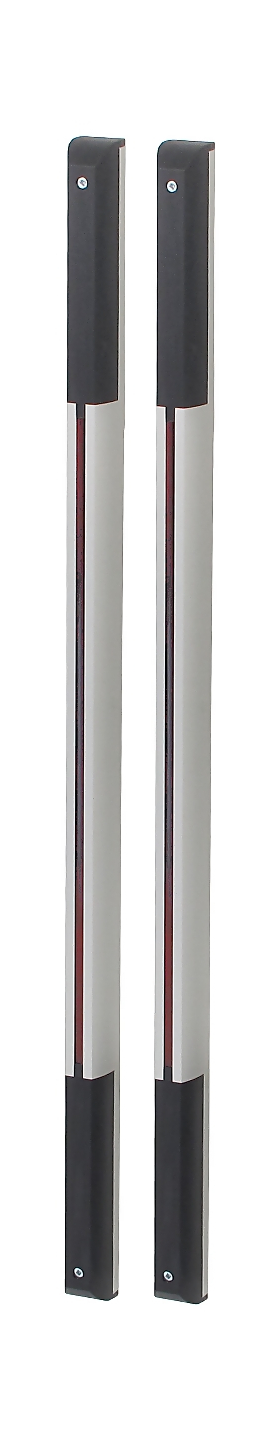

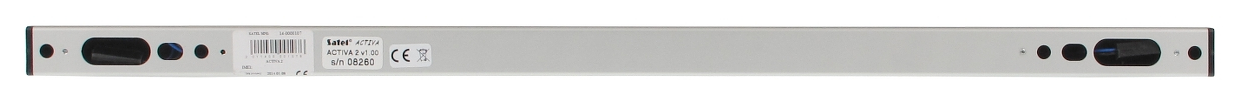

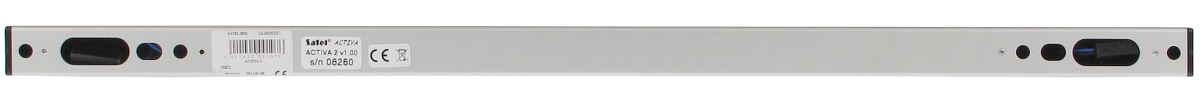

Transmitter or receiver dimensions: | 520 x 23 x 21 mm |
Transmitter and receiver weight: | 0.42 kg |
Manufacturer / Brand: | SATEL |
Guarantee: | 2 years |
