Number of beams: 3 ; Outdoor detection range: 100 m ; Indoor detection range: 300 m ; Current consumption: max. 80 mA ;
| Number of beams: | 3 |
| Detection method: | 3 beams blocked simultaneous |
| Outdoor detection range: | 100 m |
| Indoor detection range: | 300 m |
| Beam characteristics: | Infrared modulated pulse triple beam |
| Interruption time (blocking of the beam): | 50 ... 700 ms (selectable) |
| Alarm period: | 2 s ± 1 (nominally) |
| Alarm output: | Relay (AC/DC 30V max. 0.3A) |
| Tamper contact: | N.C. opened during remove the cover (transmitter and receiver) |
| Angles adjustment range: | ± 10 ° vertical ± 90 ° horizontal |
| Assembly: | on the wall or pole |
| Power supply: | 12 ... 24 V DC |
| Current consumption: | max. 80 mA |
| "Index of Protection": | IP65 |
| Operation temp. / Relative humidity: | -25 °C ... 55 °C / max. 95 % |
| Main features: | |

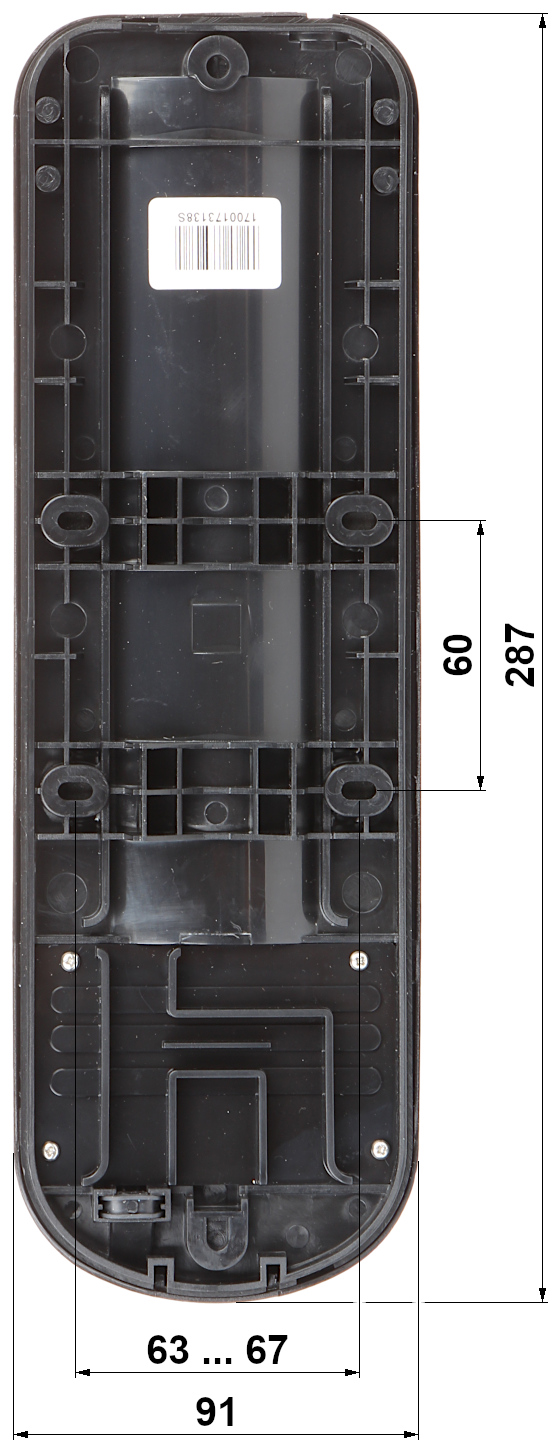

| Transmitter or receiver dimensions: | 287 x 91 x 110 mm |
| Transmitter and receiver weight: | 1.25 kg |
| Guarantee: | 2 years |
Brand:
Delta Alarm
