Number of beams: 1 ; Outdoor detection range: 3 ... 15 m ; Indoor detection range: 3 ... 20 m ; Current consumption: 20 mA - Transmitter, 18 mA - Receiver ;
| Number of beams: | 1 |
| Detection method: | 1 beam blocked |
| Outdoor detection range: | 3 ... 15 m |
| Indoor detection range: | 3 ... 20 m |
| Beam characteristics: | 940 nm - Modulated Infra-Red stream |
| Alarm period: | ≥ 0.1 s |
| Tamper contact: |  |
| Angles adjustment range: | |

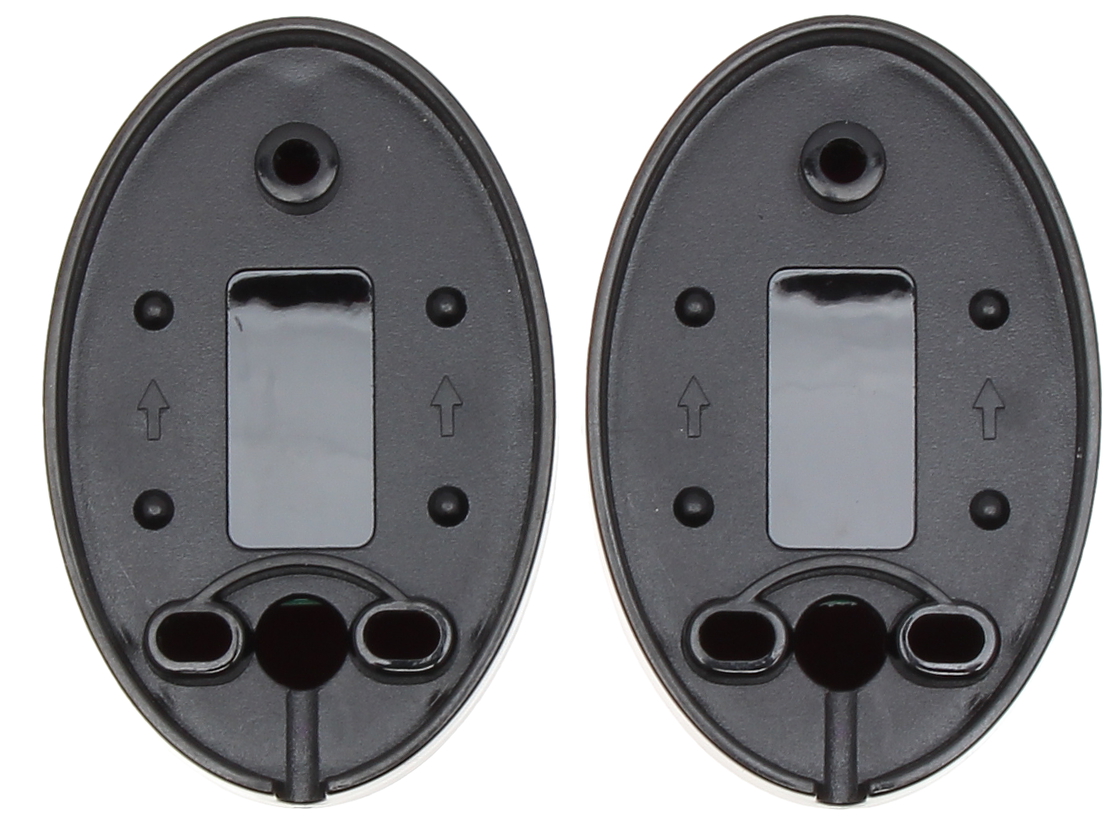

| Assembly: | on the wall or pole |
| Power supply: | 9 V ... 16 V DC / AC - selectable by switch |
| Current consumption: | 20 mA - Transmitter , 18 mA - Receiver |
| Alarm output: | Relay (AC/DC 36V max. 1A) |
| "Index of Protection": | IP66 |
| Operation temp. / Relative humidity: | -25 °C ... 55 °C / max. 95 % |
| Transmitter or receiver dimensions: | 49 x 76 x 22 mm |
| Transmitter and receiver weight: | 0.036 kg |
| Guarantee: | 2 years |
Brand:
Delta CCTV
