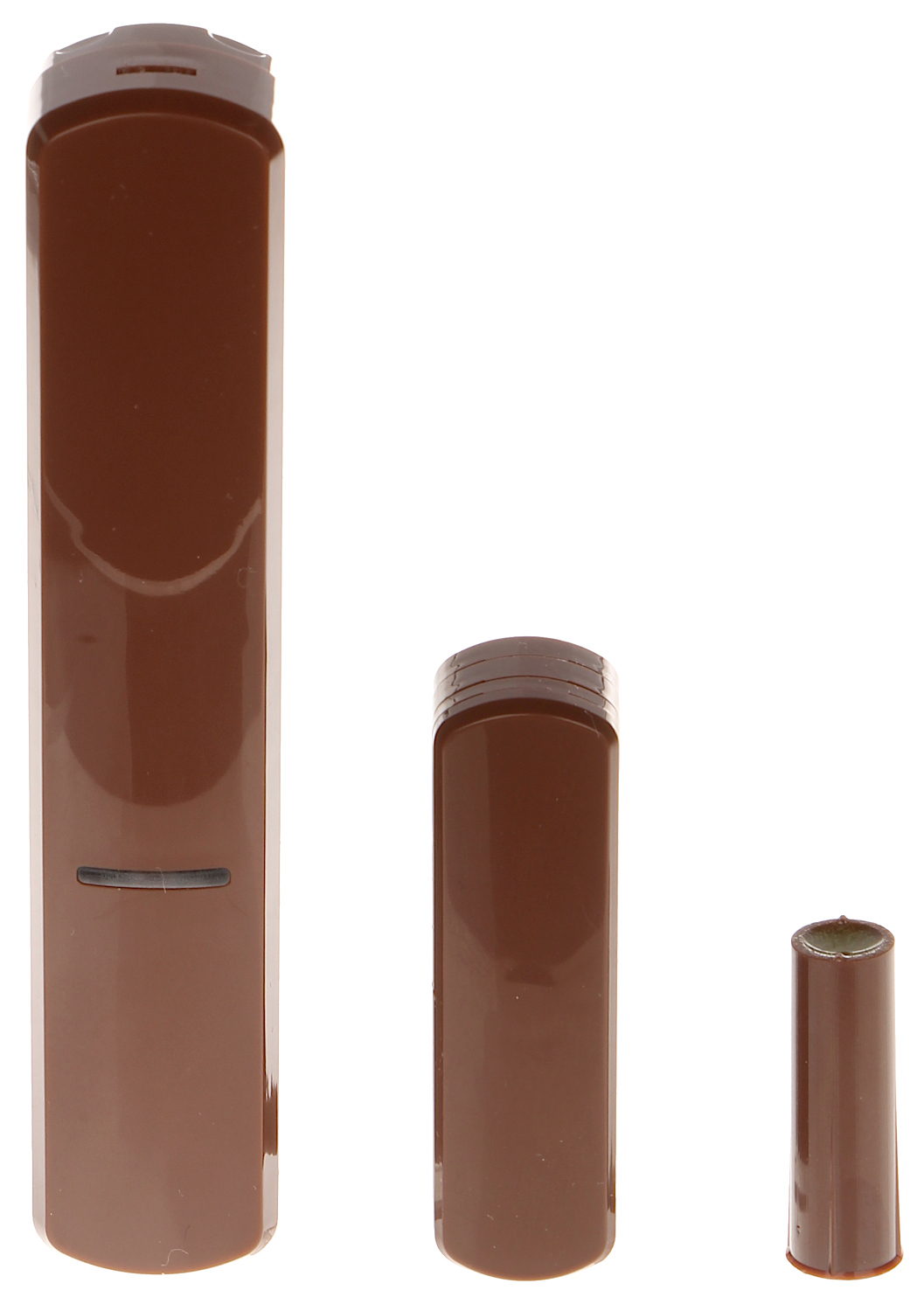

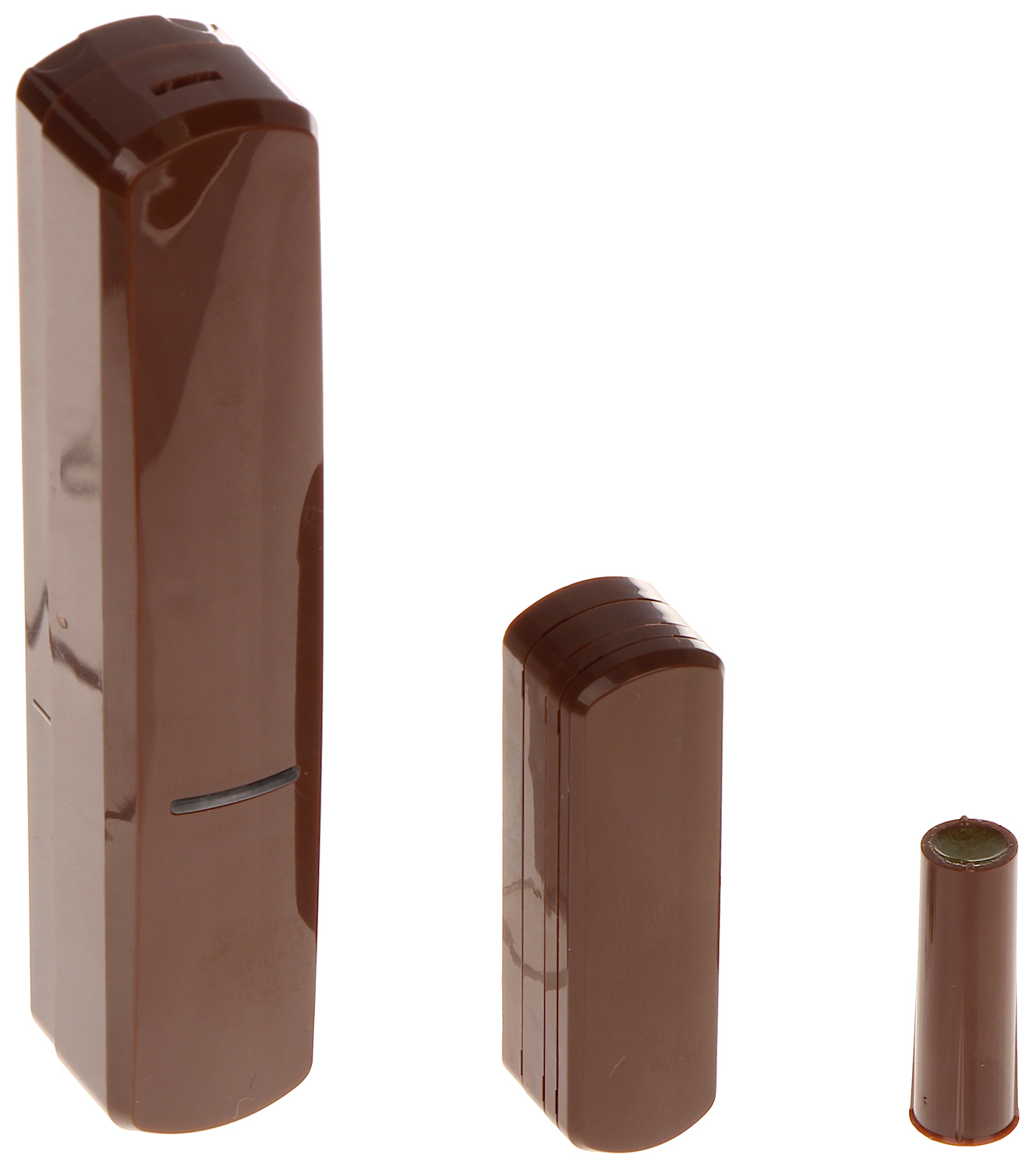

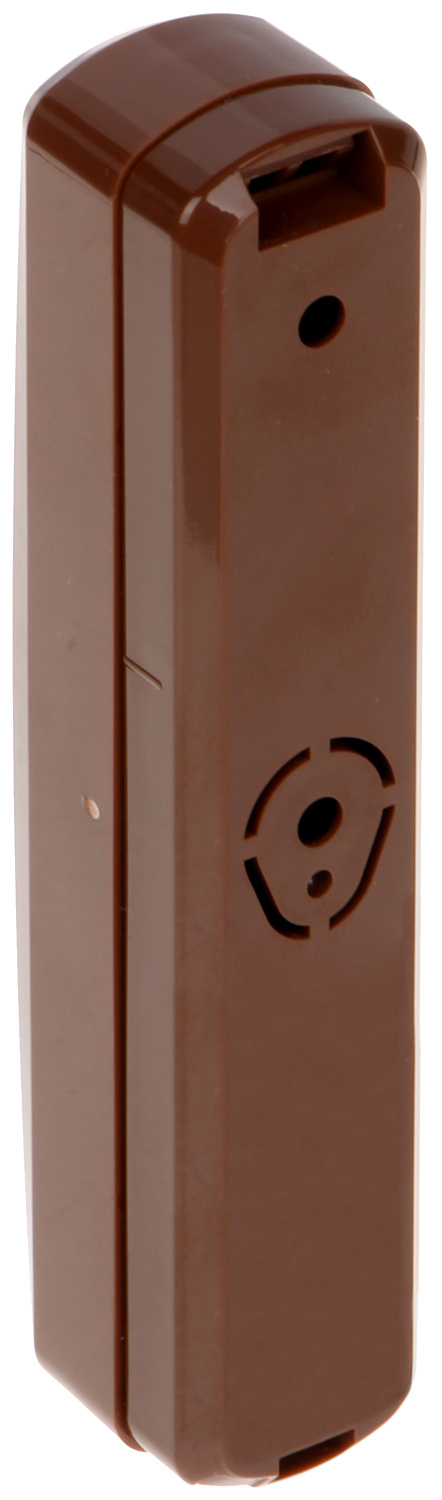

MULTIPURPOSE WIRED DETECTOR XD-2-BR SATEL

28.57
(Включая налог 21%)
XD-2-BR
9 шт.
+
Detection: Opening the door or window, Vibrations, Water ; Alarm signaling: LED indicator, Signal to control panel ; Color: Brown ;
Support: Alarm control panel
Detection: Opening the door or window, Vibrations, Water
Environmental class EN 50130-5: II
Protection class (Grade):
Sensitivity adjustment:
Alarm signaling: LED indicator, Signal to control panel
Relay contacts rating (resistive load): 40 mA / 24 V DC
Power supply: 12 V DC / 14 mA (max)
Main features:
  • Operation modes :
    • Magnetic detector
      - Opening the door or window
      - input for connecting a NC type wired detector
      - 1 Alarm output
    • Shock detector
      - Detection of shocks and vibrations associated with attempts to force a door or window
      - Range : 3 m
      - input for connecting a NC type wired detector
      - 1 Alarm output
    • Shock and magnetic detector
      - Detection of shocks and vibrations associated with attempts to force a door or window
      - Opening the door or window
      - input for connecting a NC type wired detector
      - 2 Alarm outputs
    • Water flood detector - The required FPX-1 probe is available separately
      - detecting the presence of water in spaces where there is a risk of leakage
      - 1 Alarm output
  • Tamper detection - opening the enclosure, removing from mounting surface
  • LED indication
  • Supply voltage control

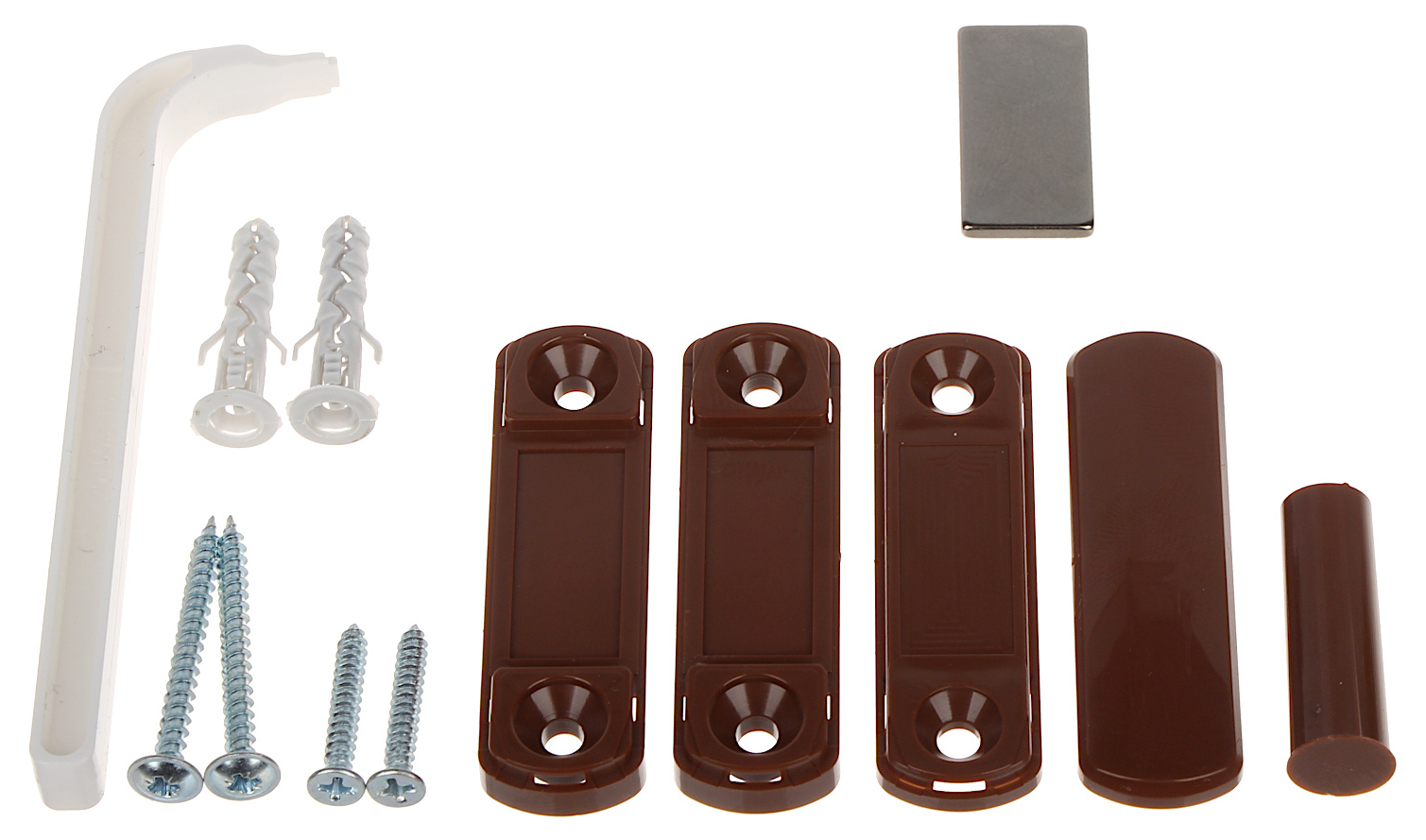

  • 2 magnets included (for surface and flush mounting)
  • Compliance with EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6 standards
  • Color: Brown
    Operation temp: -10 °C ... 55 °C
    Weight: 0.023 kg
    Dimensions:
  • 20  x 102  x 23 mm (detector)
  • Ø 10  x 28 mm ( magnet )
  • Manufacturer / Brand: SATEL
    Guarantee: 2 years
    Brand:
    Satel
