Главная/Сетевые устройства/Switches/PoE-выключатели с до 48 портами/SWITCH POE RG-CS86-48MG4VS2QXS-UPD 48-PORT SFP+ RUIJIE

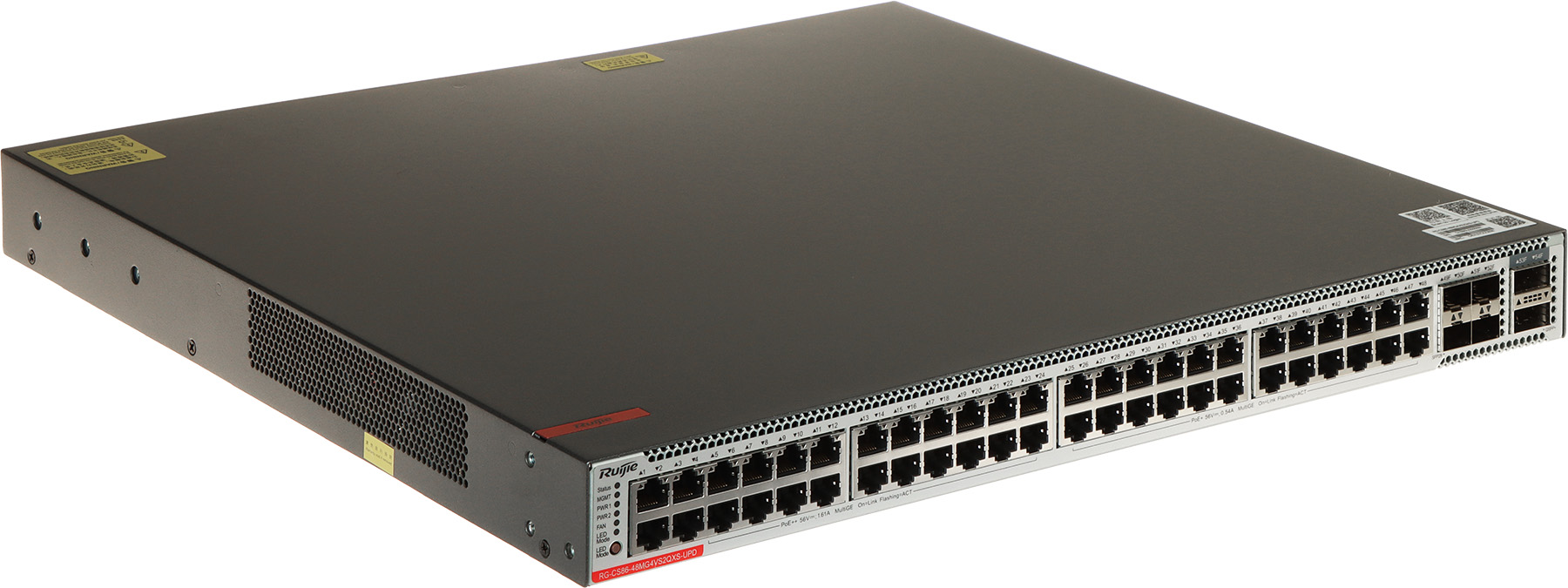

SWITCH POE RG-CS86-48MG4VS2QXS-UPD 48-PORT SFP+ RUIJIE

€3,709.00

(Включая налог 21%)

Задать вопрос

КОД: RG-CS86-48MG4VS2QXS-UPD

Доступность: 2 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 48 x RJ45 100/1000/2.5G/5G Base-T ( 24 x Hi-PoE (802.3af/at/bt) + 24 x PoE (802.3af/at) ), 4 x SFP28 10GE/25GE - Uplink, 2 x QSFP+ 40GE - Uplink, 2 x RJ45 - Configuration possibility from PC, Console, 1 x USB - Configuration possibility from PC ; Transmission speed: 100 / 1000 Mbps, 2.5 / 5 Gbps : 48 LAN & PoE ports, 10 / 25 Gbps : 4 x SFP (Uplink) ports, 40 Gbps : 2 x SFP (Uplink) ports ; Maximal total power: 1600 W ; MAC addresses table: 32k ;

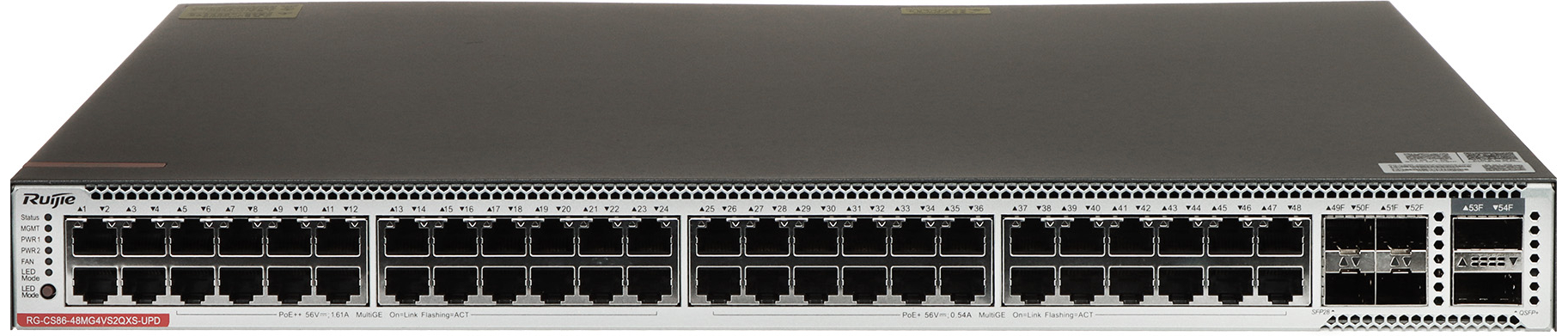

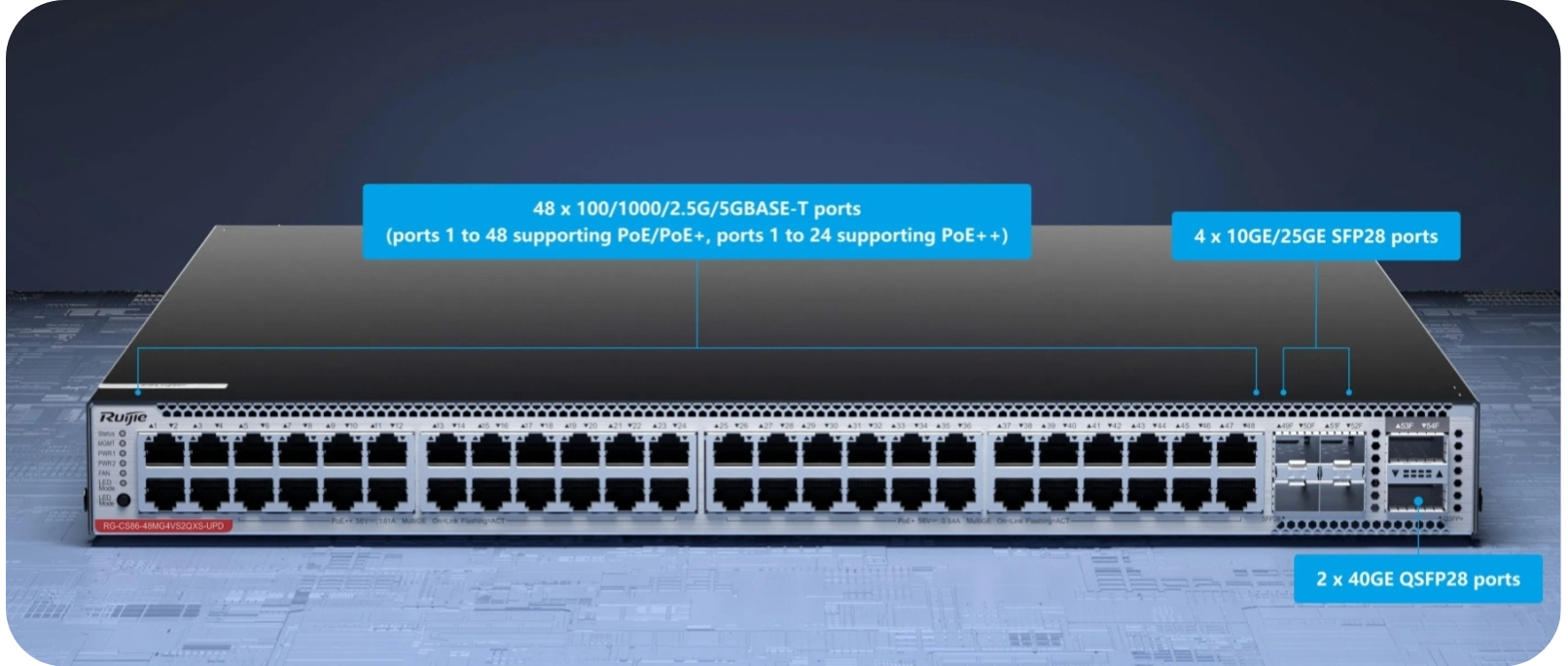

LAN ports:	48 x RJ45 100/1000/2.5G/5G Base-T ( 24 x Hi-PoE (802.3af/at/bt) + 24 x PoE (802.3af/at) ), 4 x SFP28 10GE/25GE - Uplink, 2 x QSFP+ 40GE - Uplink, 2 x RJ45 - Configuration possibility from PC, Console, 1 x USB - Configuration possibility from PC
Management:

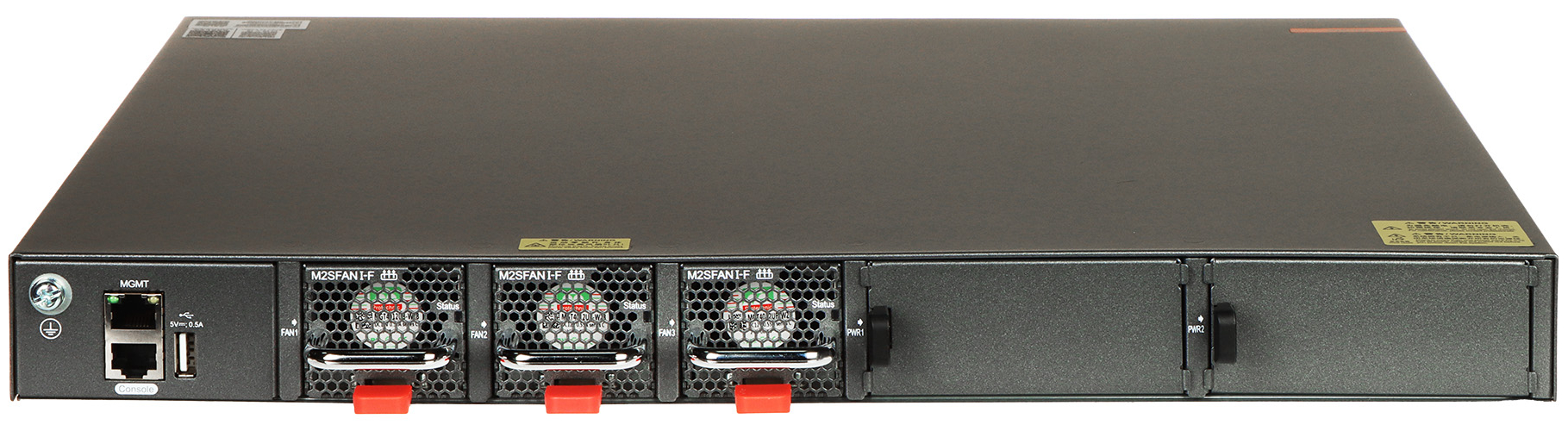

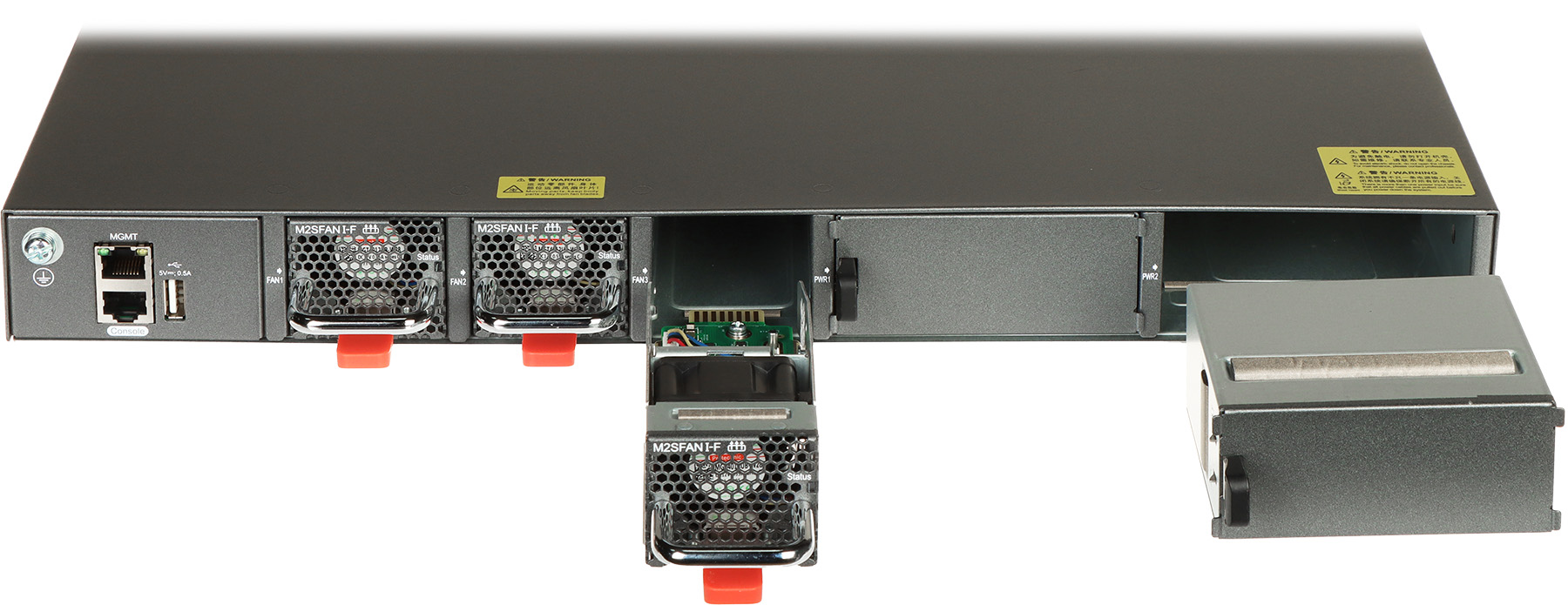

Number of fan coolers:	3 - Intelligent Speed Regulation
LED diodes:	Power 1, Power 2, System, LED mode, Fan - Fan status, MGMT port - Management, 1 ... 48 Link/Act, 49F ... 52F Link/Act, 53F ... 54F Link/Act
Transmission speed:	100 / 1000 Mbps, 2.5 / 5 Gbps : 48 LAN & PoE ports, 10 / 25 Gbps : 4 x SFP (Uplink) ports, 40 Gbps : 2 x SFP (Uplink) ports
Maximal output power:	90 W / port PoE - 1 ... 24 ports 30 W / port PoE - 25 ... 48 ports
Maximal total power:	1420 W @ 100 V ... 130 V AC 1600 W @ 200 V ... 240 V AC
Switching capacity:	840 Gb/s
Forwarding rate:	625 Mpps
MAC addresses table:	32k

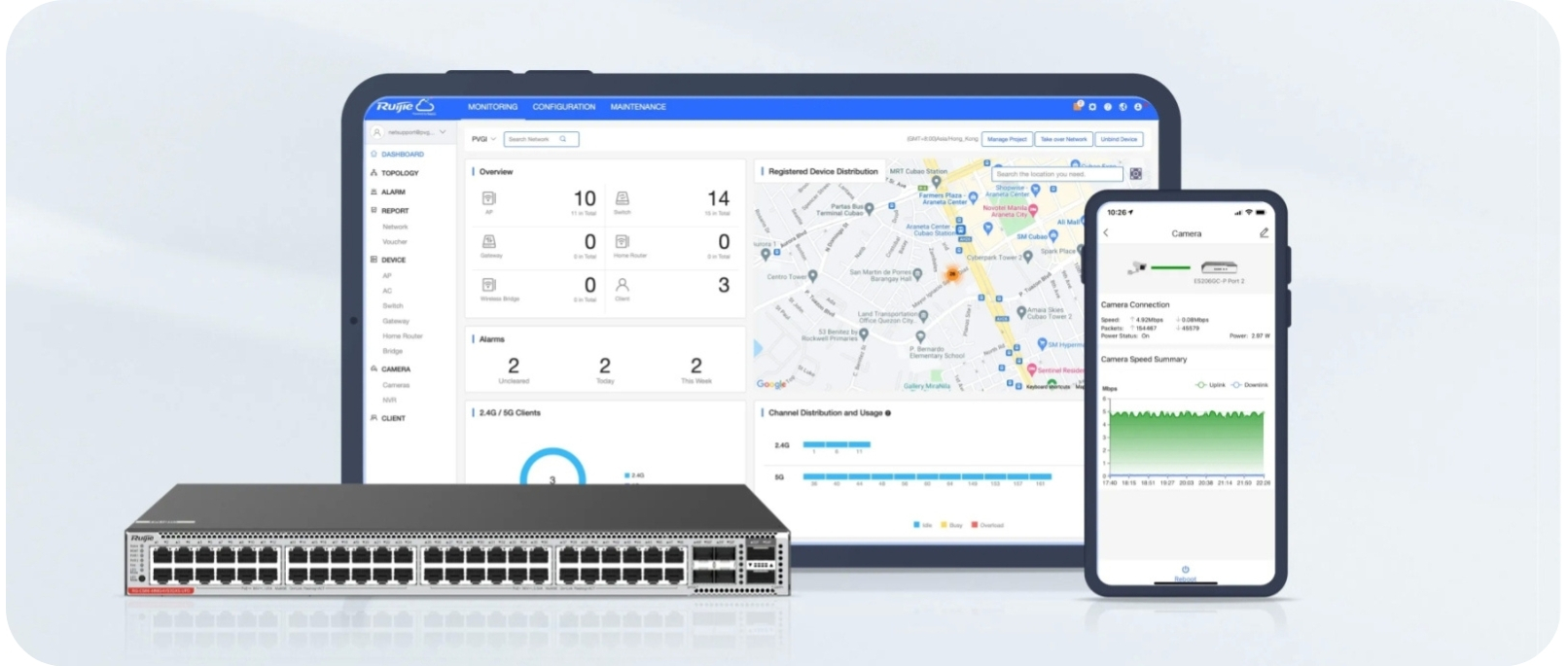

Mobile phones support:	Android: Ruijie Reyee free application iOS (iPhone): Ruijie Reyee free application
Default IP address:	192.168.1.200
Default admin user / password:	admin / admin
Main features:	Switch is managed through the web and the cloud (Ruijie Reyee application) IEEE 802.1Q standard support, up to 4096 VLAN groups and 4K VIDs Spanning Tree STP/RSTP/MSTP Compliance with the LLDP protocol DHCP client, DHCP server, DHCP Relay support DHCP snooping support Static routing IGMP Snooping V1/V2/V3 Quality of Service QoS based on IPP/ToS, DSCP and 802.1p IEEE 802.1x and Radius Authentication CPP NFPP IP-MAC Binding SNMP v1/v2c/v3 IEEE802.3x Flow Control MTBF (Mean Time Between Faults) : 237221 h Can be mounted in a Rack cabinet
Certificates:	CE, UKCA
Protections:	Overvoltage limiter (common/differential) : 6 / 6 kV (power) Overvoltage limiter : 4 kV - MGMT port Overvoltage limiter : 4 kV - Console Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV
Housing:	Rack 19", Metal
Power supply:	max. 2 x Battery Pack : RG-PA600I-P-F / RG-PA1000I-P-F (not included) 100 V ... 130 V AC 200 V ... 240 V AC
Power consumption:	max. 200 W (without PoE) max. 1800 W (PoE, LAN)
Operation temp:	0 °C ... 45 °C
Weight:	6.15 kg
Dimensions:	442 x 450 x 44 mm, RACK 19", 1U
Manufacturer / Brand:	RUIJIE
Guarantee:	3 years
