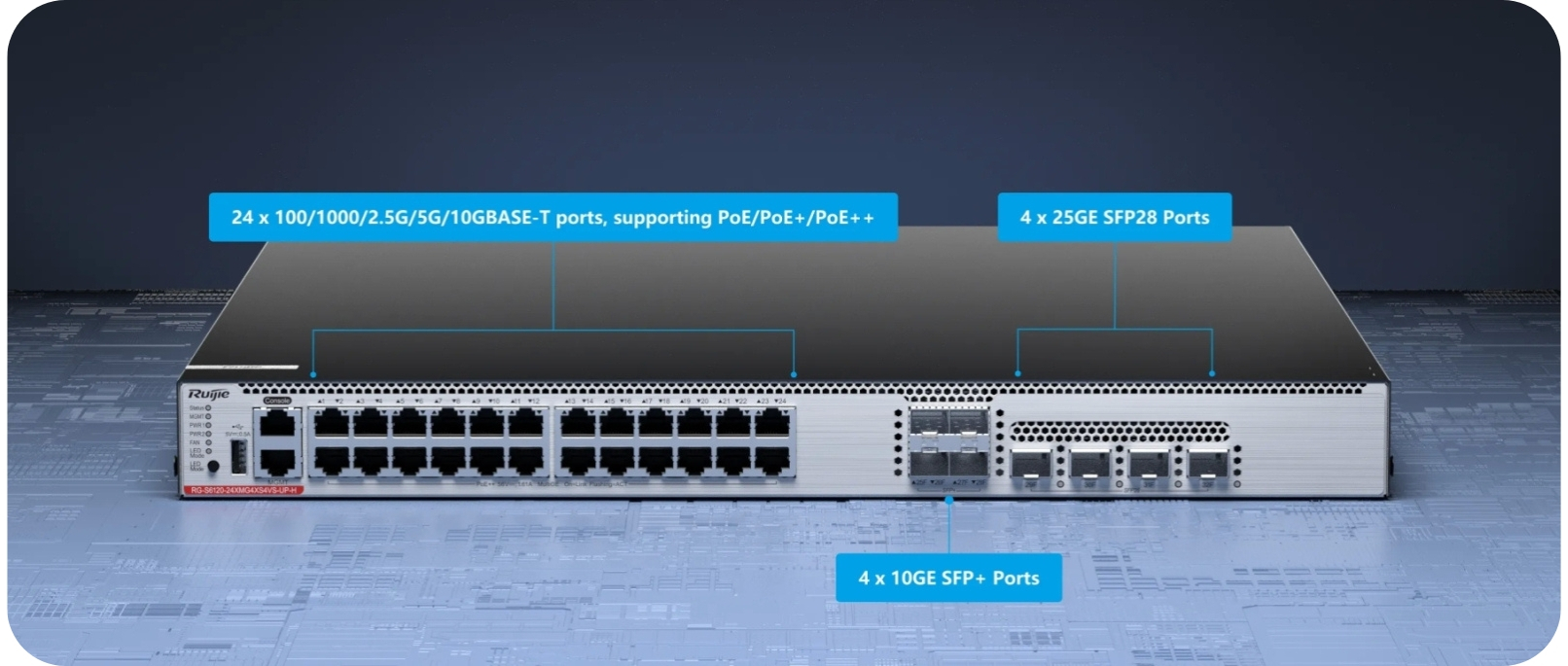

LAN ports: 24 x RJ45 100/1000/2.5G/5G/10G Base-T ( 24 x Hi-PoE (802.3af/at/bt) ), 4 x SFP+ 1GE/10GE - Uplink, 4 x SFP28 10GE/25GE - Uplink, 2 x RJ45 - Configuration possibility from PC, Console, 1 x USB - Configuration possibility from PC ; Transmission speed: 100 / 1000 Mbps, 2.5 / 5 / 10 Gbps : 24 LAN & PoE ports, 1 / 10 Gbps : 4 x SFP (Uplink) ports, 10 / 25 Gbps : 4 x SFP (Uplink) ports ; Maximal total power: 1650 W ; MAC addresses table: 32k ;
| LAN ports: | |
| Management: |  |

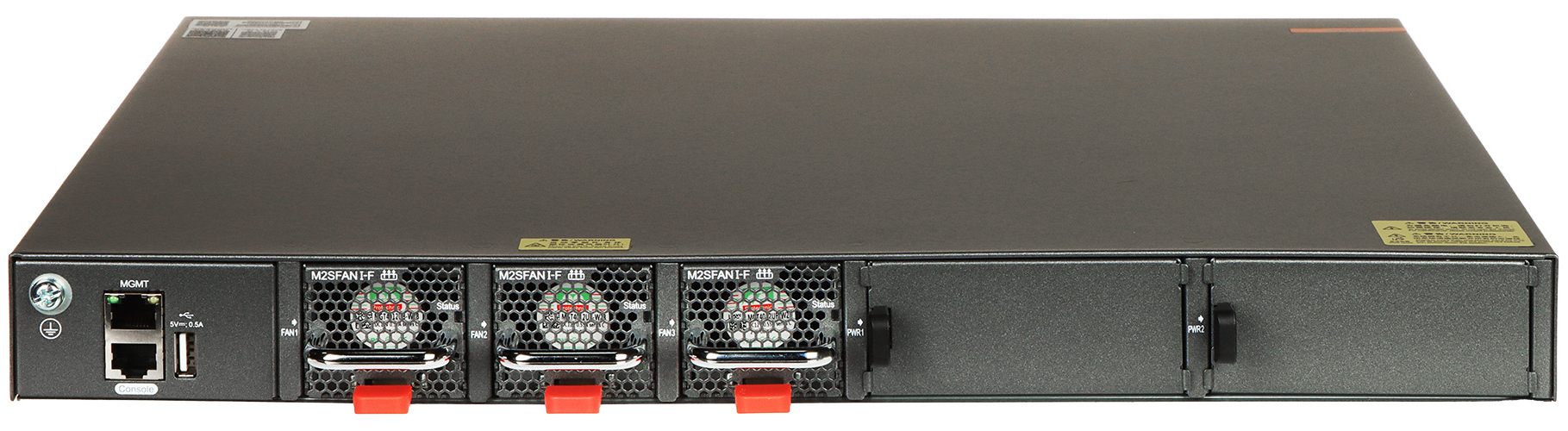

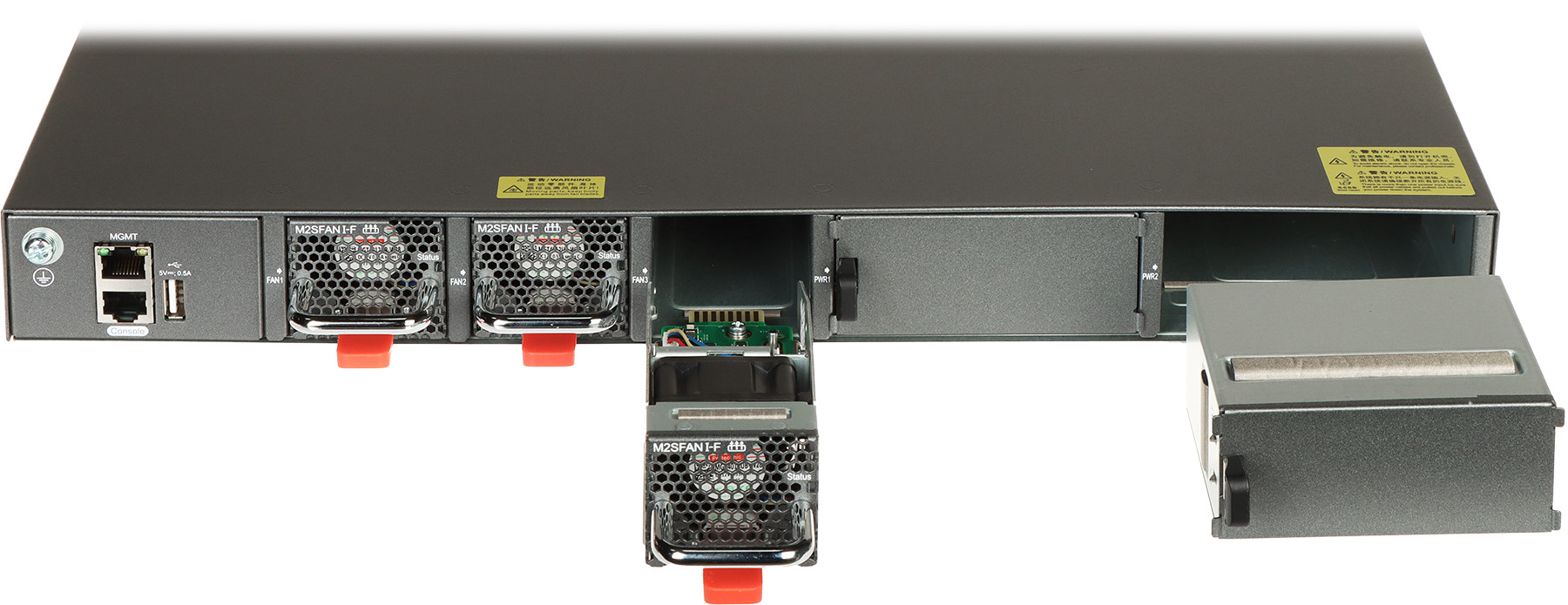

| Number of fan coolers: | 3 - Intelligent Speed Regulation |
| LED diodes: | Power 1, Power 2, System, LED mode, Fan - Fan status, MGMT port - Management, 1 ... 24 Link/Act, 25F ... 28F Link/Act, 29F ... 32F Link/Act |
| Transmission speed: | |
| Maximal output power: | 90 W / port PoE - 1 ... 24 ports |
| Maximal total power: | |
| Switching capacity: | 760 Gb/s |
| Forwarding rate: | 565 Mpps |
| MAC addresses table: | 32k |

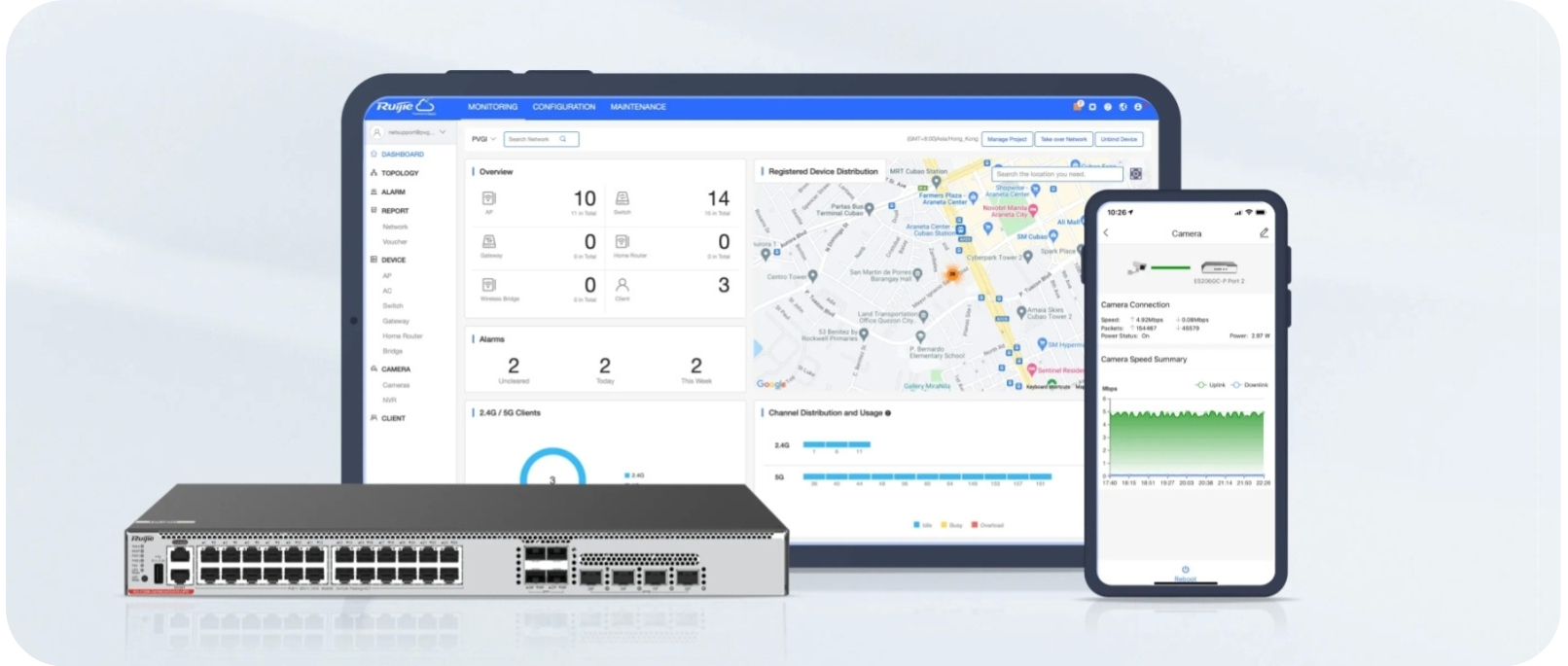

| Mobile phones support: | Android: Ruijie Reyee free application iOS (iPhone): Ruijie Reyee free application |
| Default IP address: | 192.168.1.200 |
| Default admin user / password: | admin / admin |
| Main features: | |
| Certificates: | CE, UKCA |
| Protections: | |
| Housing: | Rack 19", Metal |
| Power supply: | max. 2 x Battery Pack : RG-PA600I-P-F / RG-PA1000I-P-F (not included) |
| Power consumption: | max. 150 W (without PoE) max. 1800 W (PoE, LAN) |
| Operation temp: | 0 °C ... 45 °C |
| Weight: | 8.86 kg |
| Dimensions: | 442 x 450 x 44 mm, RACK 19", 1U |
| Manufacturer / Brand: | RUIJIE |
| Guarantee: | 3 years |
Brand:
Ruijie
