Главная/Сетевые устройства/Switches/PoE-выключатели с до 48 портами/POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-17-11-H 17-PORT ATTE

POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-17-11-H 17-PORT ATTE

€497.15

(Включая налог 21%)

Задать вопрос

КОД: IPUPS-17-11-H

Доступность: 2 шт.

Кол-во:

+ −

Минимальное количество для товара "POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-17-11-H 17-PORT ATTE" 1.

Купить в один клик

Описание
Особенности

LAN ports: 1 x RJ45 10/100 Base-T - Uplink, 17 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE ; Transmission speed: 10 / 100 Mbps : 1 x Uplink port, 10 / 100 Mbps : 17 x LAN & PoE port ; Maximal total power: 130 W ;

LAN ports:	1 x RJ45 10/100 Base-T - Uplink, 17 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management:
LED diodes:	AC, DC, CHARGING (battery charging), PoE
Transmission speed:	10 / 100 Mbps : 1 x Uplink port, 10 / 100 Mbps : 17 x LAN & PoE port
Maximal output power:	40 W @ Passive PoE - LAN1 ... LAN4 ports, 60 W @ Passive PoE - LAN5 port, 30 W @ PoE (802.3af/at) - LAN1 ... LAN5 ports
Maximal total power:	130 W
Operation modes:	Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN6 ports Long Range : 280 m @ 10 Mb/s - LAN1 ... LAN4 ports ; 100 m @ 10/100 Mb/s - LAN5, LAN6 ports

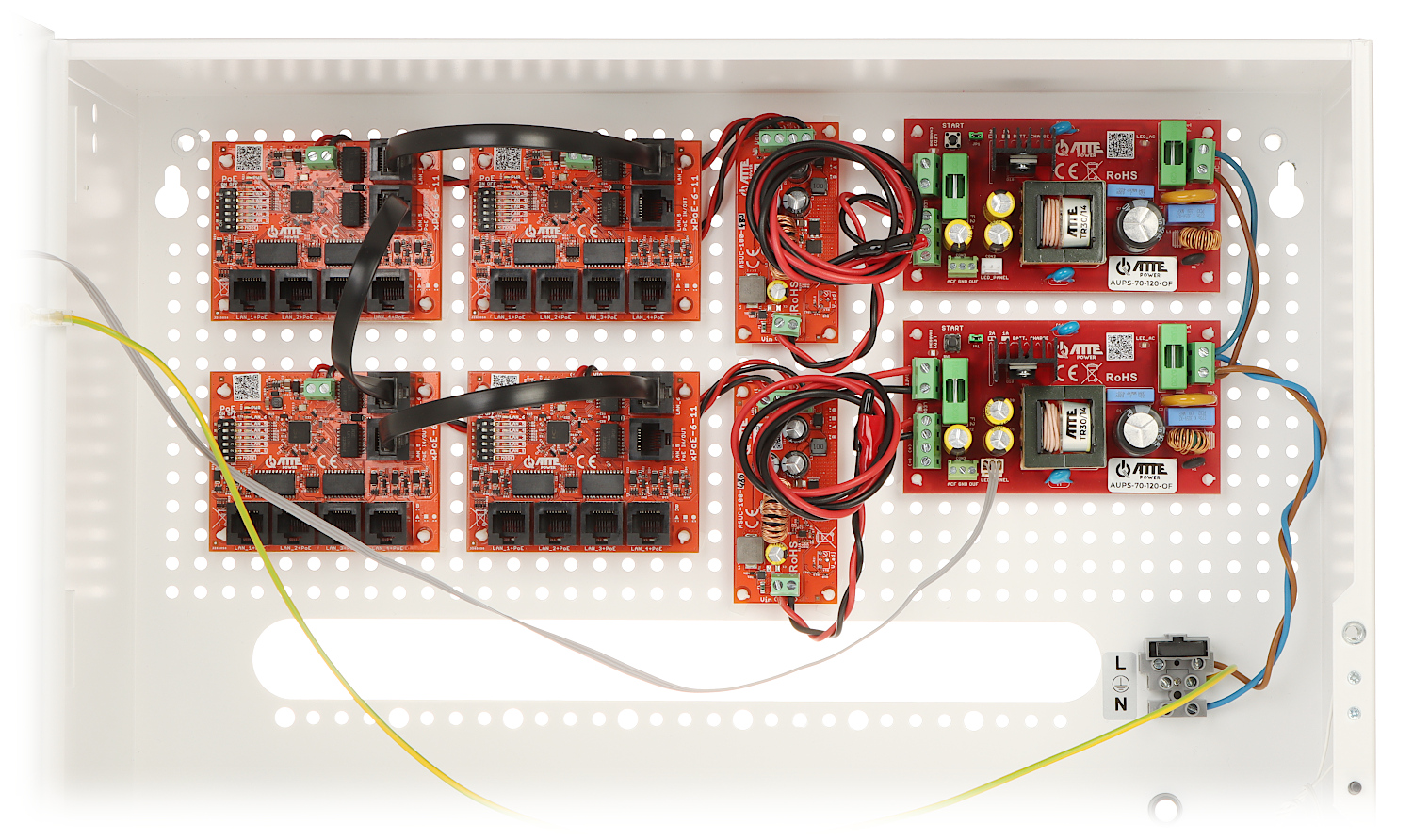

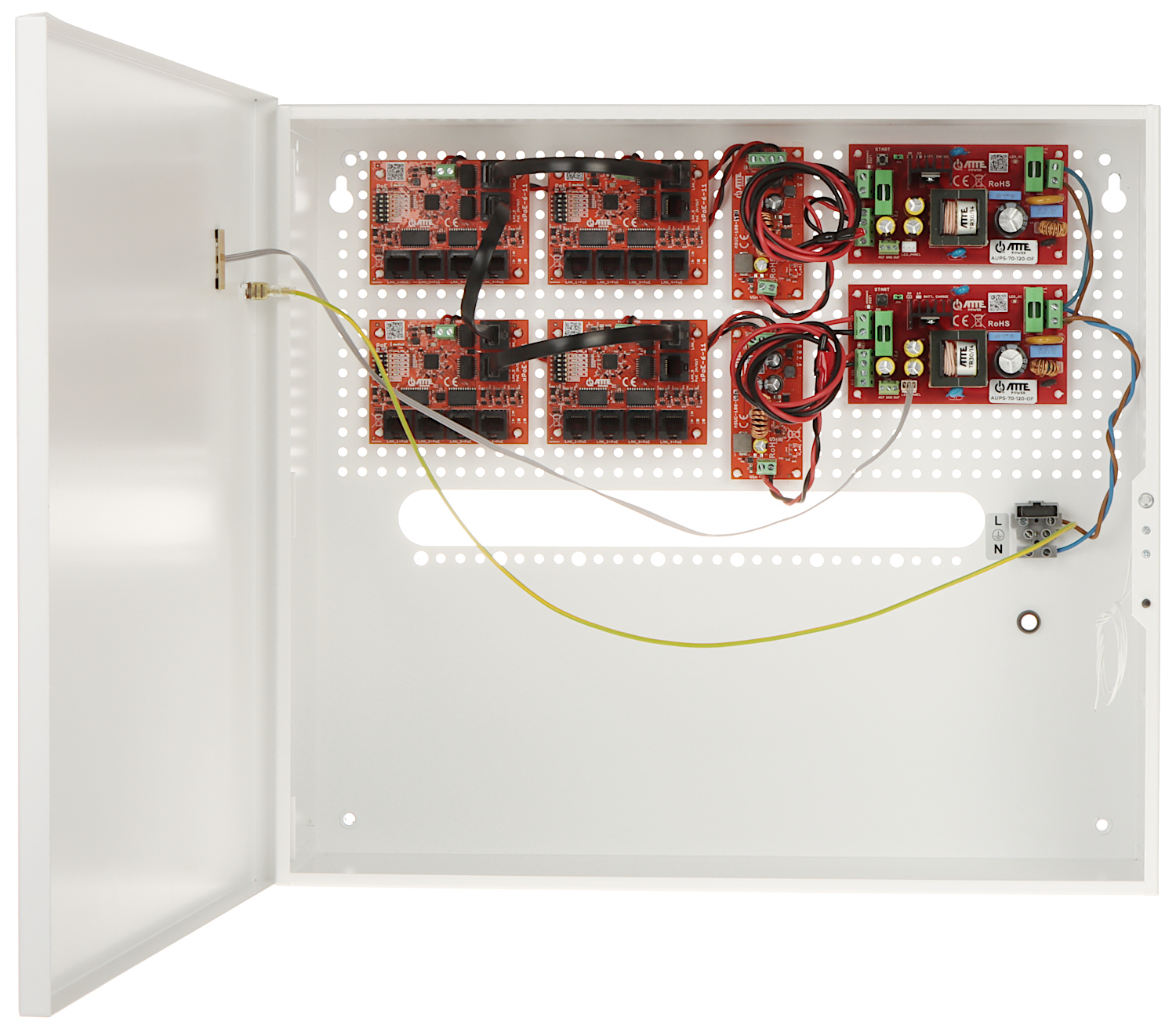

Main features:	The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 17 ports The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules 2 x Place for battery : 12 V / 18 Ah Place for recorder (NVR) Battery charging current : 1 A / 2 A - (set with the JP1 jumper) Battery - Protection against reverse polarity connection, Protection against deep discharge of the battery Technical outputs of the OC type signaling loss of voltage at the PSU output (OUF) and loss of voltage in the 230V mains (ACF) PSU thermal protection : 130 °C Overload protection LAN & PoE ports - Short-circuit protection, Overvoltage TAMPER switch indicating open the cover "Index of Protection" : IP20
Power supply:	190 ... 260 V AC
Weight:	4.70 kg
Dimensions:	455 x 405 x 150 mm
Manufacturer / Brand:	ATTE
Guarantee:	3 years
